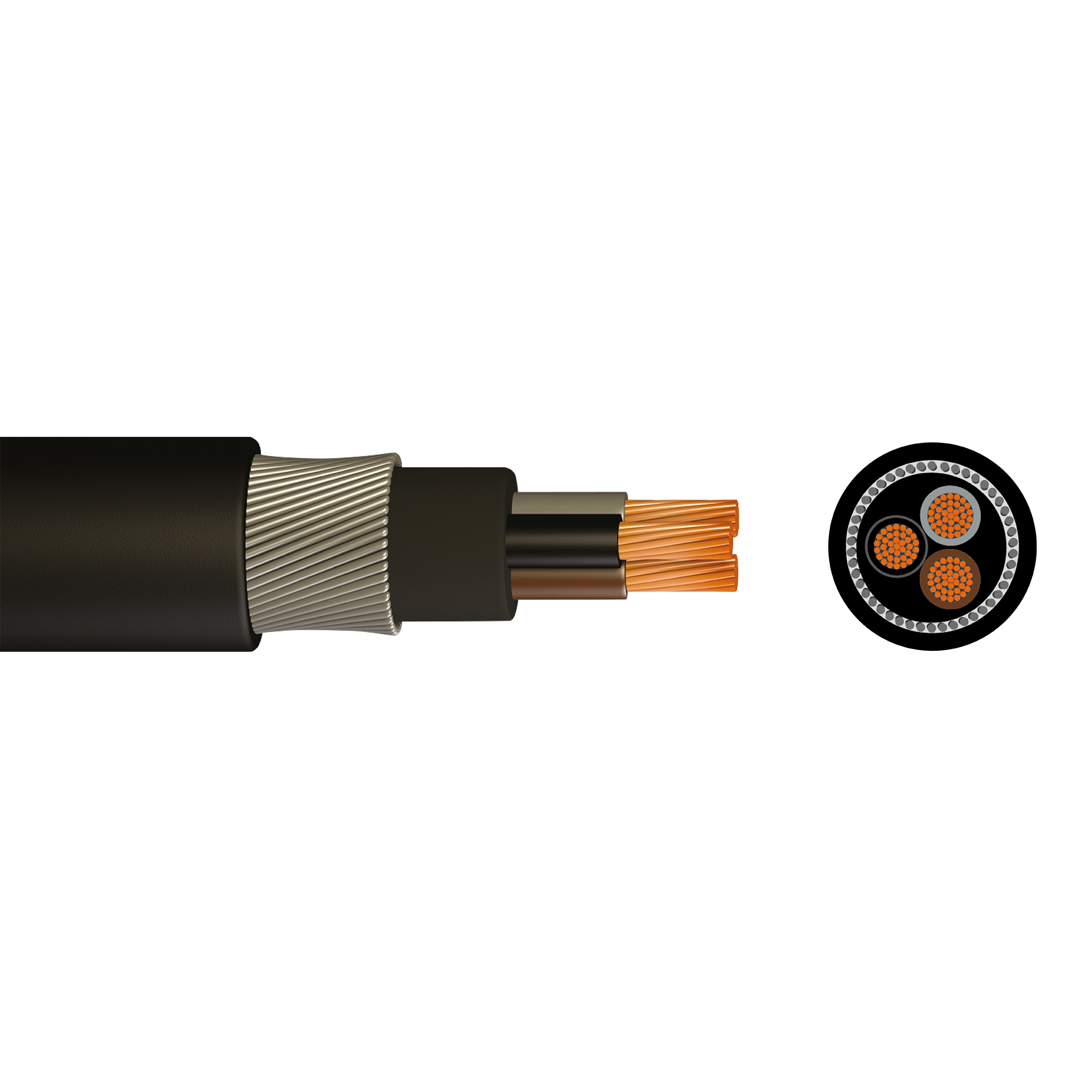

6943X 3 Core Steel Wire Armoured (Black with Brown, Black, Grey) 1.5mm² x 200m - 6943X-Black-2000px.png

6943X 3 Core Steel Wire Armoured (Black with Brown, Black, Grey) 1.5mm² x 200m

SKU:
6943X1.5B200

Product Description


Steel Wire Armoured (SWA) power and auxiliary control cables for use wherever there is risk of mechanical stress or mechanical damage, including underground and outdoors. Suitable for direct burial use as well as surface clipping, trays, baskets, and free air.
  • 1.5mm² Stranded Copper core
  • Rated Voltage: 600/1000 V
  • Usage: Outdoor lights
  • Packaging: Drum
  • Certifications & Standards: BASEC, CE, ISO 9001, UKCA / BS 5467

    • Other Details

    UK Code:
    6943X
    Harmonised Code:
    694-X
    Usage:
    Outdoor lights
    Standards:
    BS 5467
    Certifications:
    BASEC, CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum
    Core Size (mm):
    1.5
    Number of Strands:
    1
    Conductor Class:
    Class 2
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    Yes
    Indoor/Outdoor Usage:
    Indoor/Outdoor
    Insulation Material:
    Cross linked polyethylene (PE)
    Outer Sheath Material:
    Polyvinyl chloride (PVC)
    Filler Material:
    Polyvinyl chloride (PVC)
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    Steel round wire
    Overall Cable Diameter (mm):
    11.5
    Cut Length (m):
    200
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    3 x 1.5
    Diameter of Conductor (mm):
    1.55
    Conductor Cross Section Area (mm²):
    1.5
    Insulation Thickness (mm):
    0.6
    Outer Sheath Thickness (mm):
    0.84
    Net Weight kg per km (kg):
    275
    Outer Sheath Colour:
    Black
    Inner Core Colour(s):
    Brown, Black, Grey
    Minimum Operating Temperature (ºC):
    -20º C
    Maximum Operating Temperature (ºC):
    90º C
    Maximum Short Circuit Temperature (ºC):
    250º C
    AC Test Voltage (kV):
    3.5
    Rated Voltage Uo/U (V):
    600/1000 V
    Conductor DC Resistance at 20ºC:
    12.1 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    N/A
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    27
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    23
    Capacity Ref Method D: 2 cables/single phase AC/DC (A):
    25
    Capacity Ref Method D: 3-4 cables/three phase AC (A):
    21
    Capacity Ref Method E: 2 cables/single phase AC/DC (A):
    29
    Capacity Ref Method E: 3-4 cables/three phase AC (A):
    25
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
