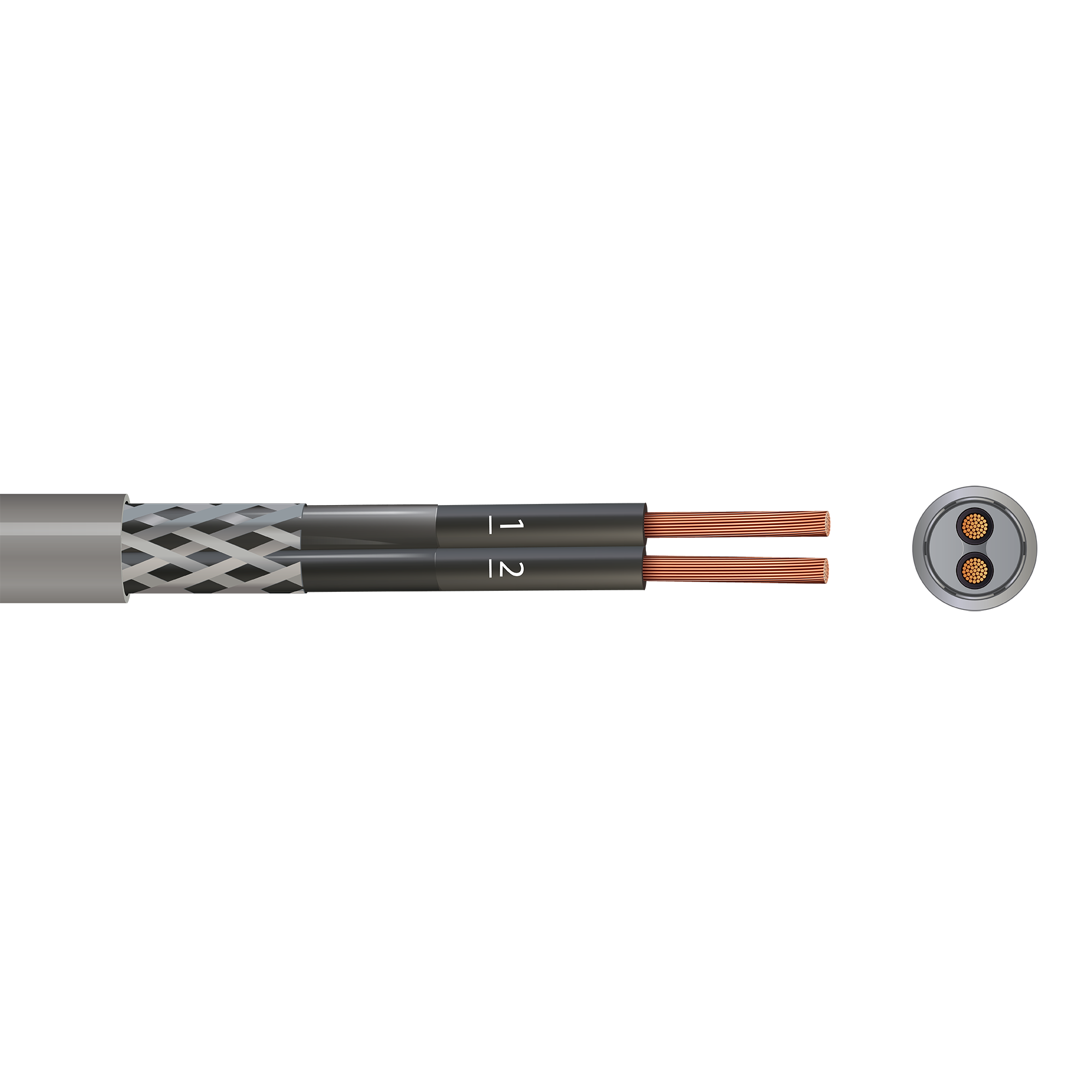

P2CY 2 Core CY Control Flex (Grey with Numbered Black) 1.5mm² x 1m - Control-P2CY-2000px.png

P2CY 2 Core CY Control Flex (Grey with Numbered Black) 1.5mm² x 1m

SKU:
P2CY1.5D1

Product Description


Control cable suitable for measuring and monitoring of machinery in manufacturing, engineering and power stations, in heating or air conditioning, and other electrical systems in dry or damp interiors. These cables with copper screening are ideally suitable for interference free data and signal transmission in measuring and control technology. Tinned copper wire braiding for protection against electrical interference.
  • 1.5mm² Fine-Stranded Copper core
  • Rated Voltage: 300/500 V
  • Usage: Measuring, monitoring and control
  • Packaging: Drum (cardboard and tin)
  • Certifications & Standards: CE, ISO 9001, UKCA / BS EN 50525-2-11

    • Other Details

    UK Code:
    P2CY
    Harmonised Code:
    CY
    Usage:
    Measuring, monitoring and control
    Standards:
    BS EN 50525-2-11
    Certifications:
    CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, cardboard flanges)
    Core Size (mm):
    1.5
    Number of Strands:
    27
    Conductor Type:
    Fine-Stranded Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    Polyvinyl chloride (PVC)
    Outer Sheath Material:
    Polyvinyl chloride (PVC)
    Filler Material:
    Polyvinyl chloride
    Braiding Material:
    Tinned copper wire
    Screen Material:
    Copper
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    8
    Cut Length (m):
    1
    Minimum Bending Radius:
    5 x D
    Nominal Cross Section Area (mm²):
    2 x 1.5
    Diameter of Conductor (mm):
    1.55
    Conductor Cross Section Area (mm²):
    1.5
    Insulation Thickness (mm):
    0.5
    Outer Sheath Thickness (mm):
    0.8
    Net Weight kg per km (kg):
    101
    Outer Sheath Colour:
    Grey
    Inner Core Colour(s):
    Numbered Black
    Minimum Operating Temperature (ºC):
    -15º C
    Maximum Operating Temperature (ºC):
    60º C
    Maximum Short Circuit Temperature (ºC):
    150º C
    AC Test Voltage (kV):
    2
    Rated Voltage Uo/U (V):
    300/500 V
    Conductor DC Resistance at 20ºC:
    13.3 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    Single
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    15
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    24
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
