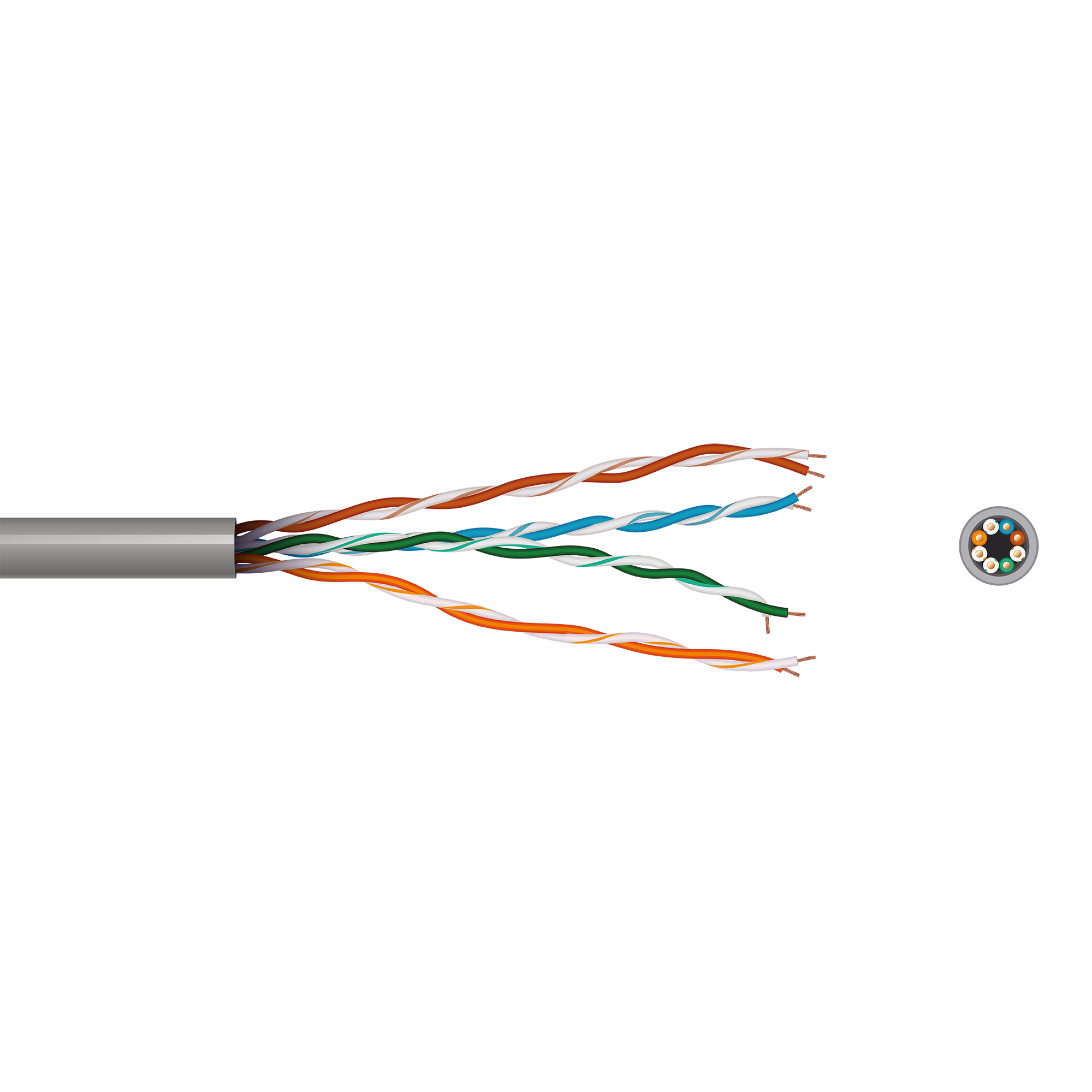

CAT5e UTP PVC Data Cable (Grey) x 305m - Data-CAT5e-PVC-Grey-2000px.png

CAT5e UTP PVC Data Cable (Grey) x 305m

SKU:
CAT5E-PVC305

Product Description


PVC sheath cable with colour coded cores twisted in pairs. For indoor use. Suitable for networking applications.
  • 8 x 0.49mm² Solid Copper core
  • Rated Voltage: 30 V
  • Usage: Networking applications
  • Packaging: Coil in cardboard box
  • Certifications & Standards: CE, ISO 9001, UKCA / TIA/EIA 568C

    • Other Details

    UK Code:
    CAT5e
    Harmonised Code:
    -
    Usage:
    Networking applications
    Standards:
    TIA/EIA 568C
    Certifications:
    CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Coil in cardboard box
    Core Size (mm):
    0.49
    Number of Strands:
    1
    Conductor Type:
    Solid Copper
    Conductor Class:
    Class 6
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    High density polyethylene (HDPE)
    Outer Sheath Material:
    Polyvinyl chloride (PVC)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    5.1
    Cut Length (m):
    305
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    0.19
    Diameter of Conductor (mm):
    0.49
    Insulation Thickness (mm):
    0.2
    Outer Sheath Thickness (mm):
    0.5
    Net Weight kg per km (kg):
    31.03
    Outer Sheath Colour:
    Grey
    Inner Core Colour(s):
    Blue/White, Brown/White, Green/White, Orange/White
    Minimum Operating Temperature (ºC):
    -20º C
    Maximum Operating Temperature (ºC):
    60º C
    Maximum Short Circuit Temperature (ºC):
    100º C
    AC Test Voltage (kV):
    1
    Rated Voltage Uo/U (V):
    30 V
    Conductor DC Resistance at 20ºC:
    ≤9.5Ω/100m
    Bandwidth (MHz):
    100
    POE:
    Yes
    Transmission Rate (Gbit/s):
    1
