CAT6A PoE High Speed UFTP LSZH Data Cable (Yellow) x 305m - Data-CAT6a-LSZH-Yellow-2000px.png

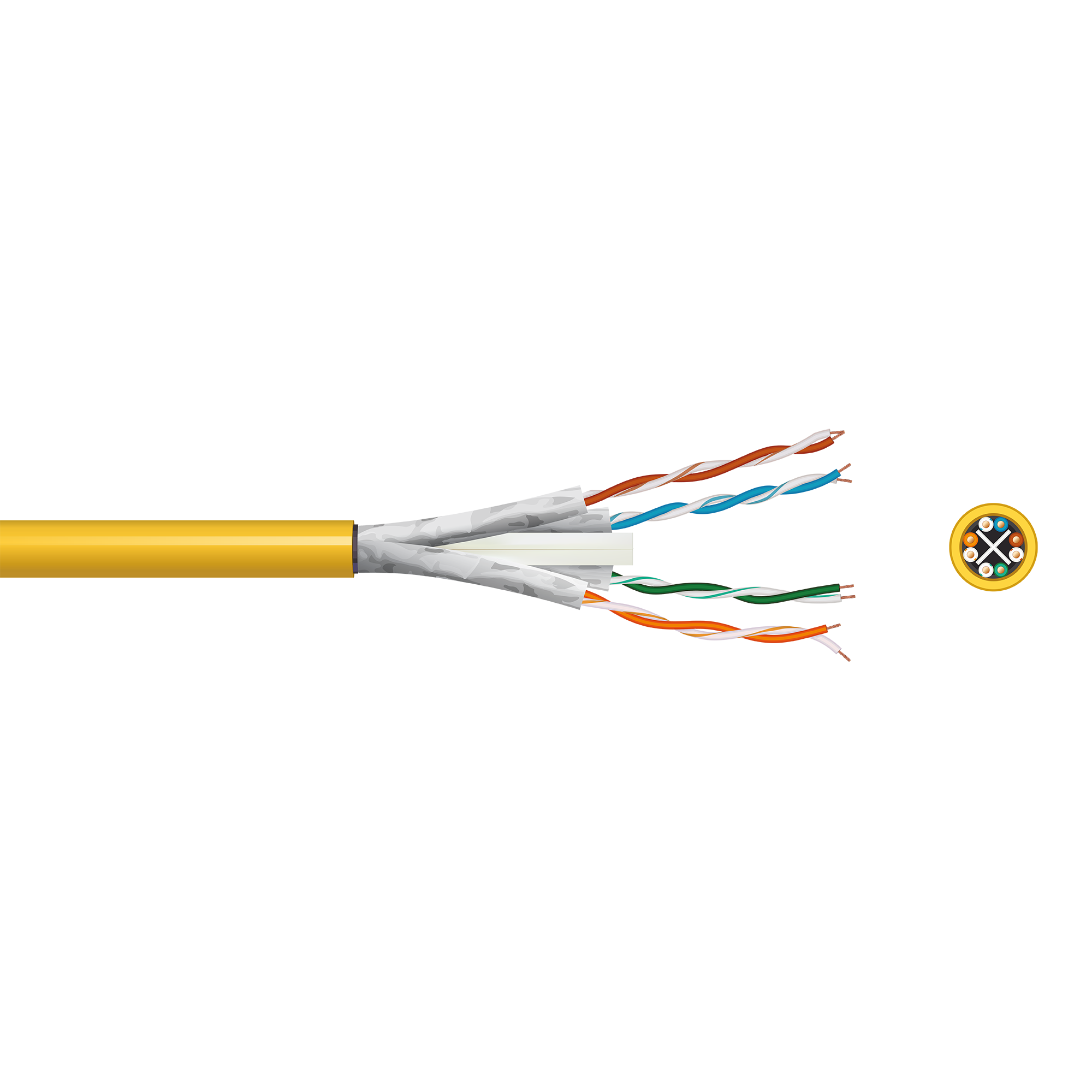

CAT6A PoE High Speed UFTP LSZH Data Cable (Yellow) x 305m

SKU:
CAT6A-LSZH305

Product Description


Low Smoke Zero Halogen CAT6A cables have a bandwidth of 500Mhz and are necessary to support data transmission rates of 10-Gigabit Ethernet. Their larger diameter conductors make them ideal for high power ‘Power over Ethernet’ (PoE) applications.
  • 8 x 0.585mm² Solid Copper core
  • Rated Voltage: 30 V
  • Usage: 10 Giga-bit Ethernet networking applications
  • Packaging: Drum (wood)
  • Certifications & Standards: CE, ISO 9001, UKCA / TIA/EIA 568C, EN 61034, EN 60754-1-2

    • Other Details

    UK Code:
    CAT6A
    Harmonised Code:
    -
    Usage:
    10 Giga-bit Ethernet networking applications
    Standards:
    TIA/EIA 568C, EN 61034, EN 60754-1-2
    Certifications:
    CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (wood)
    Core Size (mm):
    0.585
    Number of Strands:
    16
    Conductor Type:
    Solid Copper
    Conductor Class:
    Class 6
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    Yes
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    High density polyethylene (HDPE)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    7.5
    Cut Length (m):
    305
    Minimum Bending Radius:
    8 x D
    Net Weight kg per km (kg):
    58.5
    Outer Sheath Colour:
    Yellow
    Inner Core Colour(s):
    Blue/White, Brown/White, Green/White, Orange/White
    Minimum Operating Temperature (ºC):
    -20º C
    Maximum Operating Temperature (ºC):
    60º C
    Maximum Short Circuit Temperature (ºC):
    100º C
    AC Test Voltage (kV):
    1
    Rated Voltage Uo/U (V):
    30 V
    Bandwidth (MHz):
    500
    POE:
    Yes
    Transmission Rate (Gbit/s):
    10
