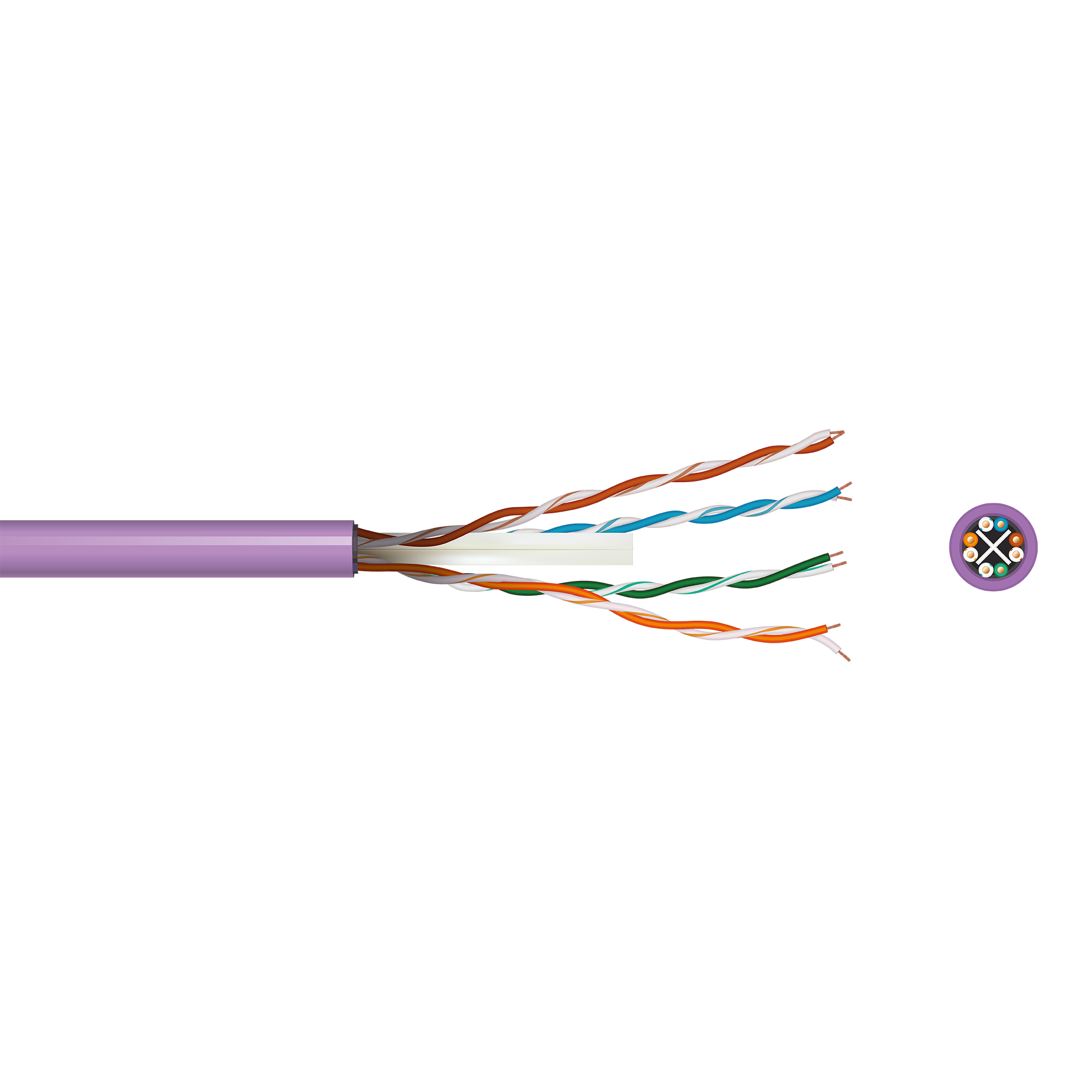

CAT6e High Speed UTP LSZH Data Cable (Purple) x 305m - Data-CAT6e-LSZH-Purple-2000px.png

CAT6e High Speed UTP LSZH Data Cable (Purple) x 305m

SKU:
CAT6-LSZH305

Product Description


Low Smoke Zero Halogen sheath cable with colour coded cores twisted in pairs. For indoor use. Suitable for high speed 10-Gigabit Ethernet networking applications.
  • 8 x 0.55mm² Solid Copper core
  • Rated Voltage: 30 V
  • Usage: 10 Giga-bit Ethernet networking applications
  • Packaging: Coil in box
  • Certifications & Standards: CE, ISO 9001, UKCA / TIA/EIA 568C, EN 61034, EN 60754-1-2

    • Other Details

    UK Code:
    CAT6e
    Harmonised Code:
    -
    Usage:
    10 Giga-bit Ethernet networking applications
    Standards:
    TIA/EIA 568C, EN 61034, EN 60754-1-2
    Certifications:
    CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Coil in box
    Core Size (mm):
    0.55
    Number of Strands:
    16
    Conductor Type:
    Solid Copper
    Conductor Class:
    Class 6
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    Yes
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    High density polyethylene (HDPE)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    6.4
    Cut Length (m):
    305
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    0.24
    Diameter of Conductor (mm):
    0.55
    Insulation Thickness (mm):
    0.22
    Outer Sheath Thickness (mm):
    0.5
    Net Weight kg per km (kg):
    43.66
    Outer Sheath Colour:
    Purple
    Inner Core Colour(s):
    Blue/White, Brown/White, Green/White, Orange/White
    Minimum Operating Temperature (ºC):
    -20º C
    Maximum Operating Temperature (ºC):
    60º C
    Maximum Short Circuit Temperature (ºC):
    100º C
    AC Test Voltage (kV):
    1
    Rated Voltage Uo/U (V):
    30 V
    Conductor DC Resistance at 20ºC:
    ≤9.5Ω/100m
    Bandwidth (MHz):
    250
    POE:
    Yes
    Transmission Rate (Gbit/s):
    10
