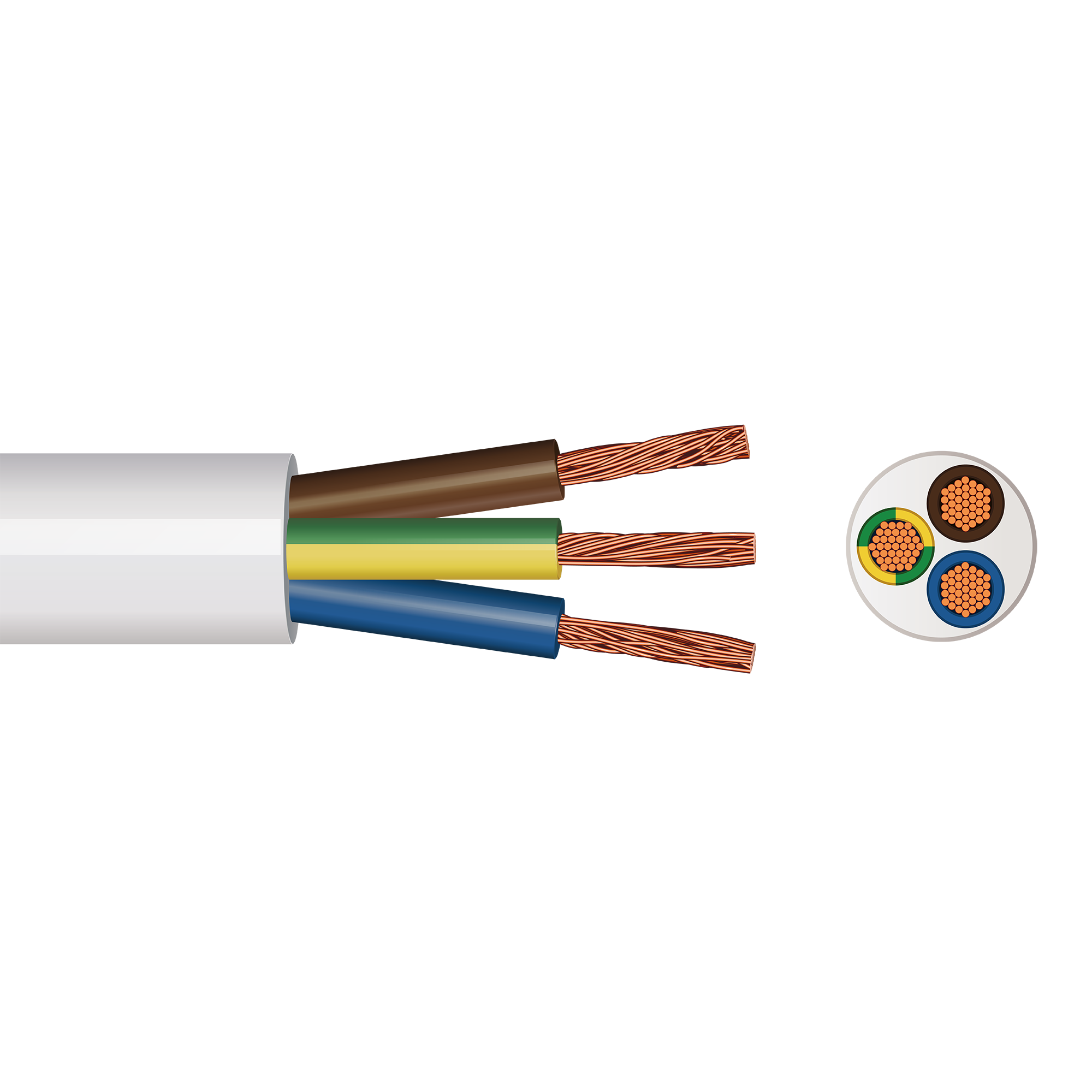

2183Y 3 Core Round Flex (White with Brown, Blue, Green/Yellow) 0.75mm² x 5m - 2183Y-White-2000px.png

2183Y 3 Core Round Flex (White with Brown, Blue, Green/Yellow) 0.75mm² x 5m

SKU:
2183Y0.75W5

Product Description


Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office machines. Fine stranded copper core.
  • 0.75mm² Fine-Stranded Copper core
  • Rated Voltage: 300/300 V
  • Usage: Light duty appliances
  • Packaging: Coil
  • Certifications & Standards: BASEC, CE, HAR, ISO 9001, UKCA / BS EN 50525-2-11

    • Other Details

    UK Code:
    2183Y
    Harmonised Code:
    H03VV-F
    Usage:
    Light duty appliances
    Standards:
    BS EN 50525-2-11
    Certifications:
    BASEC, CE, HAR, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Coil
    Core Size (mm):
    0.75
    Number of Strands:
    24
    Conductor Type:
    Fine-Stranded Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    Polyvinyl chloride (PVC)
    Outer Sheath Material:
    Polyvinyl chloride (PVC)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    5.8
    Cut Length (m):
    5
    Minimum Bending Radius:
    5 x D
    Nominal Cross Section Area (mm²):
    3 x 0.75
    Diameter of Conductor (mm):
    1.15
    Conductor Cross Section Area (mm²):
    0.75
    Insulation Thickness (mm):
    0.5
    Outer Sheath Thickness (mm):
    0.6
    Net Weight kg per km (kg):
    54
    Outer Sheath Colour:
    Black
    Inner Core Colour(s):
    Brown, Blue, Green/Yellow
    Minimum Operating Temperature (ºC):
    -15º C
    Maximum Operating Temperature (ºC):
    70º C
    Maximum Short Circuit Temperature (ºC):
    160º C
    AC Test Voltage (kV):
    1.5
    Rated Voltage Uo/U (V):
    300/300 V
    Conductor DC Resistance at 20ºC:
    26 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    3
    EV Charging:
    N/A
    Number of Phases:
    Single
    Capacity Ref Method A: 2 cables/single phase AC/DC (A):
    6
    Capacity Ref Method A: 3-4 cables/three phase AC (A):
    6
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    7.08
    Capacity Ref Method B: 3-4 cables/three phase AC (A):
    6.9
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    8.16
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    8.1
    Capacity Ref Method E: 2 cables/single phase AC/DC (A):
    9.24
    Capacity Ref Method E: 3-4 cables/three phase AC (A):
    8.7
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat horizontally spaced (A):
    8.94
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat vertically spaced (A):
    8.94
    Capacity Ref Method F: 2 cables/single phase AC/DC flat touching (A):
    9.24
    Capacity Ref Method F: 3 cables/three phase AC flat touching (A):
    8.7
    Capacity Ref Method F: 3 cables/three phase AC trefoil touching (A):
    8.7
    Voltage Drop per A per m: DC or single phase AC (mV/A/m):
    62
    Voltage Drop per A per m: three phase AC (mV/A/m):
    54
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
