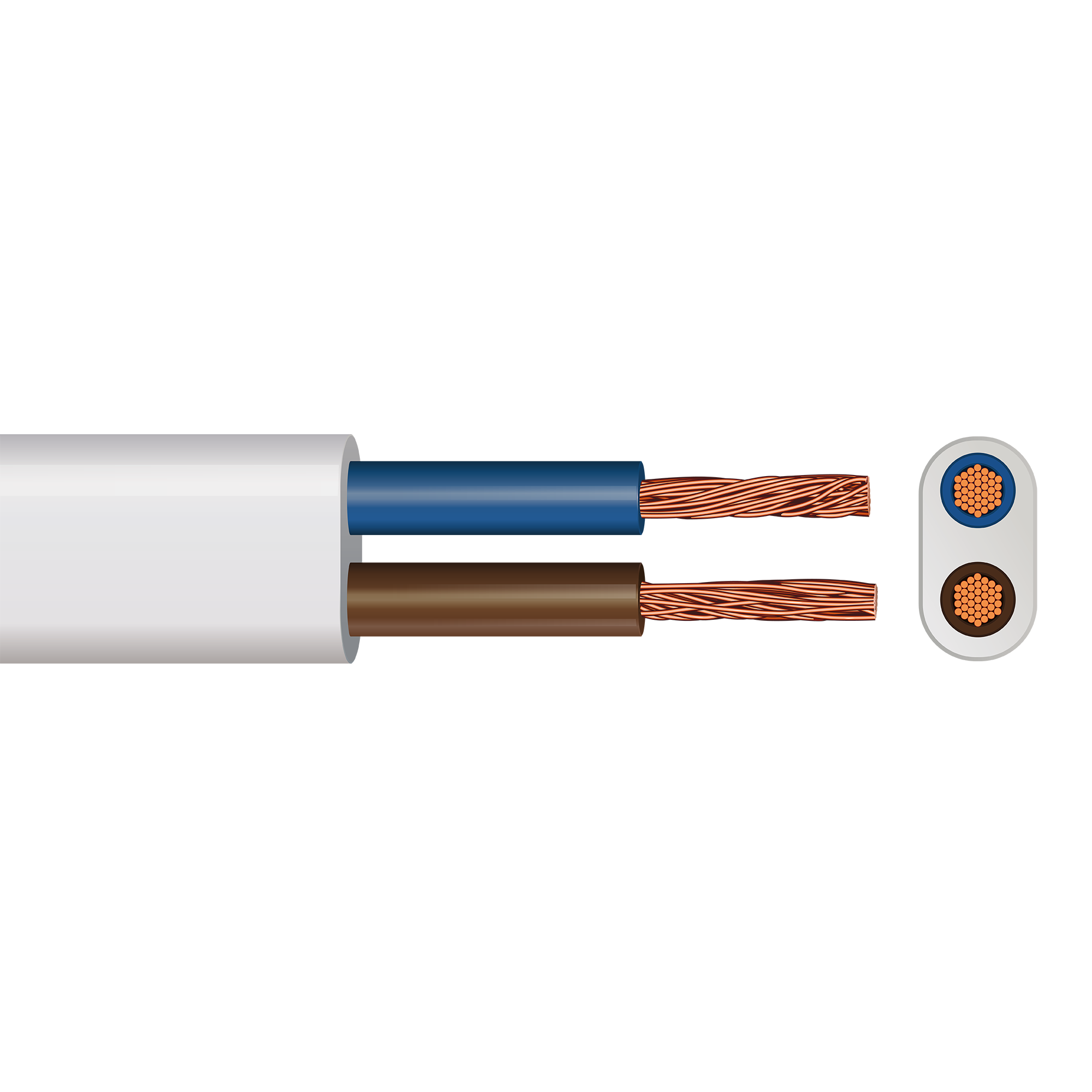

UK Code:
2192Y
Harmonised Code:
H03VVH2-F
Usage:
Class 2 devices
Standards:
BS EN 50525-2-11
Certifications:
BASEC, CE, HAR, ISO 9001, UKCA
Warranty:
12 Months
Packaging Description:
Coil
Core Size (mm):
0.75
Number of Strands:
24
Conductor Type:
Fine-Stranded Copper
Conductor Class:
Class 5
Cable Profile:
Flat
Low Smoke Zero Halogen:
No
Armoured:
No
Indoor/Outdoor Usage:
Indoor
Insulation Material:
Polyvinyl chloride (PVC)
Outer Sheath Material:
Polyvinyl chloride (PVC)
Filler Material:
N/A
Braiding Material:
N/A
Screen Material:
N/A
Armour Material:
N/A
Overall Cable Diameter (mm):
3.35 x 5.5
Cut Length (m):
10
Minimum Bending Radius:
5 x D
Nominal Cross Section Area (mm²):
2 x 0.75
Diameter of Conductor (mm):
1.15
Conductor Cross Section Area (mm²):
0.75
Insulation Thickness (mm):
0.5
Outer Sheath Thickness (mm):
0.6
Net Weight kg per km (kg):
37
Outer Sheath Colour:
White
Inner Core Colour(s):
Brown, Blue
Minimum Operating Temperature (ºC):
-15º C
Maximum Operating Temperature (ºC):
70º C
Maximum Short Circuit Temperature (ºC):
160º C
AC Test Voltage (kV):
1.5
Rated Voltage Uo/U (V):
300/300 V
Conductor DC Resistance at 20ºC:
26 Ω/km
Maximum Mass Supportable - Twin flexible cord (kg):
3
EV Charging:
N/A
Number of Phases:
Single
Capacity Ref Method A: 2 cables/single phase AC/DC (A):
6
Capacity Ref Method A: 3-4 cables/three phase AC (A):
6
Capacity Ref Method C: 2 cables/single phase AC/DC (A):
8.34
Capacity Ref Method C: 3-4 cables/three phase AC (A):
8.34
Capacity Ref Method F: 2 cables/single phase AC/DC flat touching (A):
6.78
Capacity Ref Method F: 3 cables/three phase AC flat touching (A):
6.78
Voltage Drop per A per m: DC or single phase AC (mV/A/m):
61
Voltage Drop per A per m: three phase AC (mV/A/m):
53
Capacity Ref Method 100 (A):
N/A
Capacity Ref Method 101 (A):
N/A
Capacity Ref Method 102 (A):
N/A
Capacity Ref Method 103 (A):
N/A
