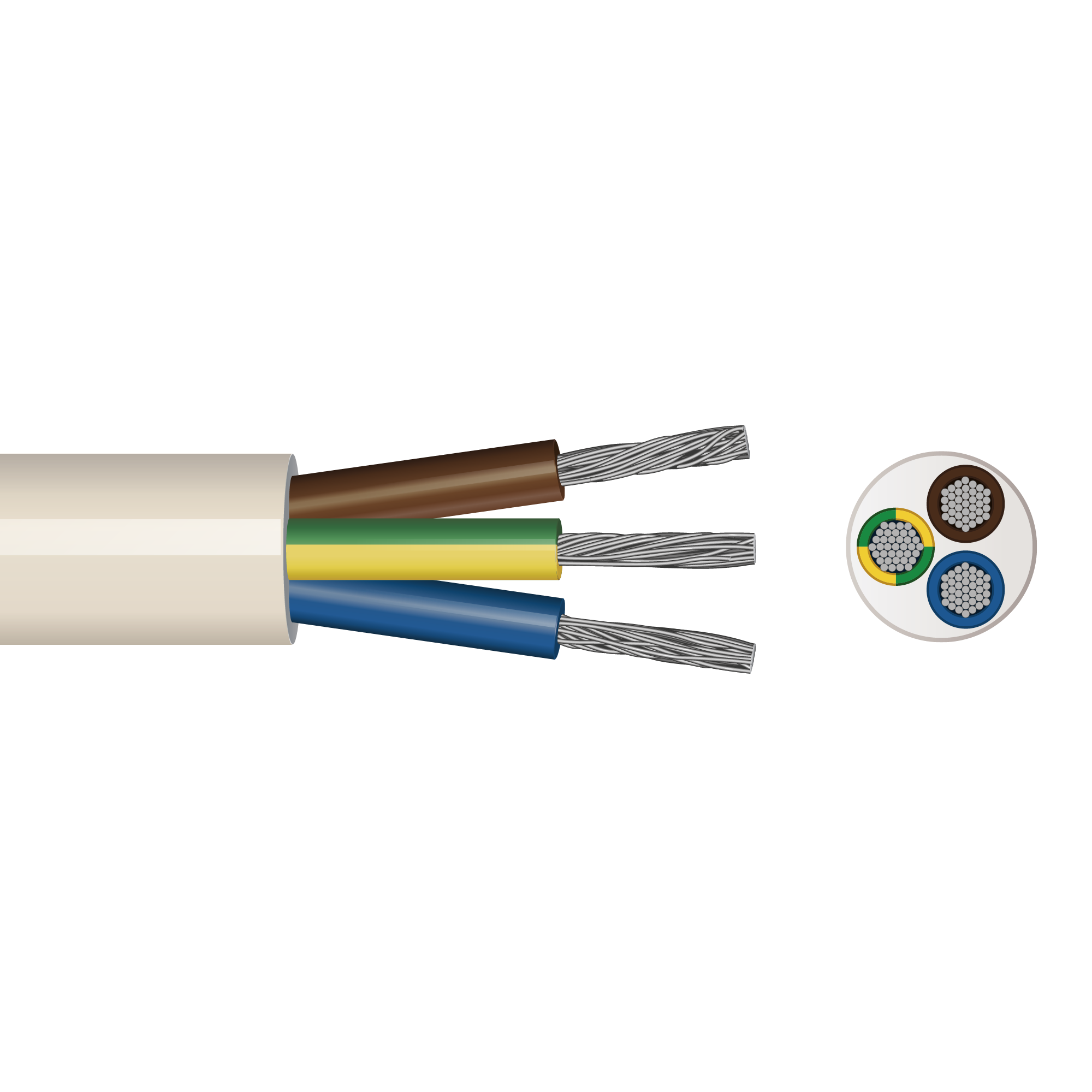

3183TQ 3 Core Heat Resistant Butyl Flex (White with Brown, Blue, Green/Yellow) 1.5mm² x 15m - 3183TQ-Off-White-2000px.png

3183TQ 3 Core Heat Resistant Butyl Flex (White with Brown, Blue, Green/Yellow) 1.5mm² x 15m

SKU:
3183TQ1.5W15

Product Description


Flexible cords suitable for use in domestic premises, kitchens and offces. Also suitable for use in hot situations such as immersion heaters. Tinned copper conductors provide extra resistance to oil and grease.
  • 1.5mm² Fine-Stranded Tinned Copper core
  • Rated Voltage: 300/500 V
  • Usage: Medium duty appliances requiring heat and oil resistance
  • Packaging: Coil
  • Certifications & Standards: CE, HAR, ISO 9001, UKCA / BS EN 50525-2-21

    • Other Details

    UK Code:
    3183TQ
    Harmonised Code:
    H05BN4-F
    Usage:
    Medium duty appliances requiring heat and oil resistance
    Standards:
    BS EN 50525-2-21
    Certifications:
    CE, HAR, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Coil
    Core Size (mm):
    1.5
    Number of Strands:
    30
    Conductor Type:
    Fine-Stranded Tinned Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Outer Sheath Material:
    Butyl rubber (IIR)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    8.75
    Cut Length (m):
    15
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    3 x 1.5
    Diameter of Conductor (mm):
    0.253
    Conductor Cross Section Area (mm²):
    1.5
    Insulation Thickness (mm):
    0.8
    Outer Sheath Thickness (mm):
    1
    Net Weight kg per km (kg):
    130.16
    Outer Sheath Colour:
    White
    Inner Core Colour(s):
    Brown, Blue, Green/Yellow
    Minimum Operating Temperature (ºC):
    -35º C
    Maximum Operating Temperature (ºC):
    90º C
    Maximum Short Circuit Temperature (ºC):
    160º C
    AC Test Voltage (kV):
    2
    Rated Voltage Uo/U (V):
    300/500 V
    Conductor DC Resistance at 20ºC:
    13.3 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    Single
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
