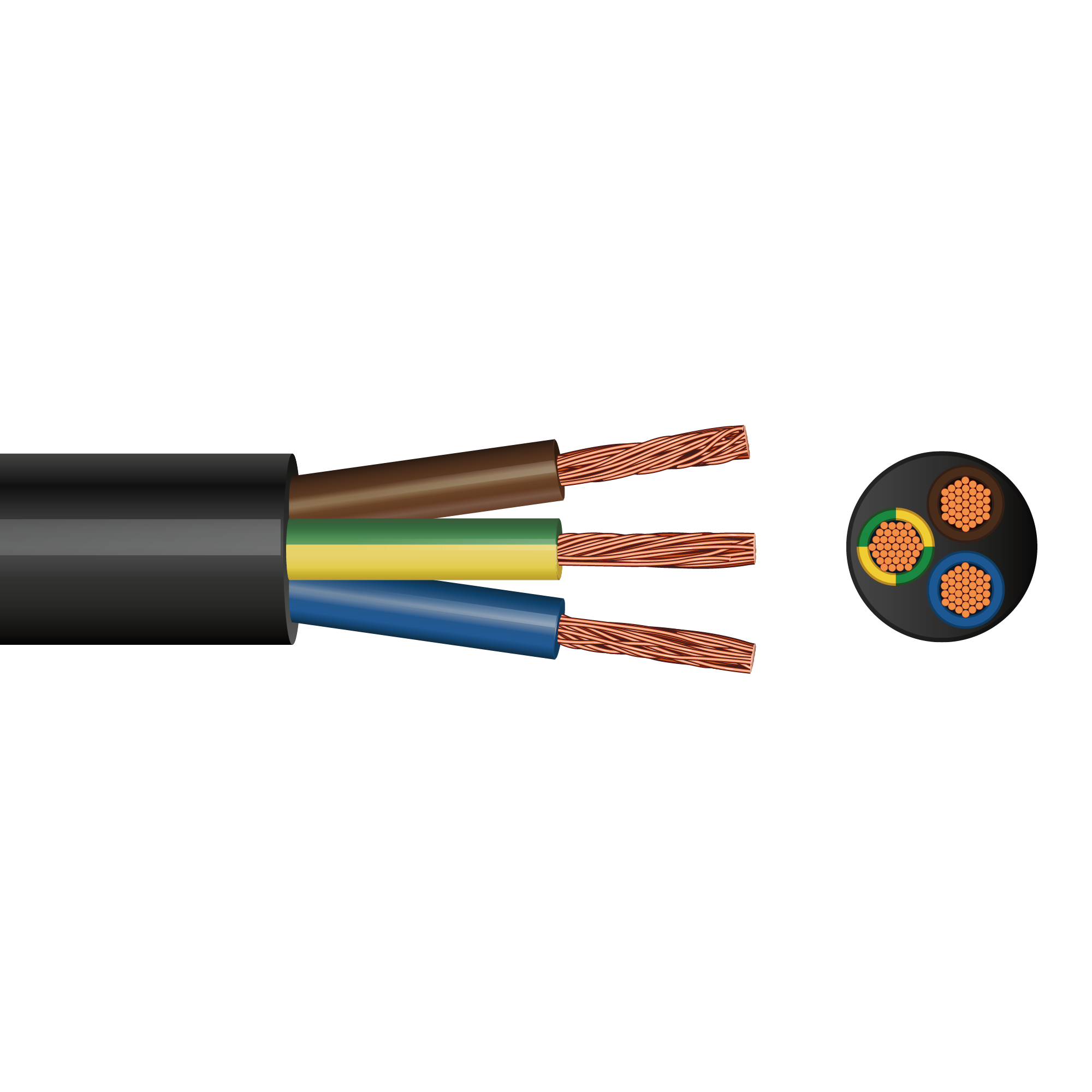

3183TRS 3 Core Rubber Flex (Black with Brown, Blue, Green/Yellow) 1.5mm² x 100m - 3183TRS-Black-2000px.png

3183TRS 3 Core Rubber Flex (Black with Brown, Blue, Green/Yellow) 1.5mm² x 100m

SKU:
3183TRS1.5B100

Product Description


Extra flexible cable for use in household appliances and hand-heldpower tools such as drills. Generally unsuitable for outdoor use or industrial applications.
  • 1.5mm² Fine-Stranded Copper core
  • Rated Voltage: 300/500 V
  • Usage: Medium domestic appliances
  • Packaging: Drum (cardboard and tin)
  • Certifications & Standards: CE, HAR, ISO 9001, UKCA / BS EN 50525-2-21

    • Other Details

    UK Code:
    3183TRS
    Harmonised Code:
    H05RR-F
    Usage:
    Medium domestic appliances
    Standards:
    BS EN 50525-2-21
    Certifications:
    CE, HAR, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, cardboard flanges)
    Core Size (mm):
    1.5
    Number of Strands:
    30
    Conductor Type:
    Fine-Stranded Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor/Outdoor
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    8.75
    Cut Length (m):
    100
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    3 x 1.5
    Diameter of Conductor (mm):
    0.253
    Conductor Cross Section Area (mm²):
    1.5
    Insulation Thickness (mm):
    0.8
    Outer Sheath Thickness (mm):
    1
    Net Weight kg per km (kg):
    121.75
    Outer Sheath Colour:
    Black
    Inner Core Colour(s):
    Brown, Blue, Green/Yellow
    Minimum Operating Temperature (ºC):
    -35º C
    Maximum Operating Temperature (ºC):
    90º C
    Maximum Short Circuit Temperature (ºC):
    160º C
    AC Test Voltage (kV):
    2
    Rated Voltage Uo/U (V):
    300/500 V
    Conductor DC Resistance at 20ºC:
    13.3 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    Single
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
