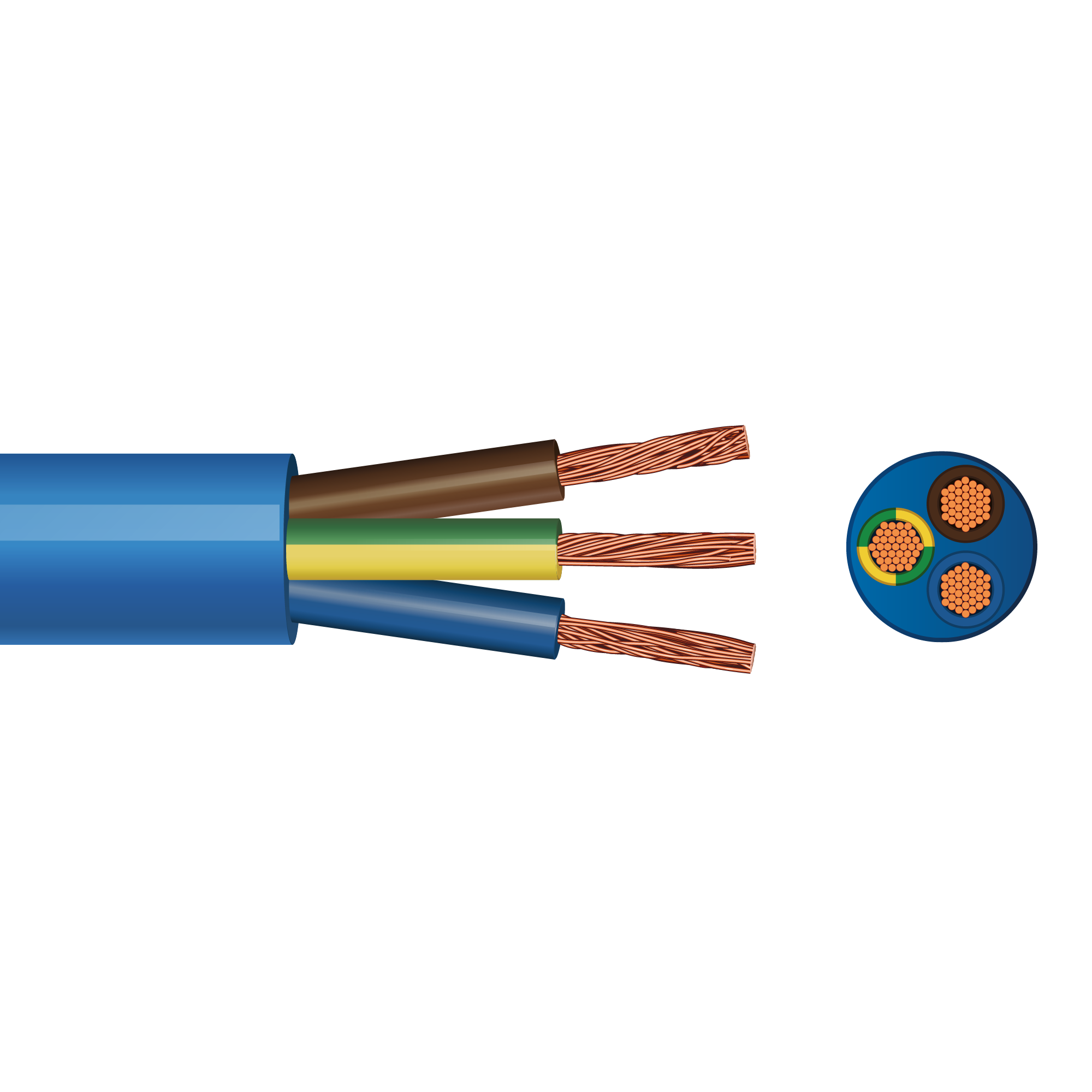

3183YA 3 Core Arctic Flex (Blue with Brown, Blue, Green/Yellow) 2.5mm² x 10m - 3183YA-Blue-2000px.png

3183YA 3 Core Arctic Flex (Blue with Brown, Blue, Green/Yellow) 2.5mm² x 10m

SKU:
3183YA2.5B10

Product Description


Designed to withstand severe external temperatures remaining flexible at temperatures as low as -40°C. Manufactured to BS 7919:2001, making it particularly suitable for outdoor applications and for use where flexibility is required at sub-zero temperatures. At normal temperatures the cable is very limp and flexible, offering some of the characteristics usually found in elastomeric cables. Fine stranded copper core and cold resistant polyvinyl chloride outer sheath.
  • 2.5mm² Fine-Stranded Copper core
  • Rated Voltage: 300/500 V
  • Usage: Caravans and boats
  • Packaging: Coil
  • Certifications & Standards: BASEC, CE, HAR, ISO 9001, UKCA / BS 6004:2012

    • Other Details

    UK Code:
    3183YA
    Harmonised Code:
    A05V3V3-F
    Usage:
    Caravans and boats
    Standards:
    BS 6004:2012
    Certifications:
    BASEC, CE, HAR, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Coil
    Core Size (mm):
    2.5
    Number of Strands:
    45
    Conductor Type:
    Fine-Stranded Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    Cold resistant polyvinyl chloride (PVC)
    Outer Sheath Material:
    Cold resistant polyvinyl chloride (PVC)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    10
    Cut Length (m):
    10
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    3 x 2.5
    Diameter of Conductor (mm):
    2
    Conductor Cross Section Area (mm²):
    2.5
    Insulation Thickness (mm):
    0.8
    Outer Sheath Thickness (mm):
    1.1
    Net Weight kg per km (kg):
    165
    Outer Sheath Colour:
    Blue
    Inner Core Colour(s):
    Brown, Blue, Green/Yellow
    Minimum Operating Temperature (ºC):
    -40º C
    Maximum Operating Temperature (ºC):
    60º C
    Maximum Short Circuit Temperature (ºC):
    160º C
    AC Test Voltage (kV):
    2
    Rated Voltage Uo/U (V):
    300/500 V
    Conductor DC Resistance at 20ºC:
    7.98 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    5
    EV Charging:
    N/A
    Number of Phases:
    Single
    Capacity Ref Method A: 2 cables/single phase AC/DC (A):
    20
    Capacity Ref Method A: 3-4 cables/three phase AC (A):
    18
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    24
    Capacity Ref Method B: 3-4 cables/three phase AC (A):
    21
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    27
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    25
    Capacity Ref Method E: 2 cables/single phase AC/DC (A):
    30.8
    Capacity Ref Method E: 3-4 cables/three phase AC (A):
    26.1
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat horizontally spaced (A):
    36.4
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat vertically spaced (A):
    32.4
    Capacity Ref Method F: 2 cables/single phase AC/DC flat touching (A):
    32.6
    Capacity Ref Method F: 3 cables/three phase AC flat touching (A):
    28.08
    Capacity Ref Method F: 3 cables/three phase AC trefoil touching (A):
    27
    Voltage Drop per A per m: DC or single phase AC (mV/A/m):
    19
    Voltage Drop per A per m: three phase AC (mV/A/m):
    16
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
