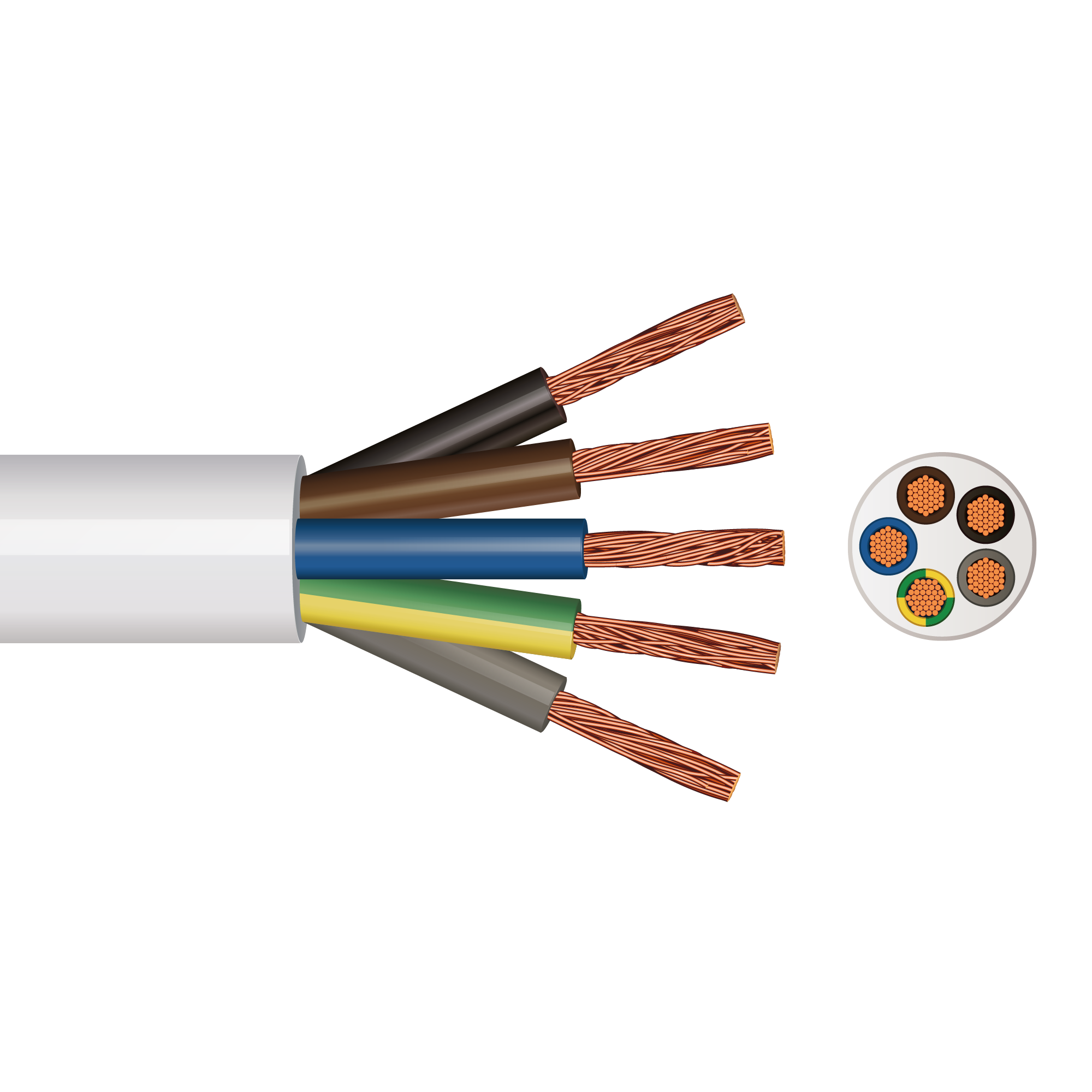

3185B 5 Core Round Flex LSZH (White with Brown, Black, Grey, Blue, Green/Yellow) 1.5mm² x 100m - 3185B-White-2000px.png

3185B 5 Core Round Flex LSZH (White with Brown, Black, Grey, Blue, Green/Yellow) 1.5mm² x 100m

SKU:
3185B1.5W100

Product Description


Low Smoke Zero Halogen (LSZH) cable for use in household appliances such as washing machines, spin dryers and refrigerators. In particular for installation where fire, smoke emission and toxic fumes create a potential threat. Generally unsuitable for outdoor use or industrial applications. Fine stranded copper core.
  • 1.5mm² Fine-Stranded Copper core
  • Rated Voltage: 300/500 V
  • Usage: Household appliances
  • Packaging: Drum (cardboard and tin)
  • Certifications & Standards: BASEC, CE, HAR, ISO 9001, UKCA / BS EN 50525-3-11

    • Other Details

    UK Code:
    3185B
    Harmonised Code:
    H05Z1Z1-F
    Usage:
    Household appliances
    Standards:
    BS EN 50525-3-11
    Certifications:
    BASEC, CE, HAR, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, cardboard flanges)
    Core Size (mm):
    1.5
    Number of Strands:
    27
    Conductor Type:
    Fine-Stranded Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    Yes
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    10.3
    Cut Length (m):
    100
    Minimum Bending Radius:
    5 x D
    Nominal Cross Section Area (mm²):
    5 x 1.5
    Diameter of Conductor (mm):
    1.6
    Conductor Cross Section Area (mm²):
    1.5
    Insulation Thickness (mm):
    0.7
    Outer Sheath Thickness (mm):
    1.1
    Net Weight kg per km (kg):
    170
    Outer Sheath Colour:
    White
    Inner Core Colour(s):
    Brown, Black, Grey, Blue, Green/Yellow
    Minimum Operating Temperature (ºC):
    -15º C
    Maximum Operating Temperature (ºC):
    70º C
    Maximum Short Circuit Temperature (ºC):
    160º C
    AC Test Voltage (kV):
    2
    Rated Voltage Uo/U (V):
    300/500 V
    Conductor DC Resistance at 20ºC:
    13.3 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    5
    EV Charging:
    N/A
    Number of Phases:
    Single
    Capacity Ref Method A: 2 cables/single phase AC/DC (A):
    14.5
    Capacity Ref Method A: 3-4 cables/three phase AC (A):
    13.5
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    17.5
    Capacity Ref Method B: 3-4 cables/three phase AC (A):
    15.5
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    20
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    18
    Capacity Ref Method E: 2 cables/single phase AC/DC (A):
    22.33
    Capacity Ref Method E: 3-4 cables/three phase AC (A):
    19.575
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat horizontally spaced (A):
    24.57
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat vertically spaced (A):
    23.49
    Capacity Ref Method F: 2 cables/single phase AC/DC flat touching (A):
    23.635
    Capacity Ref Method F: 3 cables/three phase AC flat touching (A):
    21.06
    Capacity Ref Method F: 3 cables/three phase AC trefoil touching (A):
    20.25
    Voltage Drop per A per m: DC or single phase AC (mV/A/m):
    62
    Voltage Drop per A per m: three phase AC (mV/A/m):
    54
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
