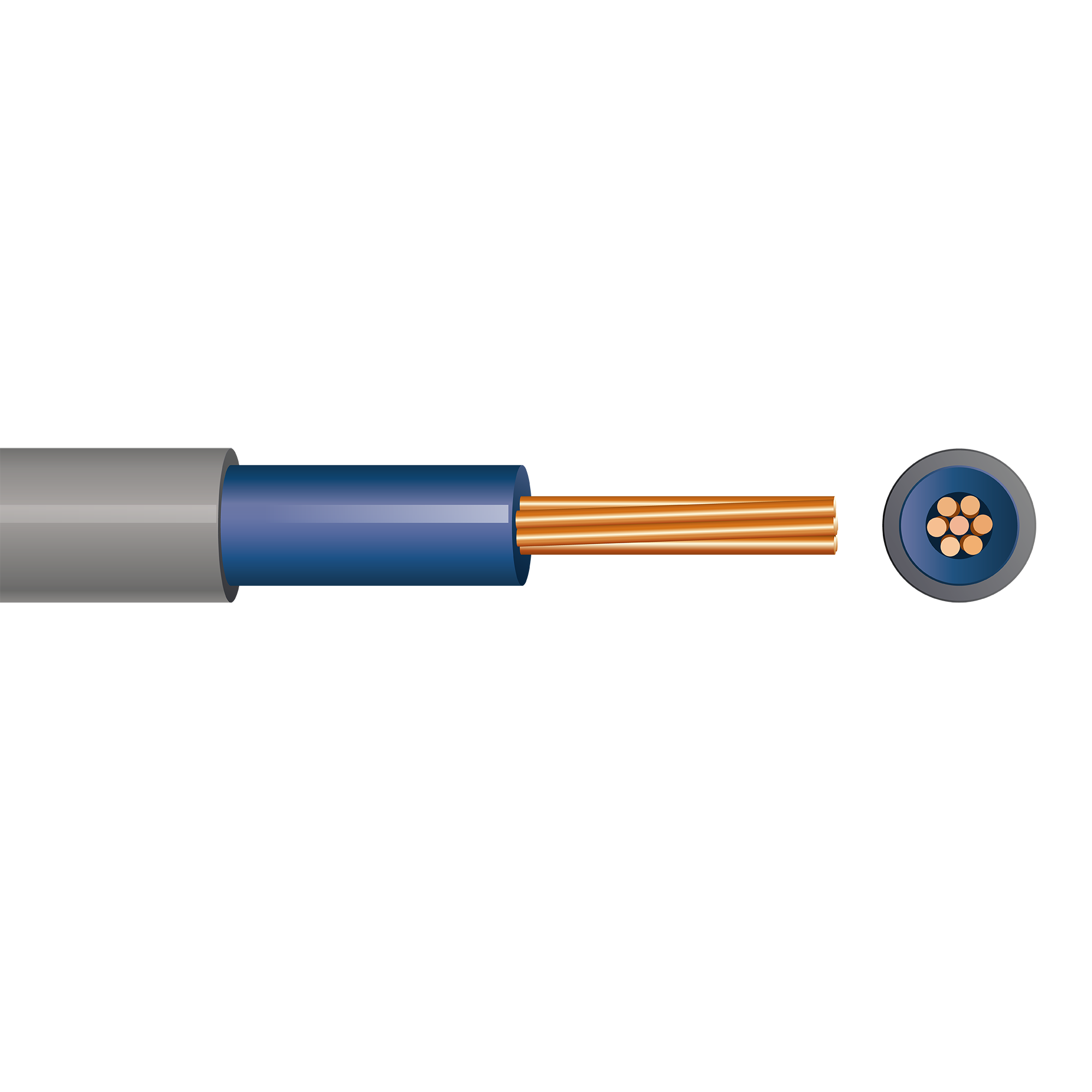

6181B Double Insulated LSZH (Grey with Blue) 25mm² x 100m - 6181B-Grey-Blue-2000px.png

6181B Double Insulated LSZH (Grey with Blue) 25mm² x 100m

SKU:
6181B25BL100

Product Description


Low Smoke Zero Halogen (LSZH) cable for use in installations where smoke and acid gas emission would pose a major hazard in the event of a fire. Designed for use in light industrial and domestic wiring. These cables are intended for fixed installation in dry or damp premises and can be installed in conduit, in cable trunking and in cable ducting. They can be clipped direct, on cable trays, embedded or in free air, but are not intended to be laid underground.
  • 25mm² Stranded Copper core
  • Rated Voltage: 450/750 V
  • Usage: Consumer units
  • Packaging: Drum (wood and tin)
  • Certifications & Standards: BASEC, CE, ISO 9001, UKCA / BS 7211:2012

    • Other Details

    UK Code:
    6181B
    Harmonised Code:
    -
    Usage:
    Consumer units
    Standards:
    BS 7211:2012
    Certifications:
    BASEC, CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, wooden flanges)
    Core Size (mm):
    25
    Number of Strands:
    7
    Conductor Type:
    Stranded Copper
    Conductor Class:
    Class 2
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    Yes
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    Cross linked polyethylene (PE)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    9.5
    Cut Length (m):
    100
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    25
    Diameter of Conductor (mm):
    5.85
    Conductor Cross Section Area (mm²):
    25
    Insulation Thickness (mm):
    0.9
    Outer Sheath Thickness (mm):
    0.75
    Net Weight kg per km (kg):
    270
    Outer Sheath Colour:
    Grey
    Inner Core Colour(s):
    Blue
    Minimum Operating Temperature (ºC):
    -15º C
    Maximum Operating Temperature (ºC):
    90º C
    Maximum Short Circuit Temperature (ºC):
    250º C
    AC Test Voltage (kV):
    2.5
    Rated Voltage Uo/U (V):
    450/750 V
    Conductor DC Resistance at 20ºC:
    0.727 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    N/A
    Capacity Ref Method A: 2 cables/single phase AC/DC (A):
    106
    Capacity Ref Method A: 3-4 cables/three phase AC (A):
    95
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    133
    Capacity Ref Method B: 3-4 cables/three phase AC (A):
    117
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    143
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    130
    Capacity Ref Method D: 2 cables/single phase AC/DC (A):
    -
    Capacity Ref Method D: 3-4 cables/three phase AC (A):
    -
    Capacity Ref Method E: 2 cables/single phase AC/DC (A):
    -
    Capacity Ref Method E: 3-4 cables/three phase AC (A):
    -
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat horizontally spaced (A):
    182
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat vertically spaced (A):
    161
    Capacity Ref Method F: 2 cables/single phase AC/DC flat touching (A):
    161
    Capacity Ref Method F: 3 cables/three phase AC flat touching (A):
    141
    Capacity Ref Method F: 3 cables/three phase AC trefoil touching (A):
    135
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
