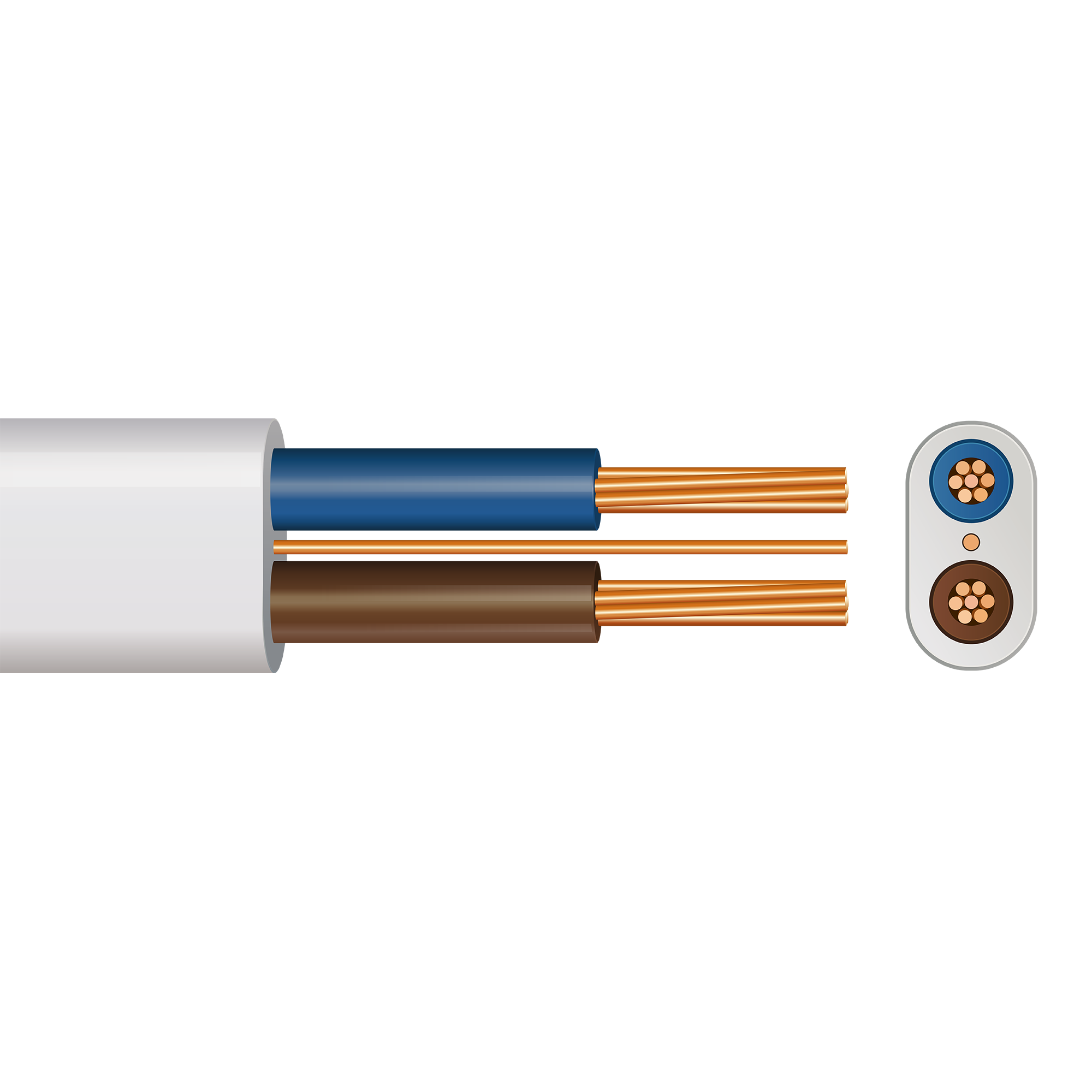

6242B Twin & Earth LSZH (White with Brown, Blue) 6mm² x 50m - 6242B-White-Blue-Brown-2000px.png

6242B Twin & Earth LSZH (White with Brown, Blue) 6mm² x 50m

SKU:
6242B6W50

Product Description


Low Smoke Zero Halogen (LSZH) domestic wiring cable for the surface wiring of sockets and lighting where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where mechanical damage would not be an issue. Suitable for laying in conduit or trunking where mechanical protection is required.
  • 6mm² Stranded Copper core
  • Rated Voltage: 300/500 V
  • Usage: Light duty cookers and showers
  • Packaging: Drum (cardboard and tin)
  • Certifications & Standards: BASEC, CE, ISO 9001, UKCA / BS 7211:2012

    • Other Details

    UK Code:
    6242B
    Harmonised Code:
    624-B
    Usage:
    Light duty cookers and showers
    Standards:
    BS 7211:2012
    Certifications:
    BASEC, CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, cardboard flanges)
    Core Size (mm):
    6
    Number of Strands:
    7
    Conductor Type:
    Stranded Copper
    Conductor Class:
    Class 2
    Cable Profile:
    Flat
    Low Smoke Zero Halogen:
    Yes
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    Cross linked polyethylene (PE)
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    7.5 x 14.6
    Cut Length (m):
    50
    Minimum Bending Radius:
    8 x D
    Nominal Cross Section Area (mm²):
    2 x 6 + 2.5rm
    Diameter of Conductor (mm):
    3.1
    Conductor Cross Section Area (mm²):
    6
    Insulation Thickness (mm):
    0.7
    Outer Sheath Thickness (mm):
    1.1
    Net Weight kg per km (kg):
    194
    Outer Sheath Colour:
    White
    Inner Core Colour(s):
    Brown, Blue
    Minimum Operating Temperature (ºC):
    -15º C
    Maximum Operating Temperature (ºC):
    90º C
    Maximum Short Circuit Temperature (ºC):
    250º C
    AC Test Voltage (kV):
    2
    Rated Voltage Uo/U (V):
    300/500 V
    Conductor DC Resistance at 20ºC:
    3.08 / 7.41 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    Single
    Capacity Ref Method A: 2 cables/single phase AC/DC (A):
    42
    Capacity Ref Method A: 3-4 cables/three phase AC (A):
    38
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    51
    Capacity Ref Method B: 3-4 cables/three phase AC (A):
    44
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    58
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    52
    Capacity Ref Method E: 2 cables/single phase AC/DC (A):
    63
    Capacity Ref Method E: 3-4 cables/three phase AC (A):
    54
