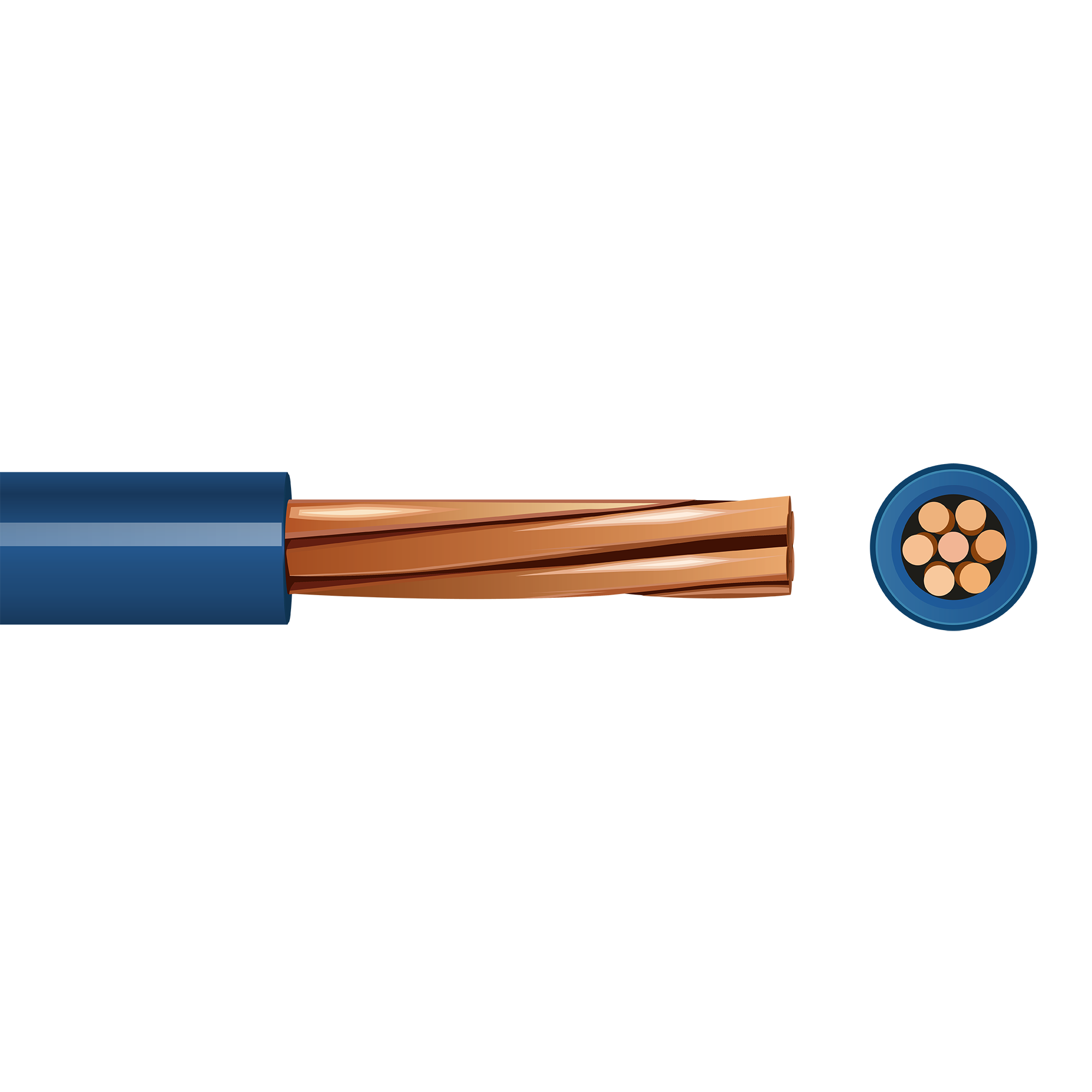

6491B Single Core LSZH (Blue) 10mm² x 100m - 6491B-Blue-2000px.png

6491B Single Core LSZH (Blue) 10mm² x 100m

SKU:
6491B10BL100

Product Description


Low Smoke Zero Halogen (LSZH) cable suitable for use in conduit and for fixed, protected installation. In particular for installation where fire, smoke emission and toxic fumes create a potential threat.
  • 10mm² Stranded Copper core
  • Rated Voltage: 450/750 V
  • Usage: Conduit or fixed, protected installation
  • Packaging: Drum (cardboard and tin)
  • Certifications & Standards: BASEC, CE, ISO 9001, UKCA / BS EN 50525-3-41

    • Other Details

    UK Code:
    6491B
    Harmonised Code:
    HO7Z-R
    Usage:
    Conduit or fixed, protected installation
    Standards:
    BS EN 50525-3-41
    Certifications:
    BASEC, CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, cardboard flanges)
    Core Size (mm):
    10
    Number of Strands:
    7
    Conductor Type:
    Stranded Copper
    Conductor Class:
    Class 2
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    Yes
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Outer Sheath Material:
    N/A
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    5.85
    Cut Length (m):
    100
    Minimum Bending Radius:
    6 x D
    Nominal Cross Section Area (mm²):
    10
    Diameter of Conductor (mm):
    3.85
    Conductor Cross Section Area (mm²):
    10
    Insulation Thickness (mm):
    1
    Outer Sheath Thickness (mm):
    N/A
    Net Weight kg per km (kg):
    110
    Outer Sheath Colour:
    Blue
    Inner Core Colour(s):
    N/A
    Minimum Operating Temperature (ºC):
    -15º C
    Maximum Operating Temperature (ºC):
    90º C
    Maximum Short Circuit Temperature (ºC):
    250º C
    AC Test Voltage (kV):
    2.5
    Rated Voltage Uo/U (V):
    450/750 V
    Conductor DC Resistance at 20ºC:
    1.83 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    N/A
    Capacity Ref Method A: 2 cables/single phase AC/DC (A):
    61
    Capacity Ref Method A: 3-4 cables/three phase AC (A):
    54
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    75
    Capacity Ref Method B: 3-4 cables/three phase AC (A):
    66
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    81
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    74
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat horizontally spaced (A):
    -
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat vertically spaced (A):
    -
    Capacity Ref Method F: 2 cables/single phase AC/DC flat touching (A):
    -
    Capacity Ref Method F: 3 cables/three phase AC flat touching (A):
    -
    Capacity Ref Method F: 3 cables/three phase AC trefoil touching (A):
    -
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
