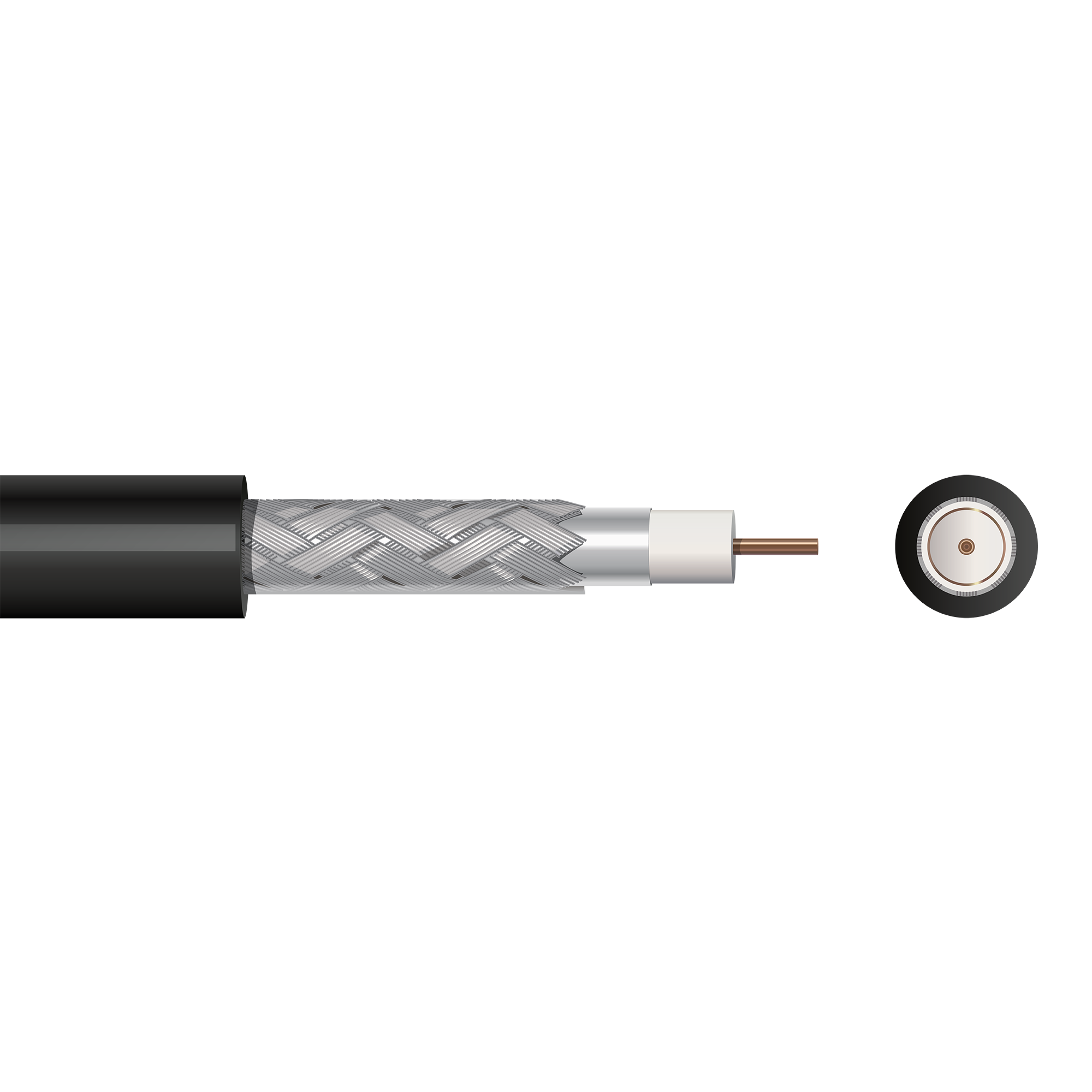

RG59 Coaxial Cable (Black) x 100m - RG59-Coaxial-Black-2000px.png

RG59 Coaxial Cable (Black) x 100m

SKU:
COAX-RG59B

Product Description


Used for indoor distributions of CATV networks and connections of SMATV systems which require low attenuations and high screening. 44 Ohm.
  • 1mm² Copper Clad Steel core
  • Rated Voltage: 30 V
  • Usage: Low-power video and RF signal connections and CCTV
  • Packaging: Drum (cardboard and tin)
  • Certifications & Standards: CE, ISO 9001, UKCA / EN 13501-6:2014

    • Other Details

    UK Code:
    RG59
    Harmonised Code:
    -
    Usage:
    Low-power video and RF signal connections and CCTV
    Standards:
    EN 13501-6:2014
    Certifications:
    CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, cardboard flanges)
    Core Size (mm):
    1
    Number of Strands:
    1
    Conductor Type:
    Copper Clad Steel
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    Foam polyethylene (PE)
    Outer Sheath Material:
    Polyvinyl chloride (PVC)
    Filler Material:
    N/A
    Braiding Material:
    Aluminium wire
    Screen Material:
    Aluminium foil
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    6
    Cut Length (m):
    100
    Minimum Bending Radius:
    15 x D
    Nominal Cross Section Area (mm²):
    0.419
    Diameter of Conductor (mm):
    0.73
    Conductor Cross Section Area (mm²):
    1
    Insulation Thickness (mm):
    1.4
    Outer Sheath Thickness (mm):
    0.8
    Net Weight kg per km (kg):
    36.61
    Outer Sheath Colour:
    Black
    Inner Core Colour(s):
    N/A
    Minimum Operating Temperature (ºC):
    -10º C
    Maximum Operating Temperature (ºC):
    70º C
    Maximum Short Circuit Temperature (ºC):
    100º C
    AC Test Voltage (kV):
    2
    Rated Voltage Uo/U (V):
    30 V
    Conductor DC Resistance at 20ºC:
    ±75Ω/km
    POE:
    No
