Satellite Cable (Black) x 250m - SAT-Satellite-Black-2000px.png

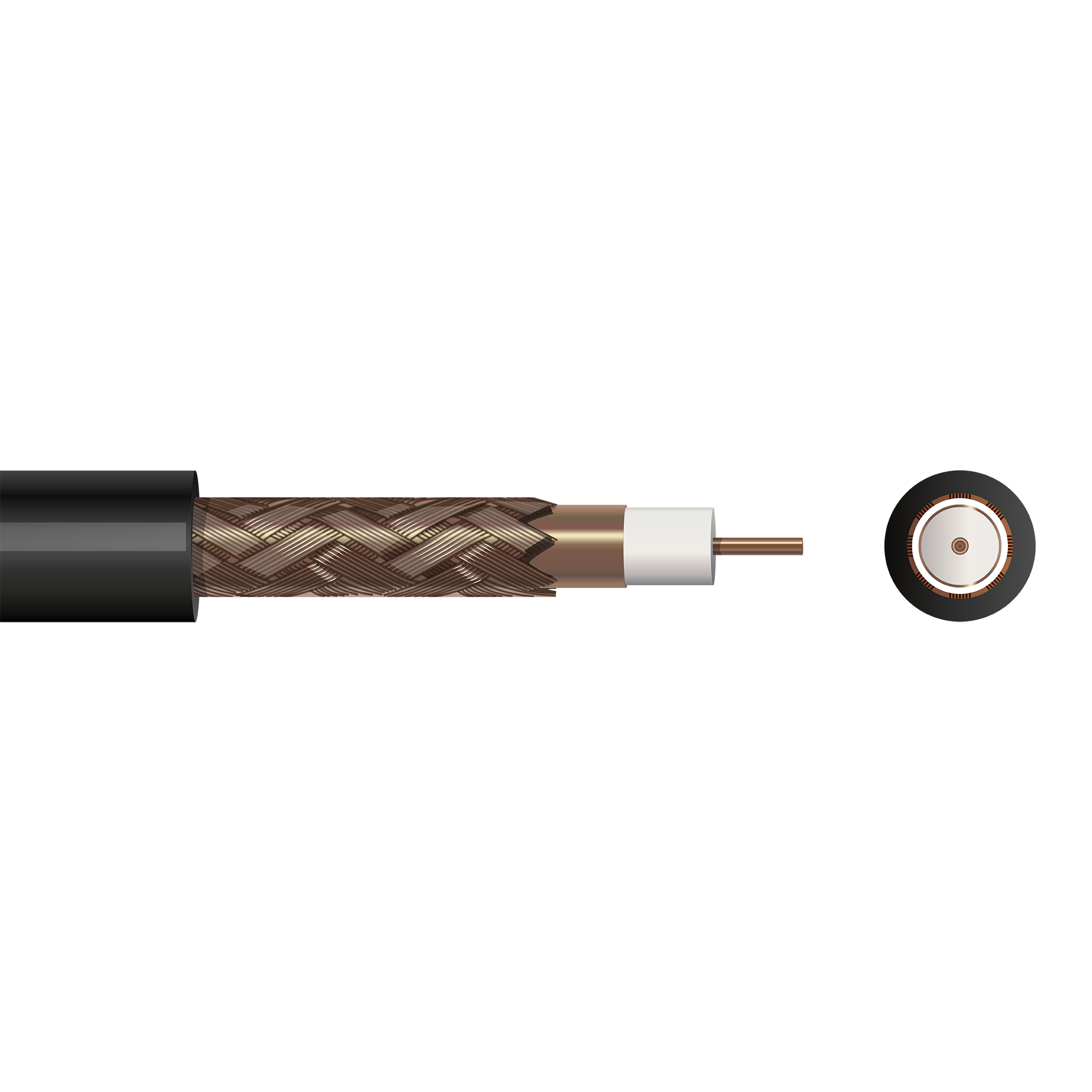

Satellite Cable (Black) x 250m

SKU:
SATB250

Product Description


Used for indoor distributions of CATV networks and connections of SMATV systems which require low attenuations and high screening. 75 Ohm.
  • 1mm² Solid Copper core
  • Rated Voltage: 30 V
  • Usage: Professional TV and CATV systems, satellite, terrestrial and cable TV
  • Packaging: Drum (cardboard and tin)
  • Certifications & Standards: CE, ISO 9001, UKCA / EN 13501-6:2014

    • Other Details

    UK Code:
    CT100
    Harmonised Code:
    -
    Usage:
    Professional TV and CATV systems, satellite, terrestrial and cable TV
    Standards:
    EN 13501-6:2014
    Certifications:
    CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (tin core, cardboard flanges)
    Core Size (mm):
    1
    Number of Strands:
    1
    Conductor Type:
    Solid Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    No
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor
    Insulation Material:
    Foam polyethylene (PE)
    Outer Sheath Material:
    Polyvinyl chloride (PVC)
    Filler Material:
    N/A
    Braiding Material:
    Copper wire
    Screen Material:
    Non-bonded copper foil/mylar
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    6.6
    Cut Length (m):
    250
    Minimum Bending Radius:
    15 x D
    Diameter of Conductor (mm):
    1
    Insulation Thickness (mm):
    1.57
    Outer Sheath Thickness (mm):
    0.63
    Net Weight kg per km (kg):
    51
    Outer Sheath Colour:
    Black
    Inner Core Colour(s):
    N/A
    Minimum Operating Temperature (ºC):
    -20º
    Maximum Operating Temperature (ºC):
    80º
    Rated Voltage Uo/U (V):
    30 V
    Conductor DC Resistance at 20ºC:
    ≤26Ω/km
    POE:
    No
