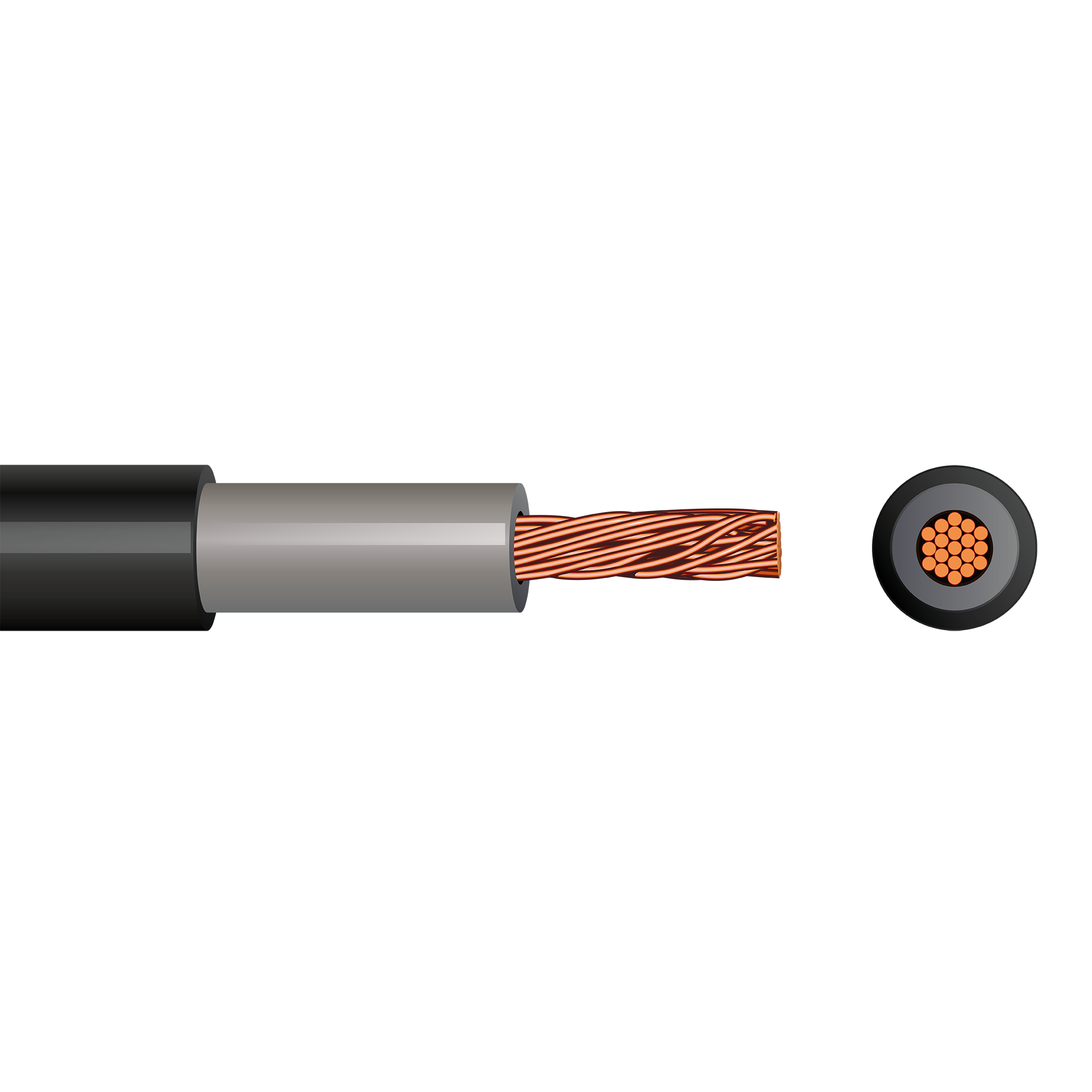

SOLAR Solar Cable (Black) 6mm² x 500m - SOLAR-Black-2000px.png

SOLAR Solar Cable (Black) 6mm² x 500m

SKU:
Solar6BLK500

Product Description


Specially designed to be used in photovoltaic power systems. These cables are highly UV radiation resistant and operate in a wide range of ambient temperatures (usually from -40°C up to +90°C) . They are weather resistant and guarantee long-life operation.
  • 6mm² Fine-Stranded Tinned Copper core
  • Rated Voltage: AC 1000/1000 V - DC 1500/1500 V
  • Usage: Photovoltaic power systems
  • Packaging: Drum (wood)
  • Certifications & Standards: CE, ISO 9001, UKCA / BS 50618

    • Other Details

    UK Code:
    SOLAR
    Harmonised Code:
    H1Z2Z2-K
    Usage:
    Photovoltaic power systems
    Standards:
    BS 50618
    Certifications:
    CE, ISO 9001, UKCA
    Warranty:
    12 Months
    Packaging Description:
    Drum (wood)
    Core Size (mm):
    6
    Number of Strands:
    74
    Conductor Type:
    Fine-Stranded Tinned Copper
    Conductor Class:
    Class 5
    Cable Profile:
    Round
    Low Smoke Zero Halogen:
    Yes
    Armoured:
    No
    Indoor/Outdoor Usage:
    Indoor/Outdoor
    Filler Material:
    N/A
    Braiding Material:
    N/A
    Screen Material:
    N/A
    Armour Material:
    N/A
    Overall Cable Diameter (mm):
    6.1
    Cut Length (m):
    500
    Minimum Bending Radius:
    5 x D
    Nominal Cross Section Area (mm²):
    6
    Diameter of Conductor (mm):
    3.1
    Conductor Cross Section Area (mm²):
    6
    Insulation Thickness (mm):
    0.7
    Outer Sheath Thickness (mm):
    0.8
    Net Weight kg per km (kg):
    82
    Outer Sheath Colour:
    Black
    Inner Core Colour(s):
    N/A
    Minimum Operating Temperature (ºC):
    -40º C
    Maximum Operating Temperature (ºC):
    90º C
    Maximum Short Circuit Temperature (ºC):
    200º C
    AC Test Voltage (kV):
    6.5
    Rated Voltage Uo/U (V):
    AC 1000/1000 V - DC 1500/1500 V
    Conductor DC Resistance at 20ºC:
    3.39 Ω/km
    Maximum Mass Supportable - Twin flexible cord (kg):
    0
    EV Charging:
    N/A
    Number of Phases:
    N/A
    Capacity Ref Method A: 2 cables/single phase AC/DC (A):
    34
    Capacity Ref Method A: 3-4 cables/three phase AC (A):
    31
    Capacity Ref Method B: 2 cables/single phase AC/DC (A):
    41
    Capacity Ref Method B: 3-4 cables/three phase AC (A):
    36
    Capacity Ref Method C: 2 cables/single phase AC/DC (A):
    47
    Capacity Ref Method C: 3-4 cables/three phase AC (A):
    43
    Capacity Ref Method E: 2 cables/single phase AC/DC (A):
    52.36
    Capacity Ref Method E: 3-4 cables/three phase AC (A):
    44.95
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat horizontally spaced (A):
    61.88
    Capacity Ref Method F: 2 cables/single phase AC/DC or 3 cables/three phase AC flat vertically spaced (A):
    55.08
    Capacity Ref Method F: 2 cables/single phase AC/DC flat touching (A):
    55.42
    Capacity Ref Method F: 3 cables/three phase AC flat touching (A):
    48.36
    Capacity Ref Method F: 3 cables/three phase AC trefoil touching (A):
    46.58
    Voltage Drop per A per m: DC or single phase AC (mV/A/m):
    7.3
    Voltage Drop per A per m: three phase AC (mV/A/m):
    7.3
    Capacity Ref Method 100 (A):
    N/A
    Capacity Ref Method 101 (A):
    N/A
    Capacity Ref Method 102 (A):
    N/A
    Capacity Ref Method 103 (A):
    N/A
