GEN2 6ft 80W NCF LED Batten Light - 326028-GEN2-6ft-80W-NCF-Batten-Cutout-01.jpg

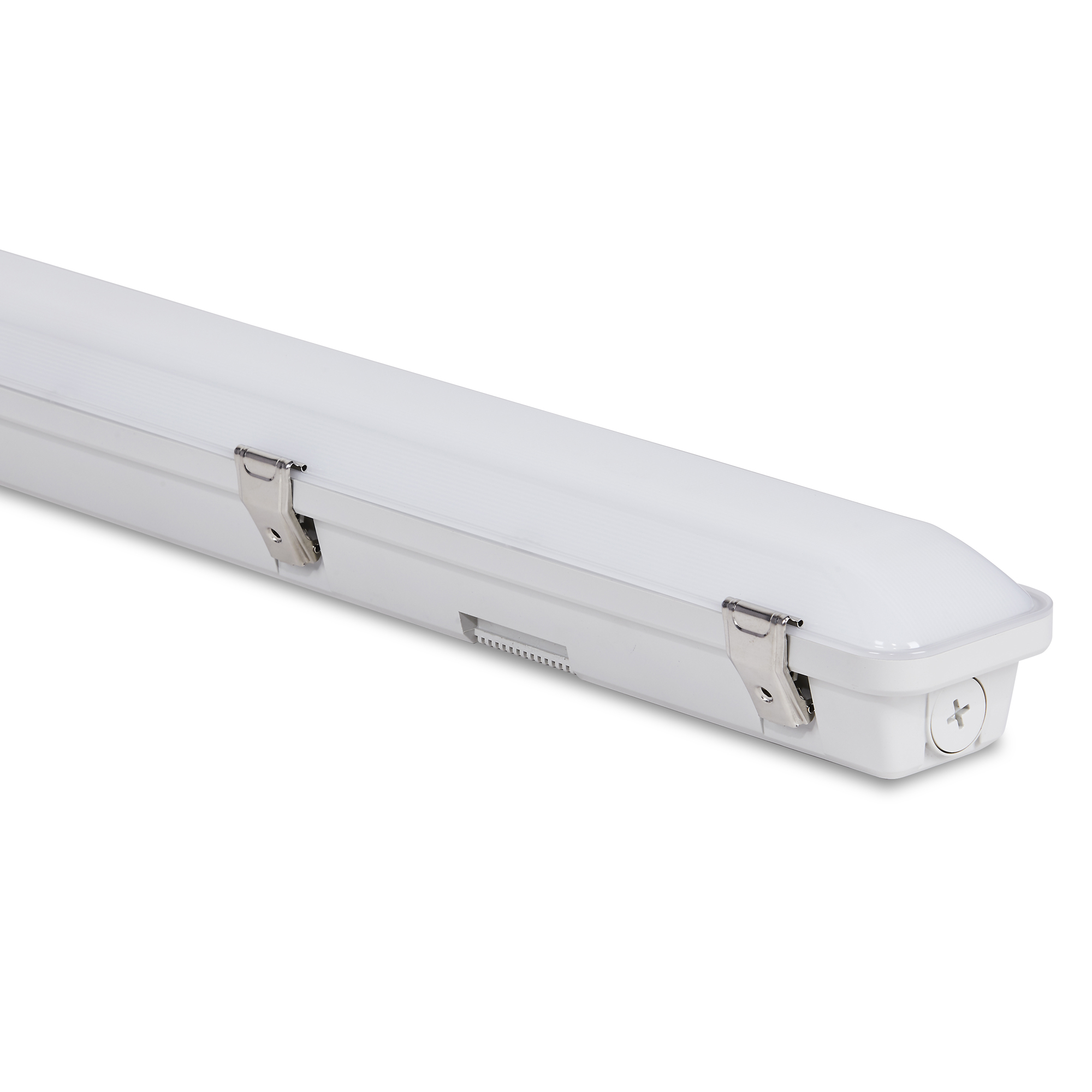

GEN2 6ft 80W NCF LED Batten Light

SKU:
326028

Product Description


The GEN2 range of Non-Corrosive Fittings (NCFs) are the next generation of commercial and industrial lighting. Packed with industry leading features, GEN2 NCF battens are ultra efficient at 150 lumens per watt and feature four power settings and three selectable colour temperatures. These IP66 battens are plug and play upgradable with optional quick-fit Microwave Sensor and/or Emergency Kit. Available in 5ft and 6ft with either single or double power output, they come with stainless steel clips, push fit terminals, quick fit mounting brackets, and duel threaded 20mm cable entries.
  • Output : 12000 / 10500 / 8100 / 7500 lumens / 150 lumens/Watt
  • Energy Rating : D / Lifespan : 50000 hours
  • Colour Settings : Warm White, Cool White, Daylight
  • Materials : Polycarbonate
  • Warranty : 5 Years

    • Other Details

    Warranty:
    5 Years
    Packaging Description:
    Cardboard box
    Product Colour:
    Grey base, White cover
    Product Material:
    Polycarbonate
    PMMA:
    No
    Certifications:
    CE, ISO 9001, RoHS, UKCA
    Fire Rated:
    No
    LED Type:
    SMD
    Fitting:
    N/A
    Bulb Shape:
    N/A
    Product Height (mm):
    80
    Product Length (mm):
    1840
    Depth/Width (mm):
    104
    Net Product Weight (g):
    2500
    Dimmable:
    No
    Includes Driver:
    Yes
    PIR (Passive Infrared) Motion Sensor:
    No
    Flex Length (mm):
    N/A
    Flex Colour:
    N/A
    Cut Out Size (mm):
    N/A
    IP Rating:
    IP66
    Watts (W):
    80 / 70 / 60 / 50
    Total Lumens (lm):
    12000 / 10500 / 8100 / 7500
    Lumens per Watt (lm/W):
    150
    Beam Angle (º):
    120º
    Output Colour Temperature (K):
    3000K / 4000K / 6500K
    Output Colour:
    Warm White, Cool White, Daylight
    CCT (Colour Correlated Temperature):
    Yes
    Ra:
    80
    Colour Tolerance:
    ＜6 @ 3000K/6500K / < 10 @ 4000K
    Energy Consumption (kW/h):
    80 / 70 / 60 / 50 kWh/1000h
    Input Frequency (Hz):
    50/60 Hz
    Voltage (V):
    220 - 240 V
    Current (A):
    0.353 / 0.305 / 0.260 / 0.22 A
    Power (W):
    80 / 70 / 60 / 50
    Power Factor:
    0.9
    Lifespan (hours):
    50000
    Energy Rating:
    D
    Emergency Battery:
    Optional
    Emergency Charge Time:
    24 hours
    Emergency Discharge Time:
    > 3 hours
    Emergency Output Voltage:
    153 V
    Emergency Self Test:
    No
