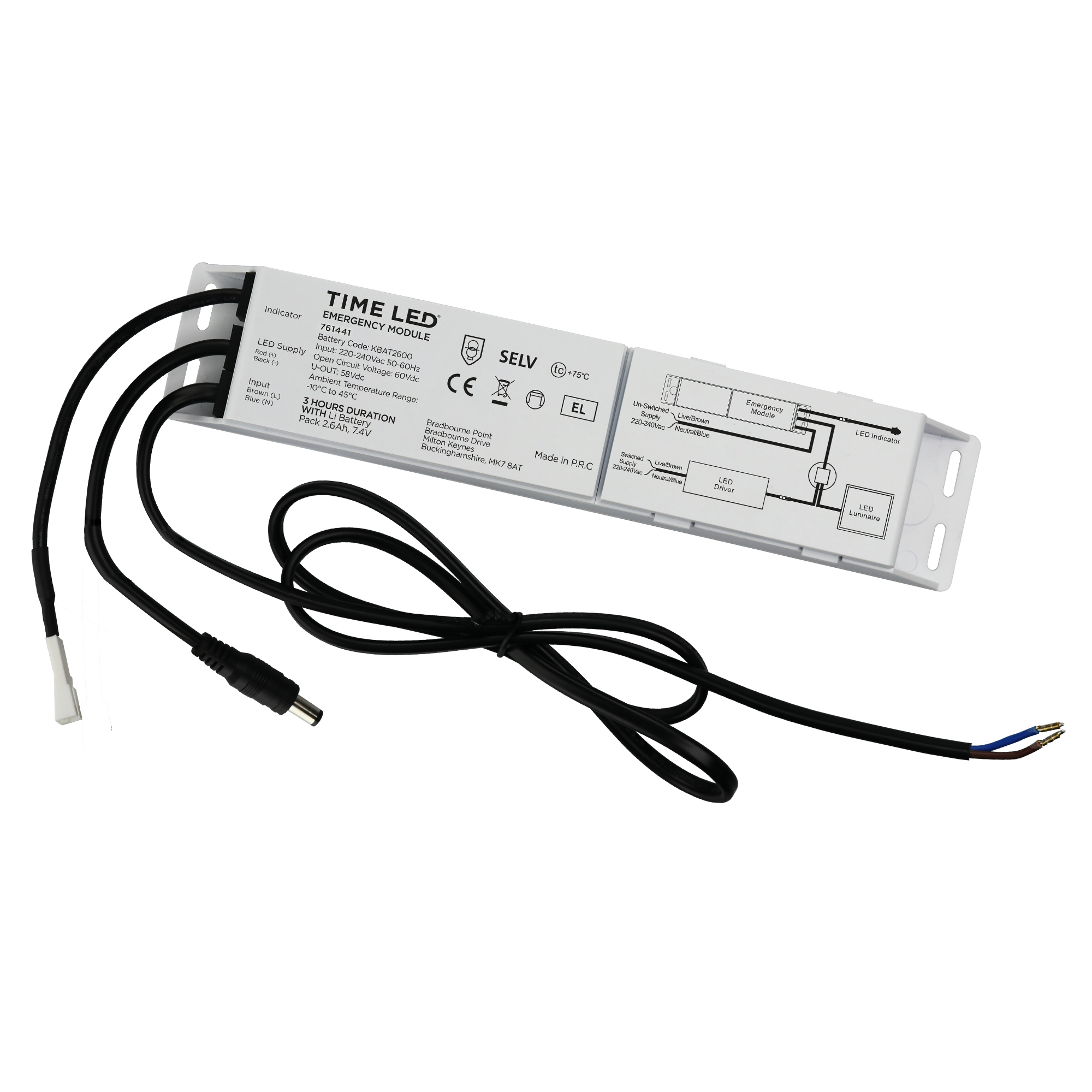

Utility Universal Emergency Module

SKU:
761441

Product Description

Product Discontinued: Available Only While Stocks Last


The Utility Universal Emergency module kit easily upgrades your TIME LED panel lights to provide backup power for 3+ hours in case of power outage. No fixings required with easy connection.
  • For use with Frame Panel (768976 / 768983), Ultra Eco Panel (783351 / 783368), Ultra Premium Panel (783337 / 783344, Diamond Daylight Panel (325052) and Chroma CCT Panel (325076)
  • Lifespan : 30000 hours
  • IP Rating : IP20
  • Materials : Polycarbonate
  • Warranty: 3 Years
  • Other Details

    Warranty:
    3 Years
    Packaging Description:
    Cardboard box with label
    Product Colour:
    White
    Product Material:
    Polycarbonate
    PMMA:
    No
    Certifications:
    CE, ISO 9001, RoHS, UKCA
    Fire Rated:
    No
    LED Type:
    N/A
    Fitting:
    N/A
    Bulb Shape:
    N/A
    Product Height (mm):
    26
    Product Length (mm):
    230
    Depth/Width (mm):
    46
    Net Product Weight (g):
    200
    Includes Driver:
    Yes
    PIR (Passive Infrared) Motion Sensor:
    No
    Flex Length (mm):
    N/A
    Flex Colour:
    Black
    Cut Out Size (mm):
    N/A
    IP Rating:
    IP20
    Watts (W):
    N/A
    Equivalent Wattage (W):
    N/A
    Total Lumens (lm):
    N/A
    Beam Angle (º):
    N/A
    Output Colour Temperature (K):
    N/A
    Colour Tolerance:
    N/A
    UGR:
    N/A
    Voltage (V):
    220 - 240 V
    Current (A):
    0.035 A
    Power (W):
    N/A
    Power Factor:
    N/A
    Lifespan (hours):
    30000
    Energy Rating:
    N/A
    Emergency Battery:
    Samsung Li-Ion KBAT2600
    Emergency Charge Time:
    12 hours
    Emergency Discharge Time:
    > 3 hours
    Emergency Output Voltage:
    9 - 58 V
    Emergency Self Test:
    No
