For prices call us on 01908 272444 or contact your sales representative.

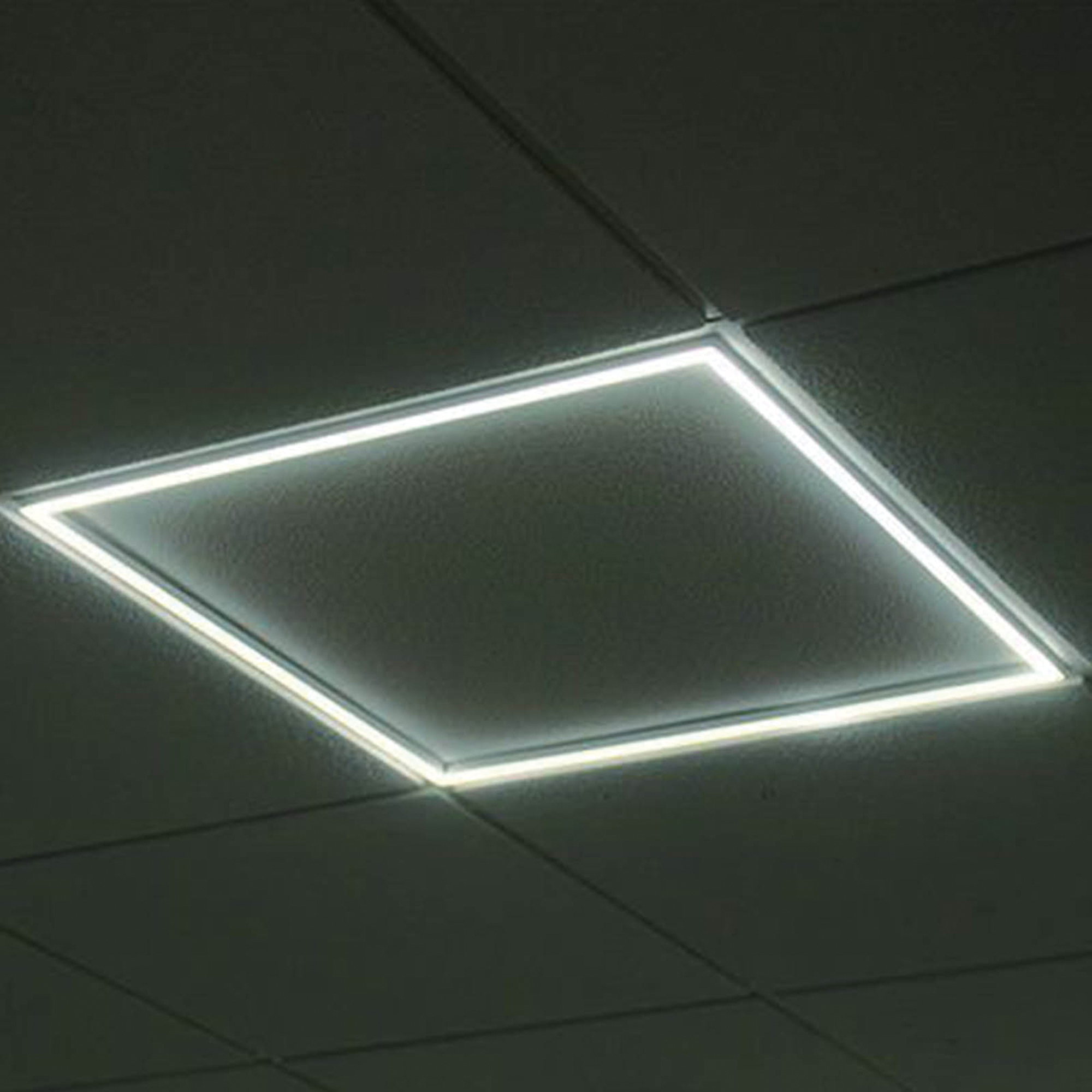

Frame 40W Cool White LED Panel Light - 768976-Frame-40W-Cool-White-LED-Panel-Light-Lifestyle-01.jpg

Frame 40W Cool White LED Panel Light

SKU:
768976

Product Description


The Frame LED Panel Light presents an alternative, fresh look for boring ceiling lighting – without complicating installation or compromising output. With a simple, recessed installation (no mounting kit required) and an ultra-slim 9mm design, these stylish panels can fit into existing panel ceilings. With 3,600 lumens output in Cool White (4500K), they are an easy way to update the lighting in offices and other commercial buildings. Also compatible with our Utility Universal Emergency Modules (product codes 761441 / 761441-M) for added piece of mind.
  • Output : 3600 lumens / 90 lumens/Watt
  • Energy Rating : A+ / Lifespan : 25000 hours
  • Colour Settings : Cool White
  • Materials : Aluminium, Polycarbonate
  • Warranty : 3 Years

    • Other Details

    Warranty:
    3 Years
    Packaging Description:
    Brown cardboard box with foam corner protectors
    Product Colour:
    White
    Product Material:
    Aluminium, Polycarbonate
    PMMA:
    No
    Certifications:
    CE, ISO 9001, RoHS, UKCA
    Fire Rated:
    No
    LED Type:
    SMD
    Fitting:
    N/A
    Bulb Shape:
    N/A
    Product Height (mm):
    591
    Product Length (mm):
    591
    Depth/Width (mm):
    10
    Net Product Weight (g):
    500
    Dimmable:
    No
    Includes Driver:
    Yes
    PIR (Passive Infrared) Motion Sensor:
    No
    Flex Length (mm):
    N/A
    Flex Colour:
    N/A
    Cut Out Size (mm):
    N/A
    IP Rating:
    IP20
    Watts (W):
    40
    Equivalent Wattage (W):
    320
    Total Lumens (lm):
    3600
    Lumens per Watt (lm/W):
    90
    Beam Angle (º):
    120º
    Output Colour Temperature (K):
    4500K
    Output Colour:
    Cool White
    CCT (Colour Correlated Temperature):
    No
    Ra:
    80
    Colour Tolerance:
    < 6
    Energy Consumption (kW/h):
    40 kWh/1000h
    Input Frequency (Hz):
    50/60 Hz
    Voltage (V):
    170 - 265 V
    Current (A):
    1.000 A
    Power (W):
    40
    Power Factor:
    0.9
    Lifespan (hours):
    25000
    Energy Rating:
    A+
    Emergency Battery:
    N/A
    Emergency Charge Time:
    N/A
    Emergency Discharge Time:
    N/A
    Emergency Output Voltage:
    N/A
    Emergency Self Test:
    No
