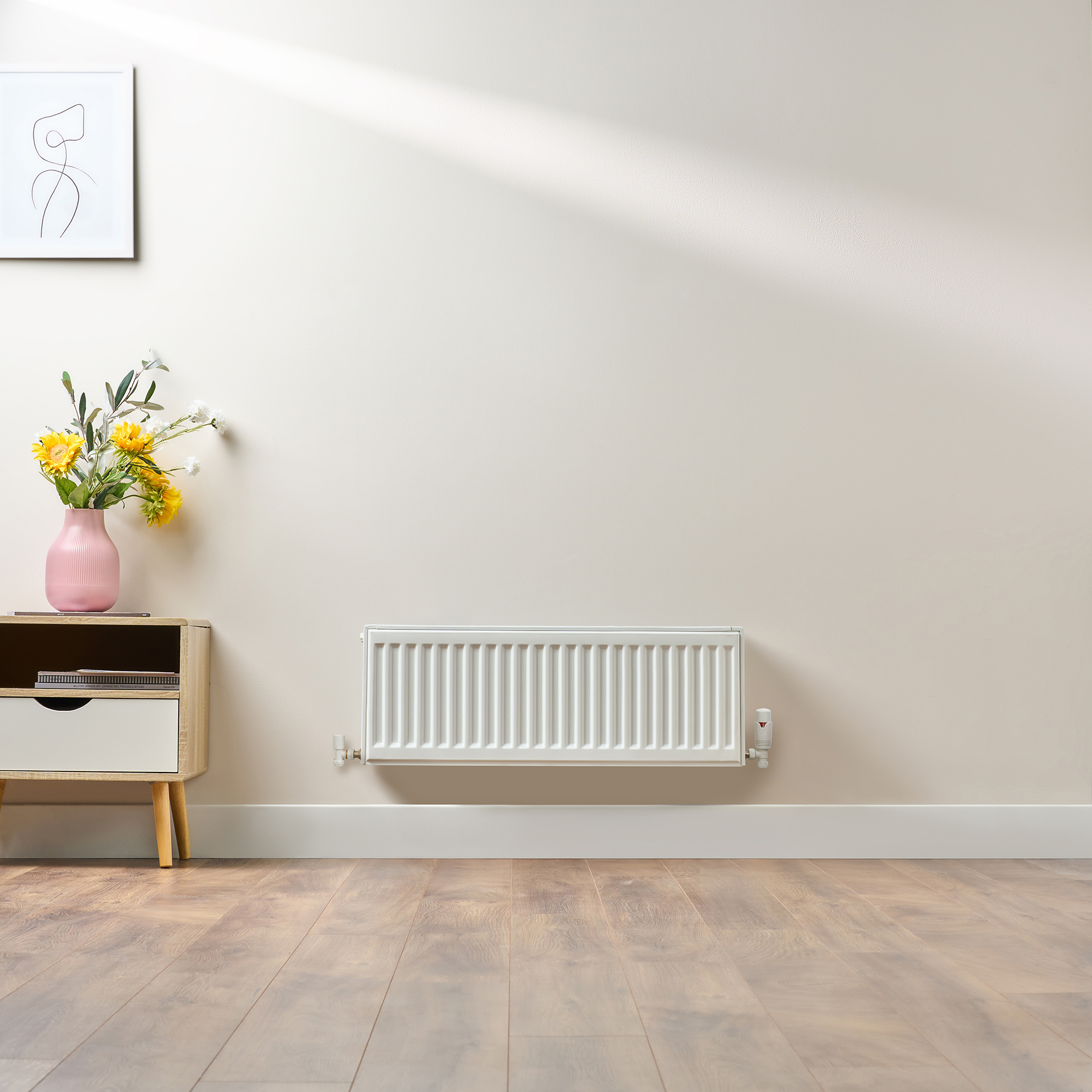

Compact 4 - 3DF Horizontal Radiator: Traffic White (RAL 9016) 300mm H x 800mm L - Compact-4-3DF800W-White-Lifestyle-01.jpg

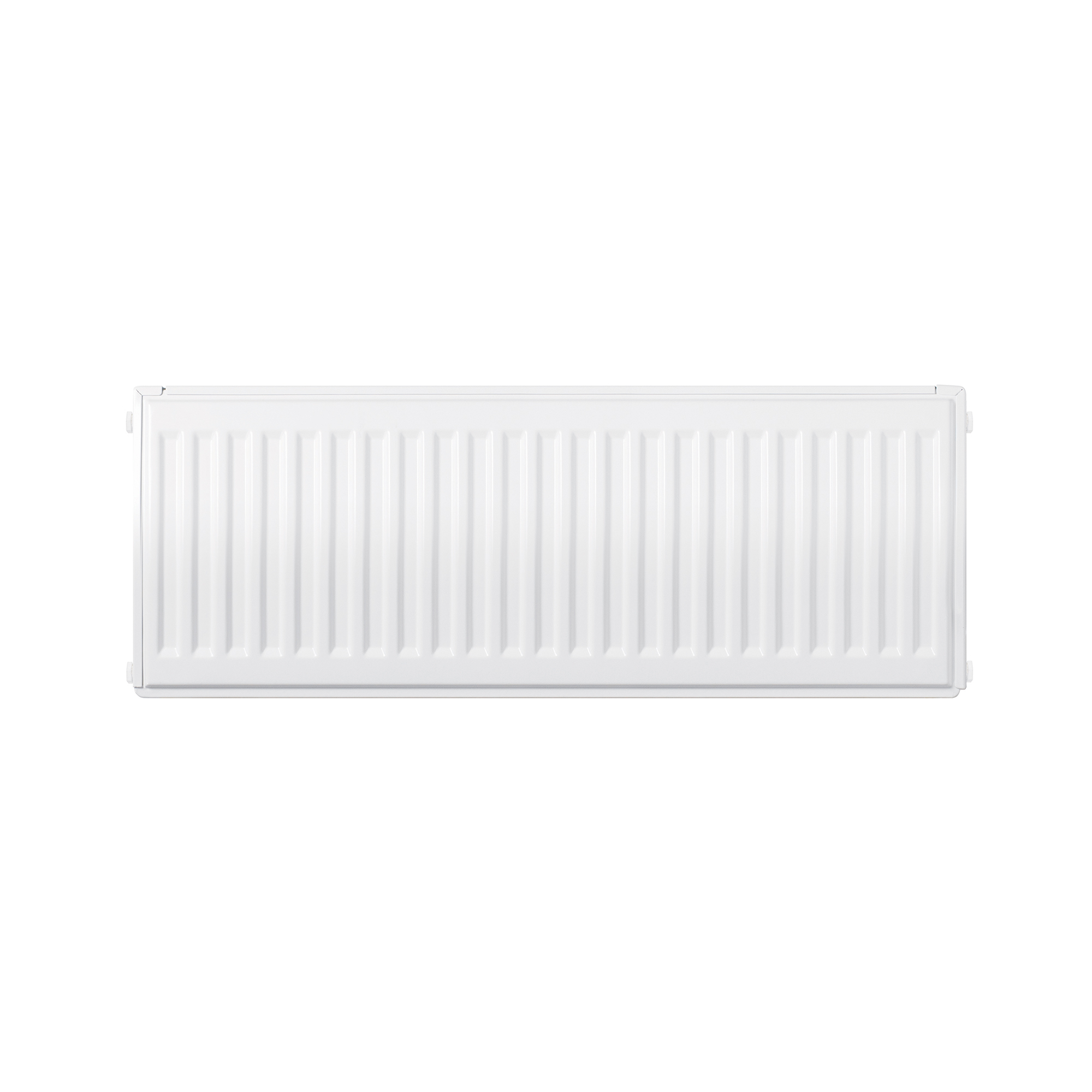

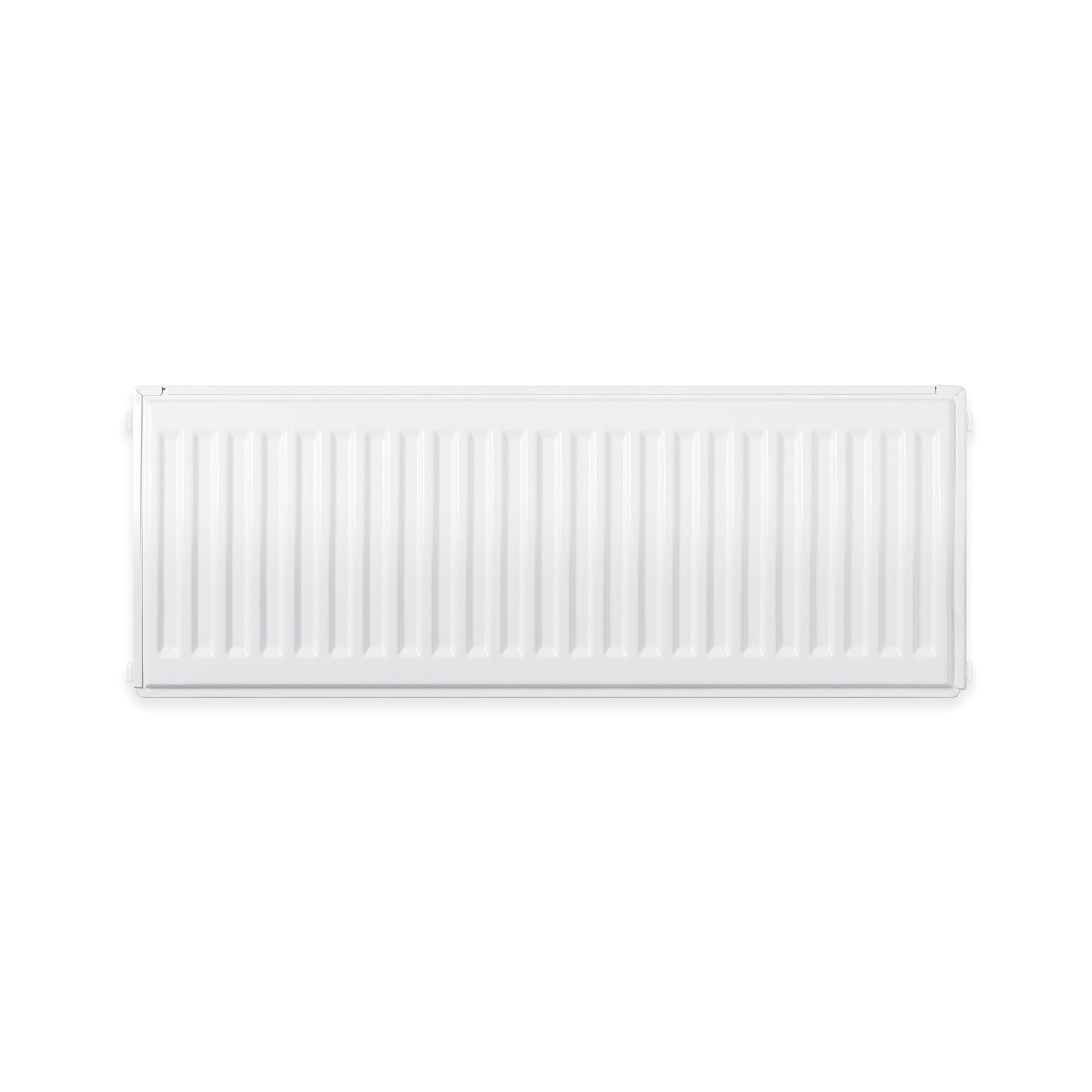

Compact 4 - 3DF Horizontal Radiator: Traffic White (RAL 9016) 300mm H x 800mm L

SKU:
3DF800

Product Description


Durable and versatile, Compact 4 radiators are a cost-effective, rapid heating solution for homes and working environments. The Compact 4 3DF is a 300mm high, double panel, double convector option. Four taps.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 300mm H x 800mm L x 100mm D
  • Heat Output at ΔT 50º C : 2683 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Double Panel / Double Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    300
    Length (mm):
    800
    Depth (mm):
    100
    Net Product Weight (kg):
    12.53
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    24
    Towel Gaps:
    N/A
    Wall to Face (mm):
    124 or 135
    Pipe Centres (mm):
    E2: 894 / E3: 250
    Wall to Pipe Centres (mm):
    74 or 85
    Bracket Centres - Horizontal (mm):
    554
    Bracket Centres - Vertical (mm):
    185
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    2683
    Heat Output Group (BTU):
    2501 – 3000 BTU
    Heat Output (W):
    786
    Heat Output Group (W):
    501 – 1000 Watts
    Water Content (L):
    2.8
