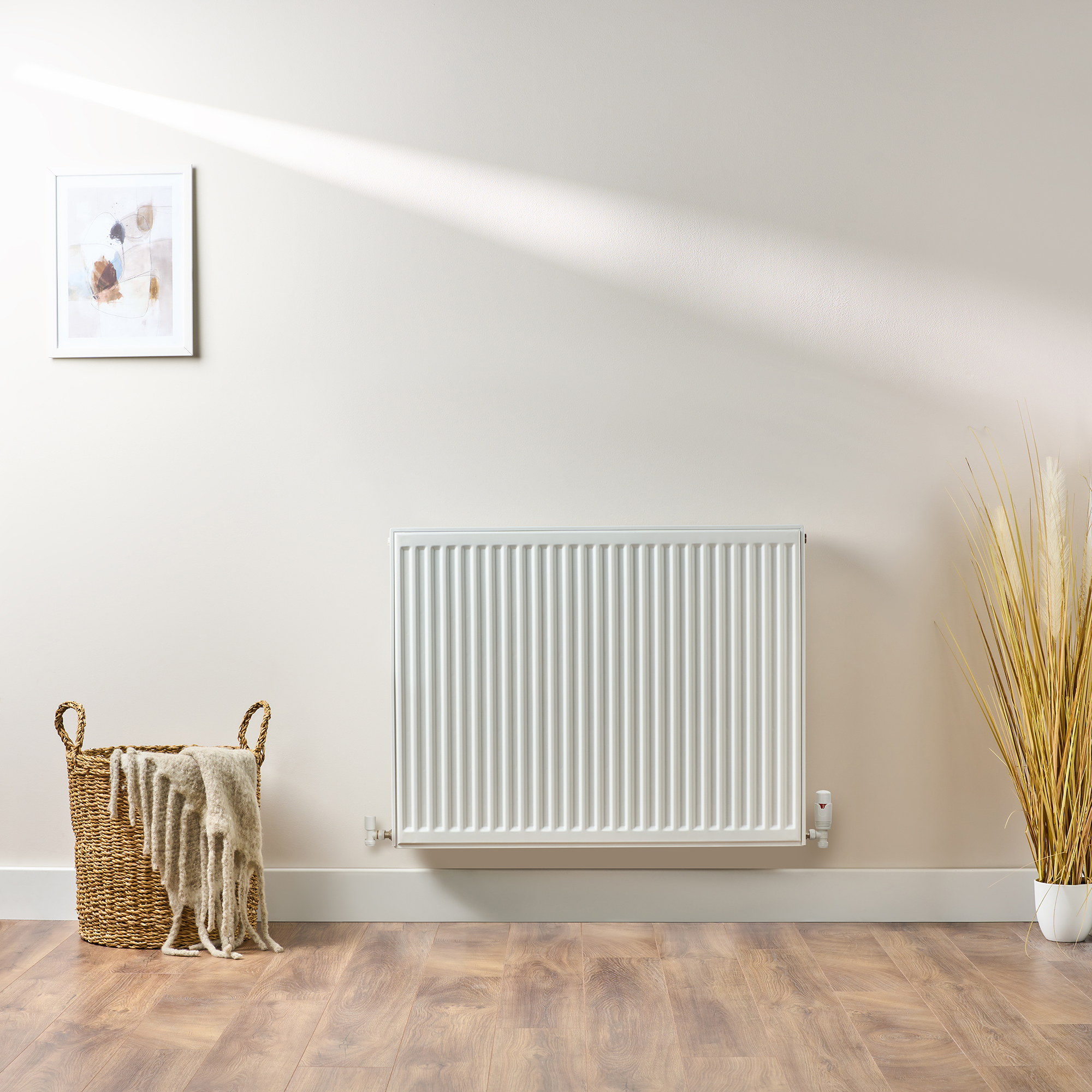

Compact 4 - 7DF Horizontal Radiator: Traffic White (RAL 9016) 700mm H x 900mm L - Compact-4-7DF900W-White-Lifestyle-01.jpg

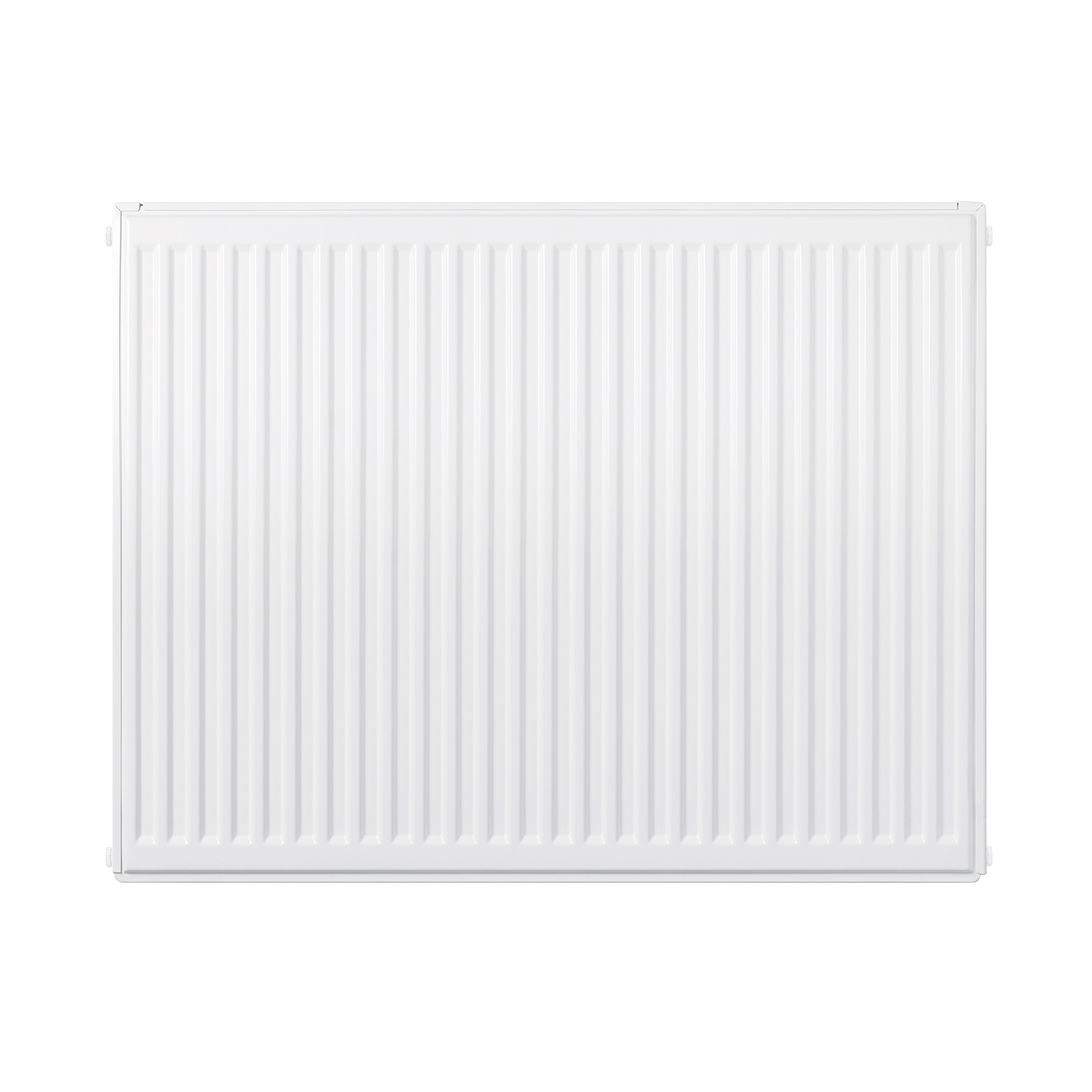

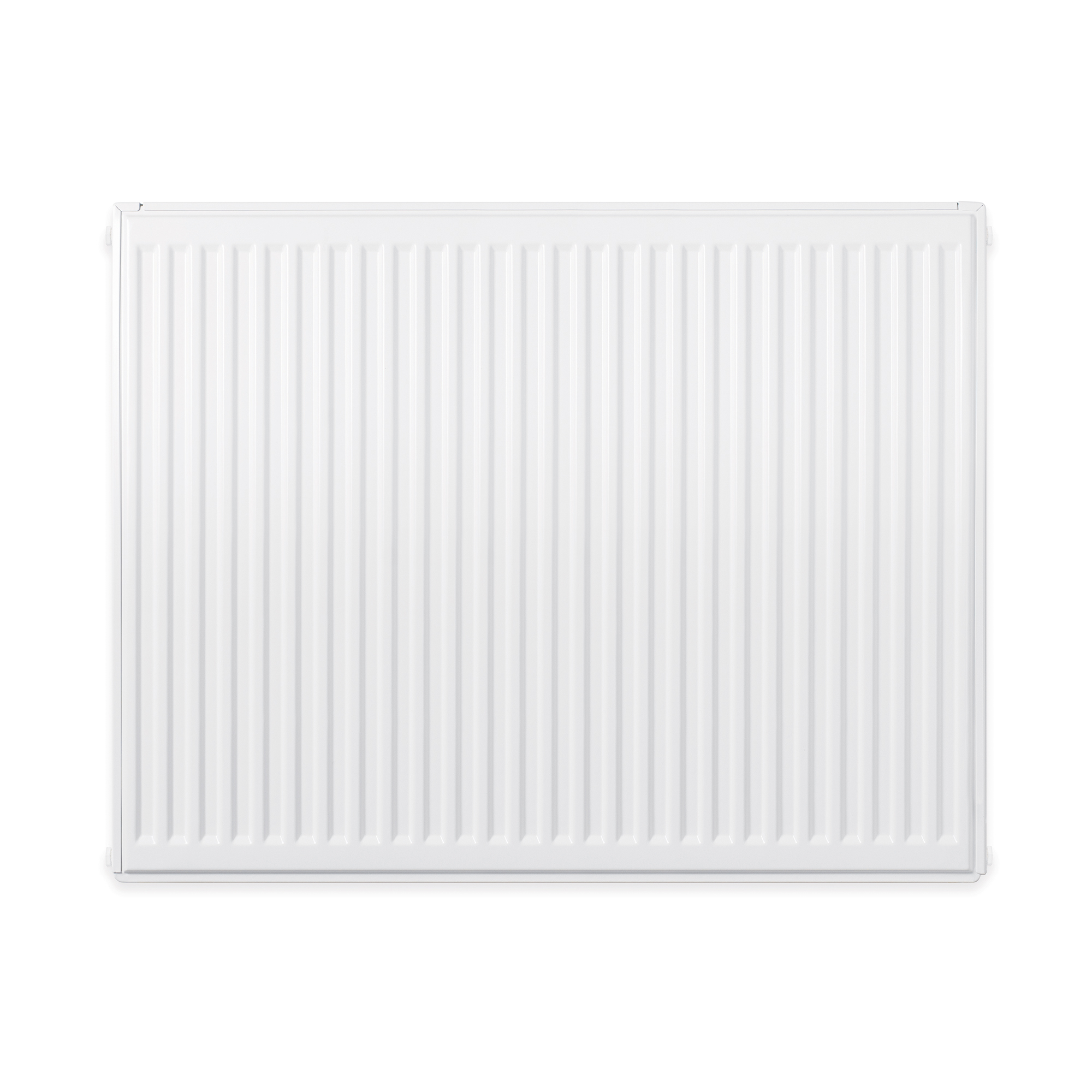

Compact 4 - 7DF Horizontal Radiator: Traffic White (RAL 9016) 700mm H x 900mm L

SKU:
7DF900

Product Description


Durable and versatile, Compact 4 radiators are a cost-effective, rapid heating solution for homes and working environments. The Compact 4 7DF is a 700mm high, double panel, double convector option. Four taps.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 700mm H x 900mm L x 100mm D
  • Heat Output at ΔT 50º C : 6028 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Double Panel / Double Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    700
    Length (mm):
    900
    Depth (mm):
    100
    Net Product Weight (kg):
    31.85
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    27
    Towel Gaps:
    N/A
    Wall to Face (mm):
    124 or 135
    Pipe Centres (mm):
    E2: 994 / E3: 650
    Wall to Pipe Centres (mm):
    74 or 85
    Bracket Centres - Horizontal (mm):
    654
    Bracket Centres - Vertical (mm):
    585
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    6028
    Heat Output Group (BTU):
    6001 – 6500 BTU
    Heat Output (W):
    1767
    Heat Output Group (W):
    1501 – 2000 Watts
    Water Content (L):
    5.787
