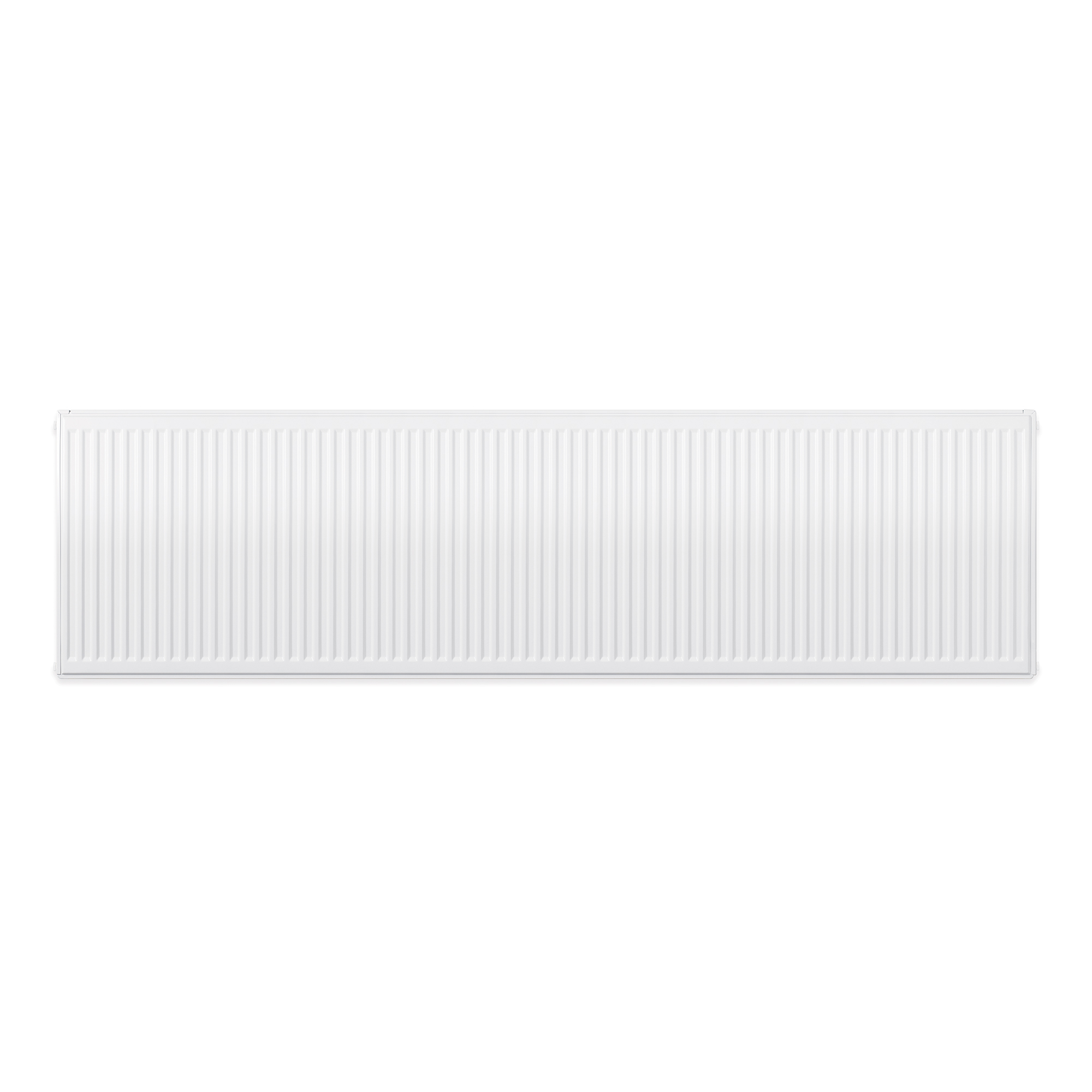

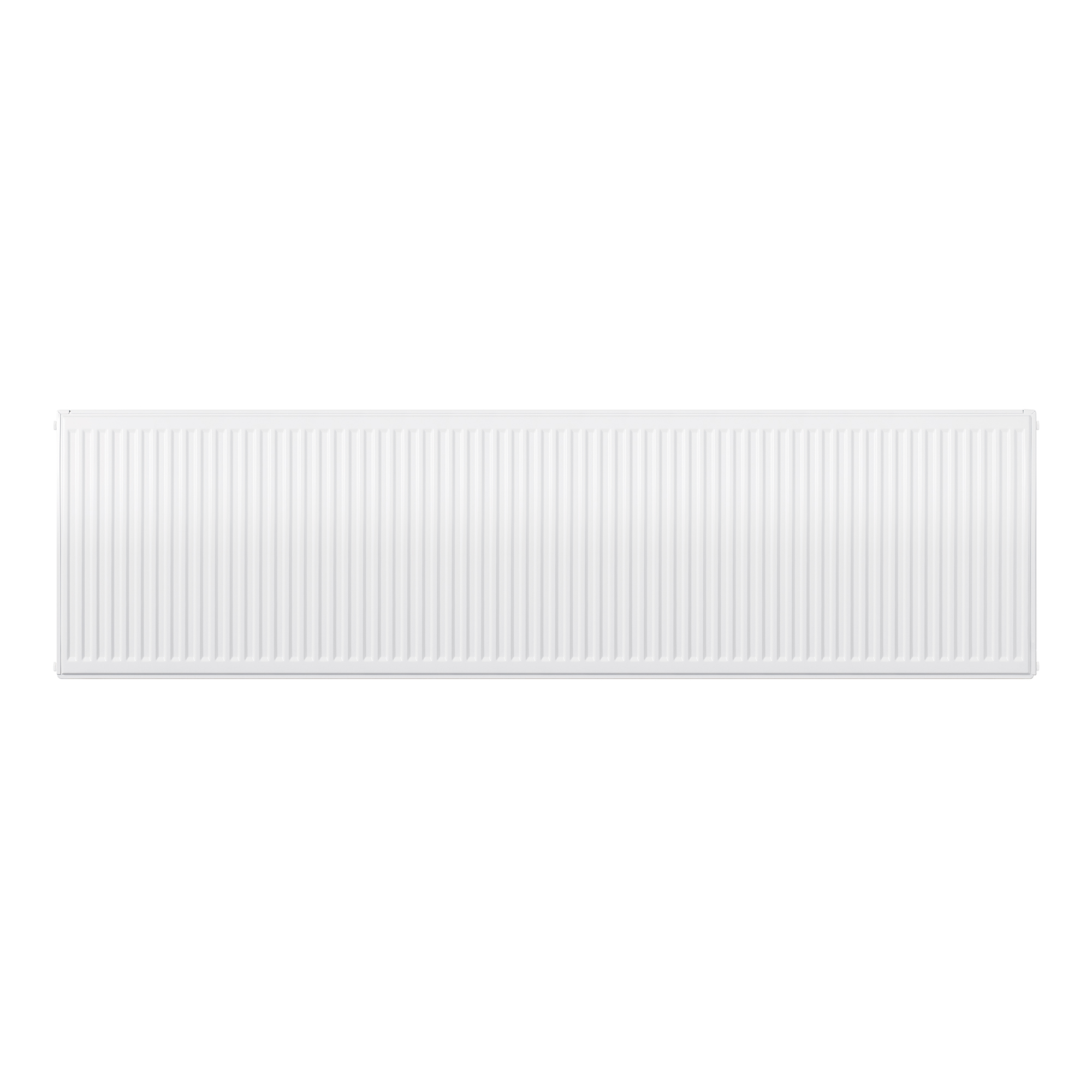

Compact 4 - 6SF Horizontal Radiator (without grills): Traffic White (RAL 9016) 600mm H x 2200mm L - Compact-4-6SF2200W-White-Lifestyle-01.jpg

Compact 4 - 6SF Horizontal Radiator (without grills): Traffic White (RAL 9016) 600mm H x 2200mm L

SKU:
6S2200

Product Description

Product Discontinued: Available Only While Stocks Last


Durable and versatile, Compact 4 radiators are a cost-effective, rapid heating solution for homes and working environments. The Compact 4 6SF is a 600mm high, single panel, single convector option. Four taps.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 600mm H x 2200mm L x 57mm D
  • Heat Output at ΔT 50º C : 7266 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Single Panel / Single Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    600
    Length (mm):
    2200
    Depth (mm):
    57
    Net Product Weight (kg):
    35.44
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    66
    Towel Gaps:
    N/A
    Wall to Face (mm):
    68 or 79
    Pipe Centres (mm):
    E2: 2294 / E3: 550
    Wall to Pipe Centres (mm):
    37 or 48
    Bracket Centres - Horizontal (mm):
    971
    Bracket Centres - Vertical (mm):
    485
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    7266
    Heat Output Group (BTU):
    7001 – 7500 BTU
    Heat Output (W):
    2130
    Heat Output Group (W):
    2001 – 2500 Watts
    Water Content (L):
    6.6
