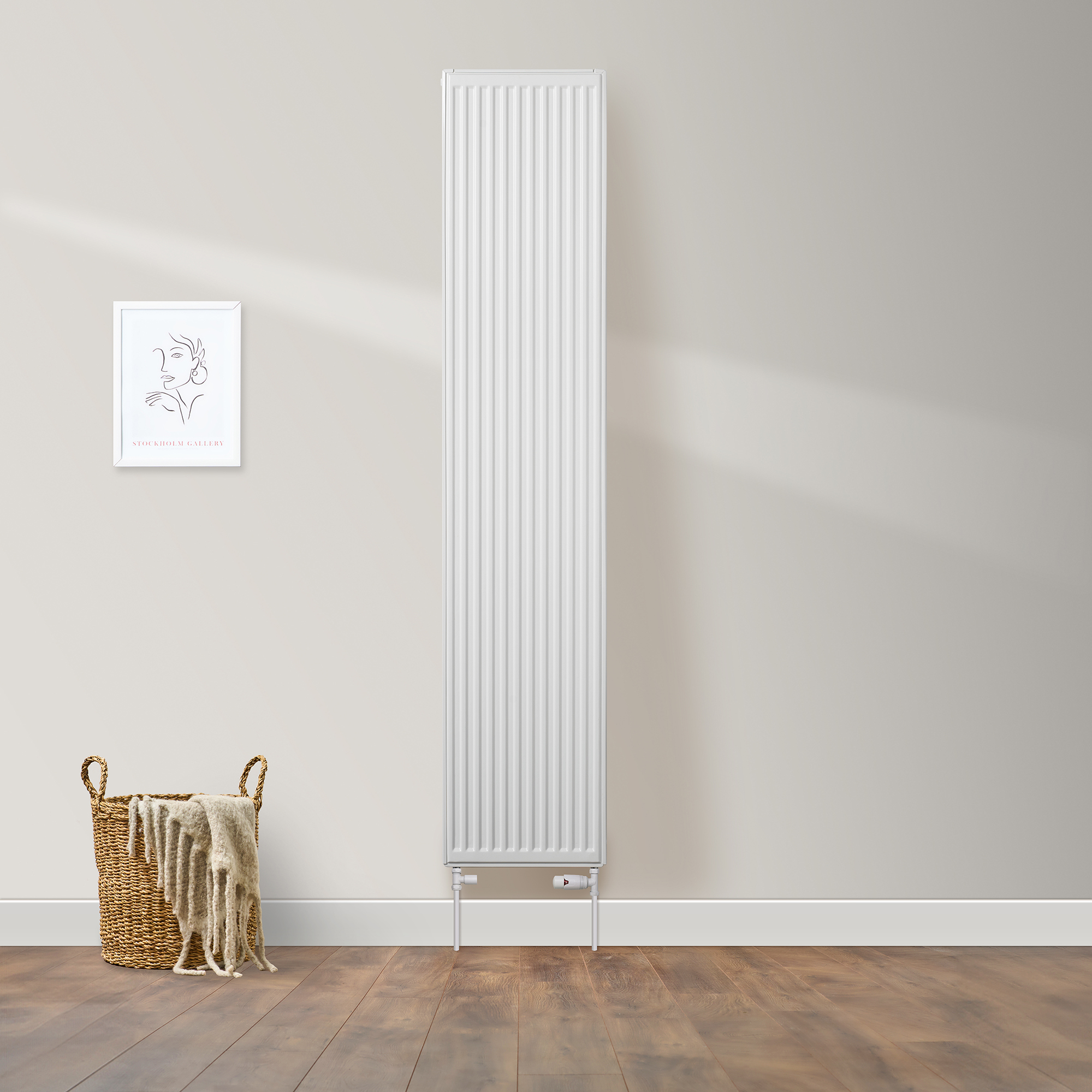

Compact 4 - 20VHF Vertical Radiator: Traffic White (RAL 9016) 2000mm H x 400mm L - Compact-4-20VHF400W-White-Lifestyle-01.jpg

Compact 4 - 20VHF Vertical Radiator: Traffic White (RAL 9016) 2000mm H x 400mm L

SKU:
20VHF400

Product Description


Durable and versatile, Compact 4 radiators are a cost-effective, rapid heating solution for homes and working environments. The Compact 4 20VHF Vertical is a 2000mm high, double panel, single convector option for narrow wall spaces. Four taps.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 2000mm H x 400mm L x 77mm D
  • Heat Output at ΔT 50º C : 4463 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Double Panel / Single Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    2000
    Length (mm):
    400
    Depth (mm):
    77
    Net Product Weight (kg):
    42.48
    Orientation/Mounting Position:
    Vertical
    Pipes/Sections:
    12
    Towel Gaps:
    N/A
    Wall to Face (mm):
    103 or 125
    Pipe Centres (mm):
    E1: 344
    Wall to Pipe Centres (mm):
    65 or 87
    Bracket Centres - Horizontal (mm):
    222
    Bracket Centres - Vertical (mm):
    1885
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    4463
    Heat Output Group (BTU):
    4001 – 4500 BTU
    Heat Output (W):
    1308
    Heat Output Group (W):
    1001 – 1500 Watts
    Water Content (L):
    7.44
