Compact 4 - 7VSF Vertical Radiator: Traffic White (RAL 9016) 700mm H x 200mm L - Compact-4-7vSF200W-White-Lifestyle-01.jpg

Compact 4 - 7VSF Vertical Radiator: Traffic White (RAL 9016) 700mm H x 200mm L

SKU:
7vSF200

Product Description

Product Discontinued: Available Only While Stocks Last

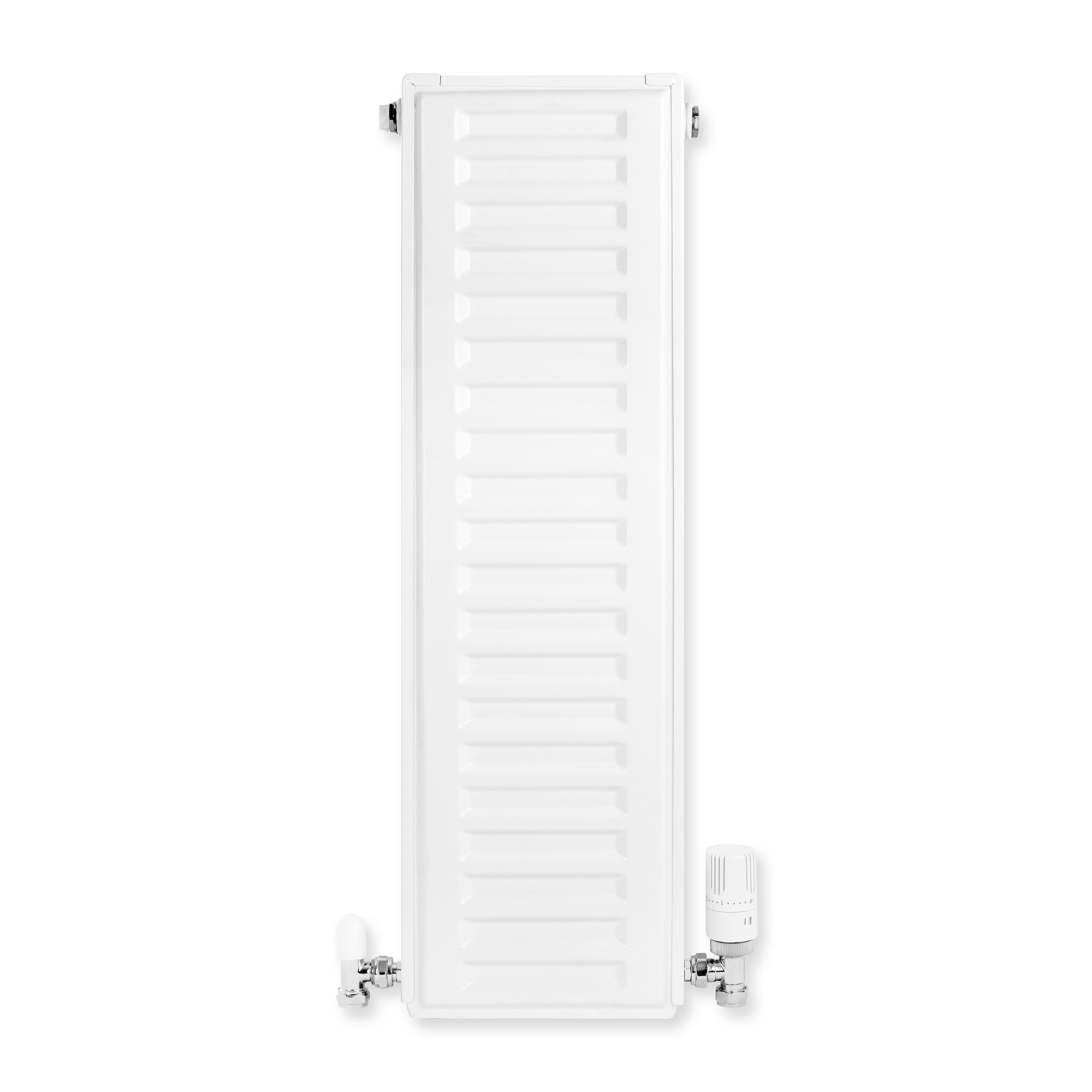

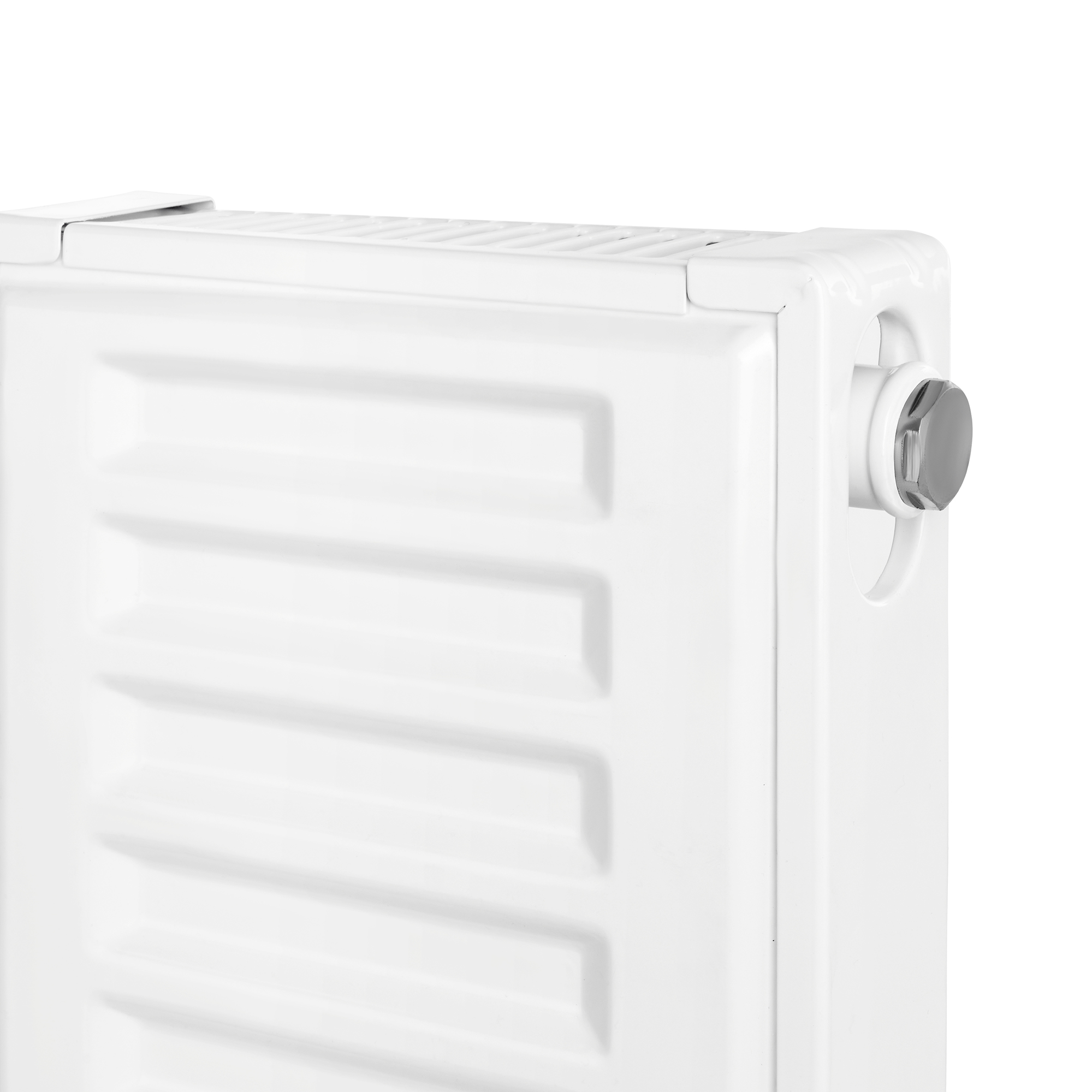

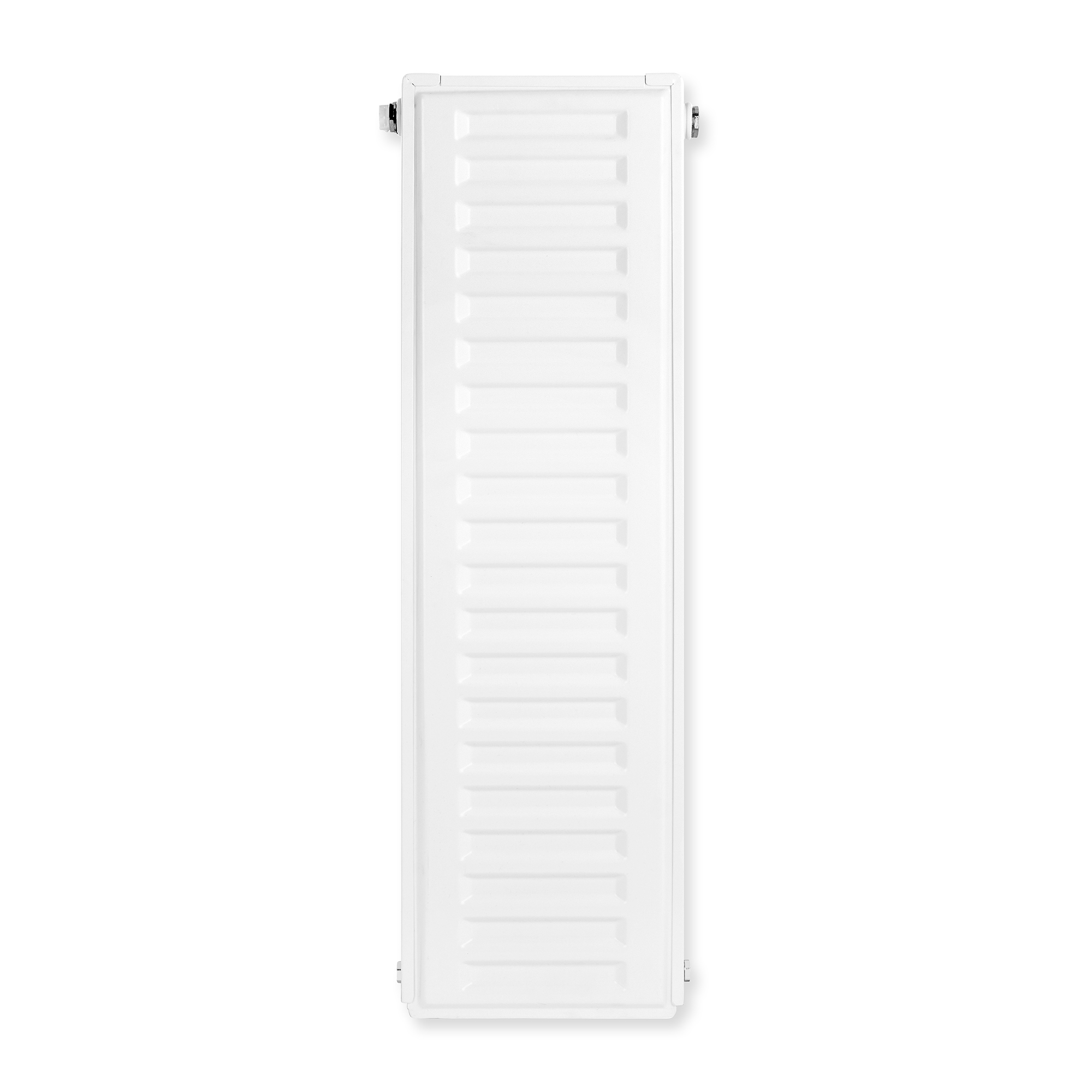

Durable and versatile, Compact 4 radiators are a cost-effective, rapid heating solution for homes and working environments. The Compact 4 7VSF Vertical is a 700mm high, single panel, single convector option to fit narrow wall spaces. Four taps.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 700mm H x 200mm L x 57mm D
  • Heat Output at ΔT 50º C : 672 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Single Panel / Single Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    700
    Length (mm):
    200
    Depth (mm):
    57
    Net Product Weight (kg):
    3.72
    Orientation/Mounting Position:
    Vertical
    Pipes/Sections:
    6
    Towel Gaps:
    N/A
    Wall to Face (mm):
    73 or 79
    Pipe Centres (mm):
    E2: 294 / E3: 650
    Wall to Pipe Centres (mm):
    37 or 59
    Bracket Centres - Horizontal (mm):
    44
    Bracket Centres - Vertical (mm):
    585
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    672
    Heat Output Group (BTU):
    501 – 1000 BTU
    Heat Output (W):
    197
    Heat Output Group (W):
    1 – 500 Watts
    Water Content (L):
    1.72
