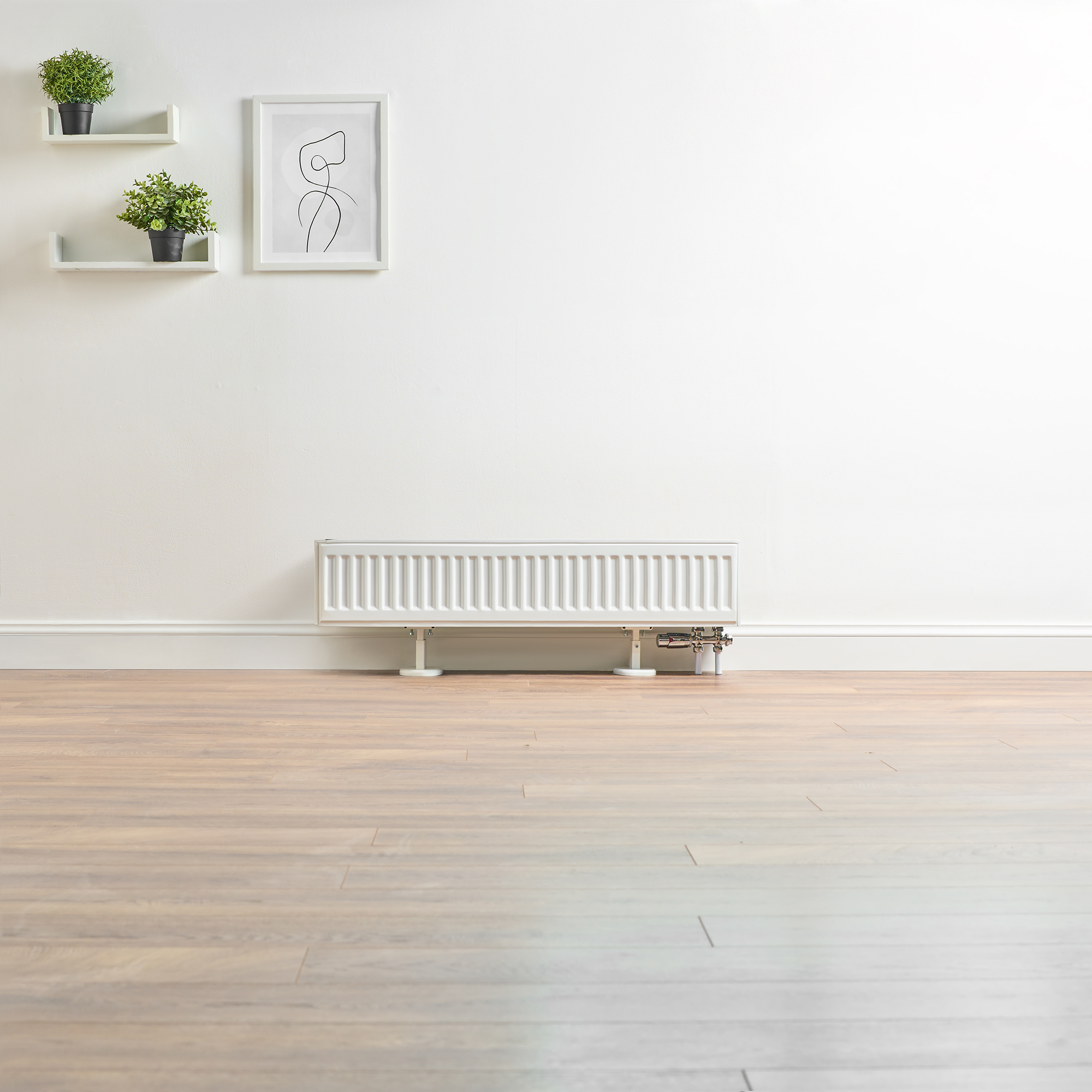

Compact 4 - 2QS Horizontal Radiator: Traffic White (RAL 9016) 200mm H x 1000mm L - Compact-6-2QS1000W-White-Lifestyle-01.jpg

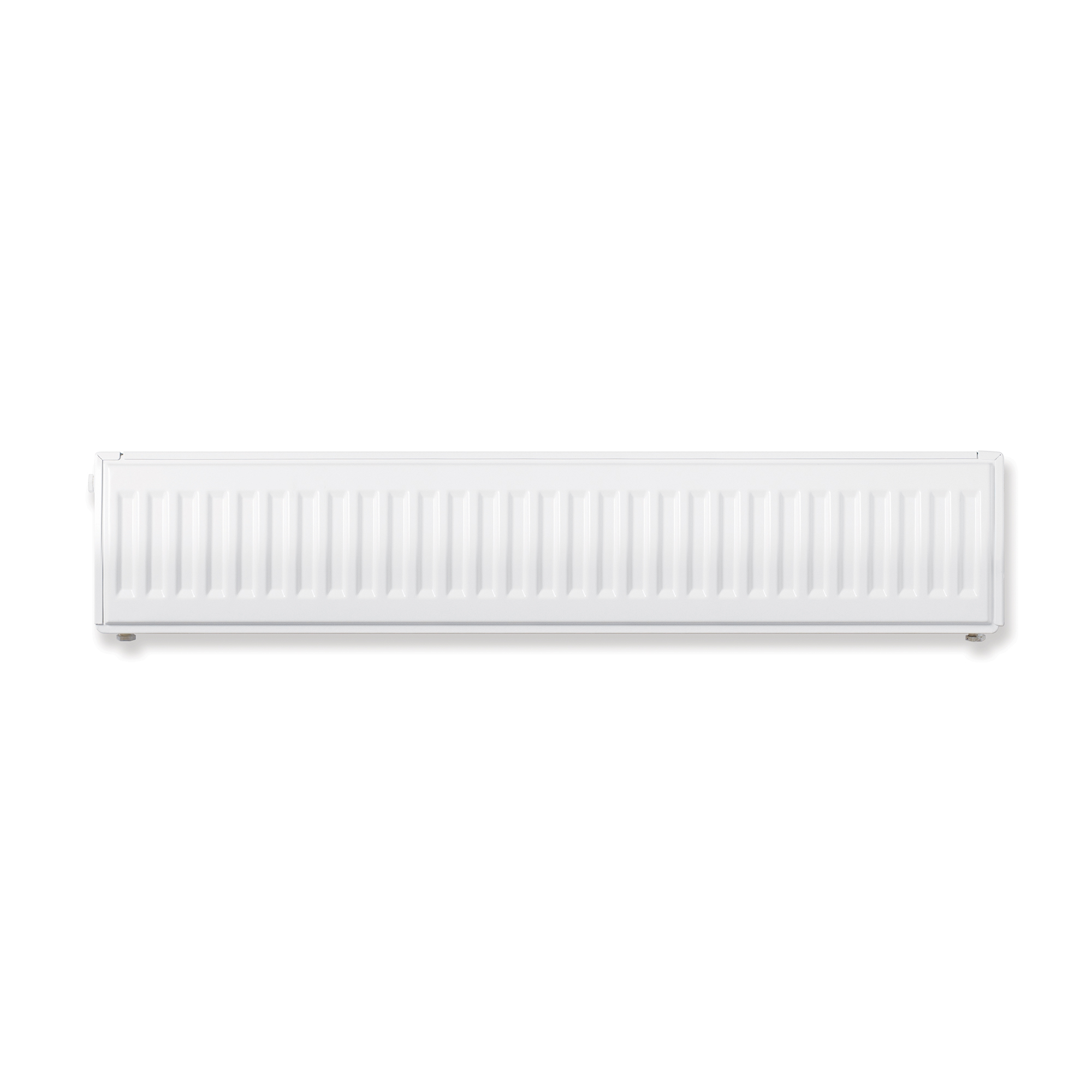

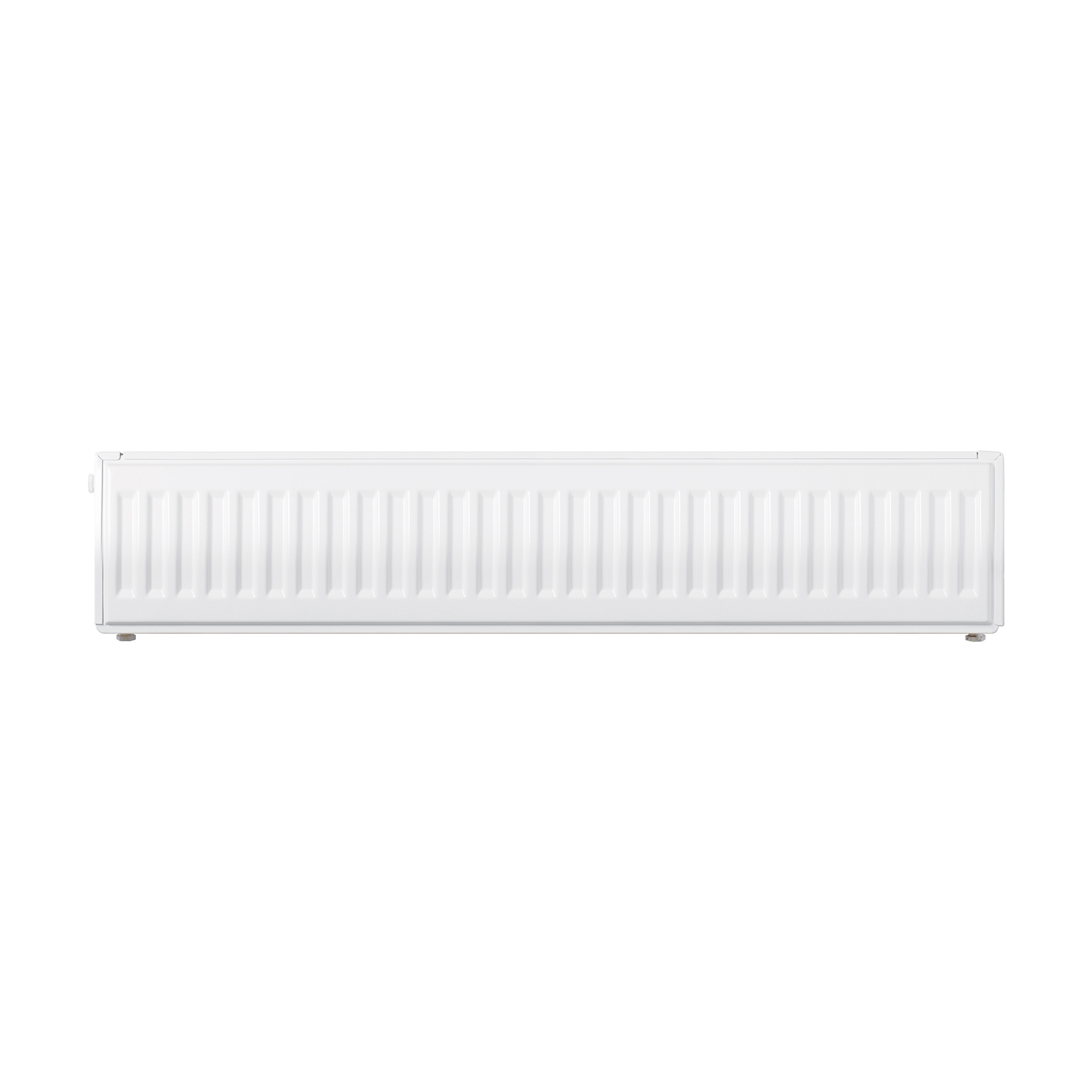

Compact 4 - 2QS Horizontal Radiator: Traffic White (RAL 9016) 200mm H x 1000mm L

SKU:
2QS1000

Product Description

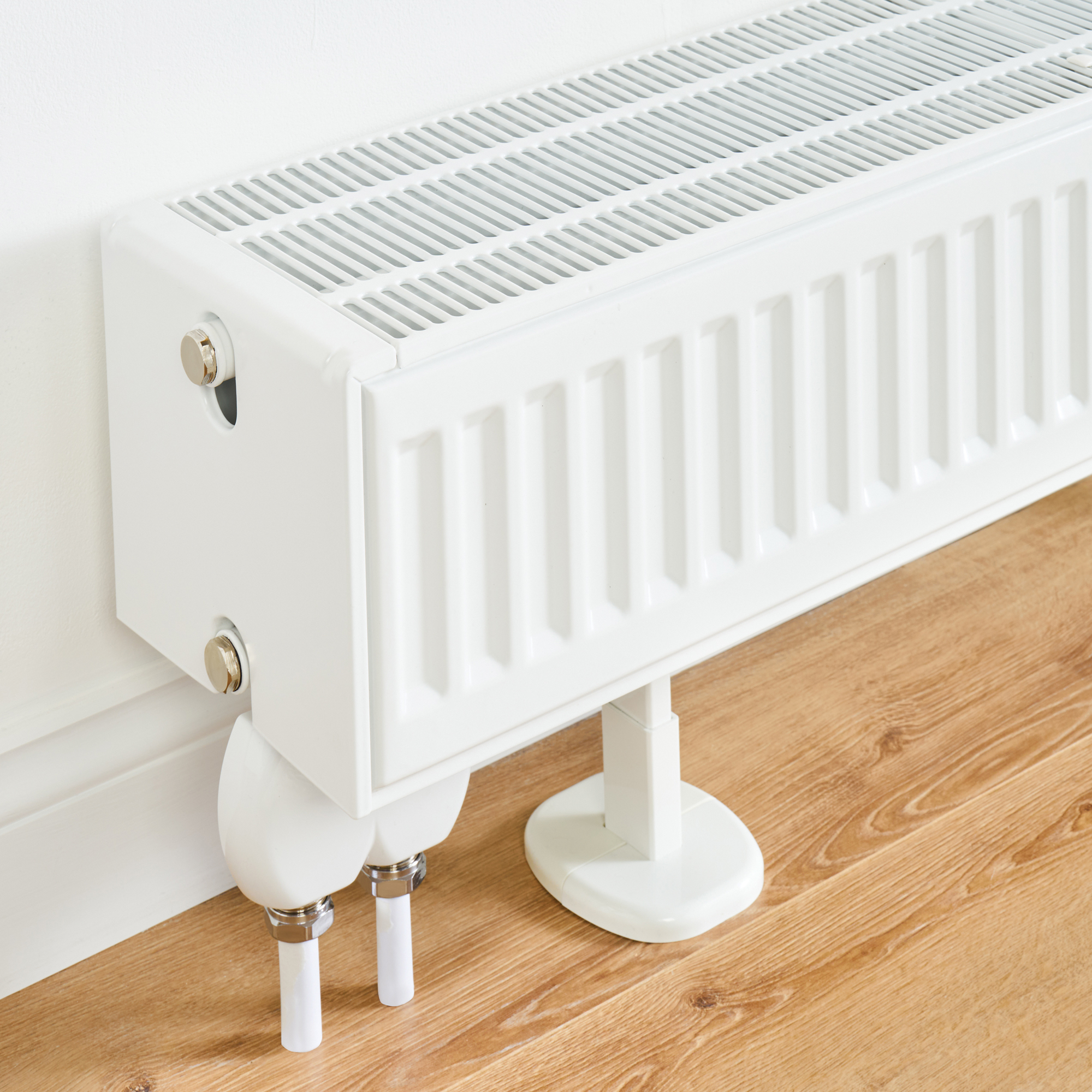

Durable and versatile, Compact 6 radiators are a cost-effective, rapid heating solution for homes and working environments. The Compact 6 2QS is a 200mm high, quadruple panel, quadruple convector option ideal for lower temperature heating systems such as heat pumps. Six taps, including the twin tap of 50mm centre-to-centre on the bottom corner. (Floor mounted only; floor brackets available separately.)
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 200mm H x 1000mm L x 230mm D
  • Heat Output at ΔT 50º C : 4528 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Quadruple Panel / Quadruple Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    200
    Length (mm):
    1000
    Depth (mm):
    230
    Net Product Weight (kg):
    21.66
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    30
    Towel Gaps:
    N/A
    Wall to Face (mm):
    ≥ 243
    Pipe Centres (mm):
    E1: 50 / E2: 1094 / E3: 150
    Wall to Pipe Centres (mm):
    ≥ 134
    Bracket Centres - Horizontal (mm):
    0
    Bracket Centres - Vertical (mm):
    0
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    4528
    Heat Output Group (BTU):
    4501 – 5000 BTU
    Heat Output (W):
    1327
    Heat Output Group (W):
    1001 – 1500 Watts
    Water Content (L):
    5.3
