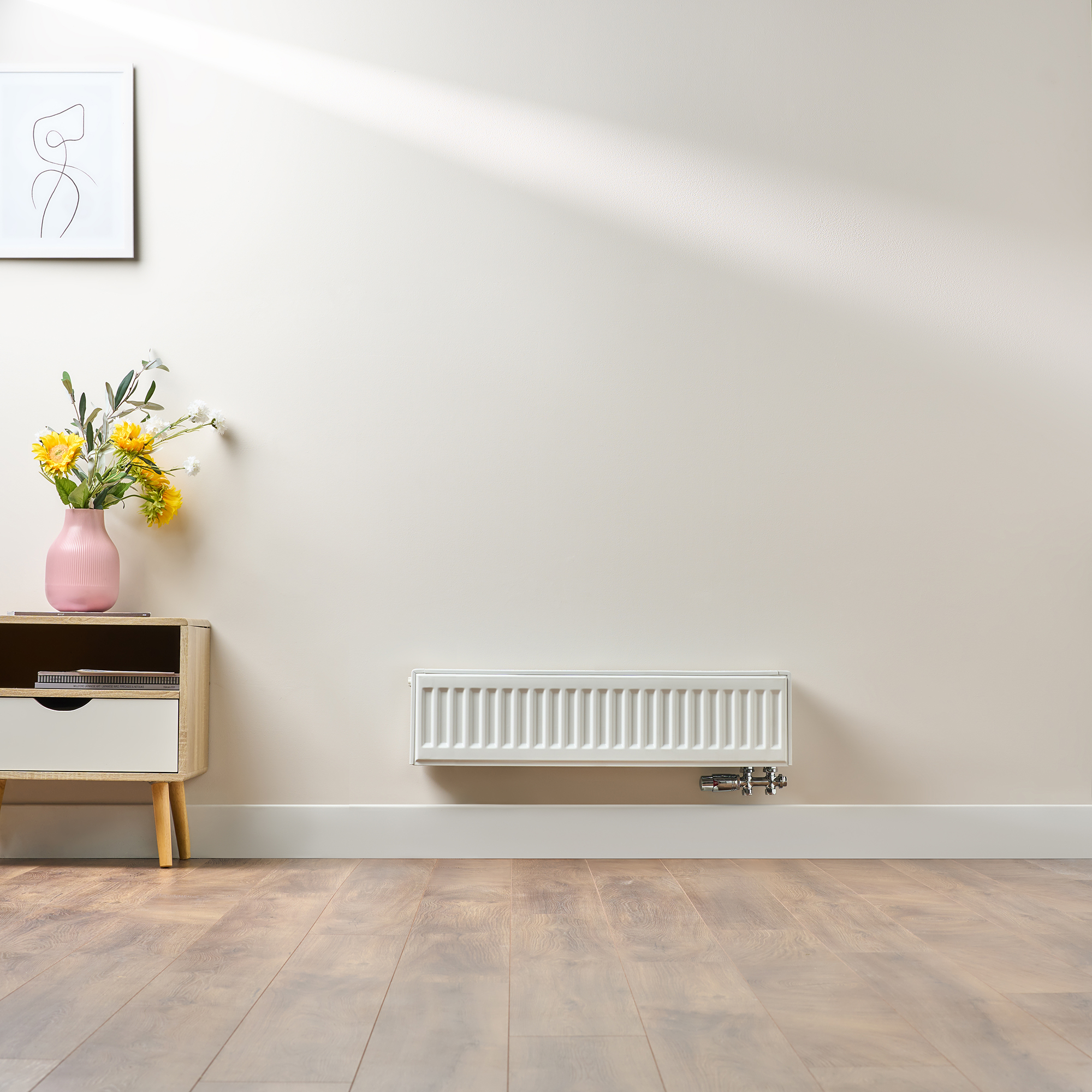

Compact 4 - 2TS Horizontal Radiator: Traffic White (RAL 9016) 200mm H x 800mm L - Compact-6-2TS800W-White-Lifestyle-01.jpg

Compact 4 - 2TS Horizontal Radiator: Traffic White (RAL 9016) 200mm H x 800mm L

SKU:
2TS800

Product Description


Durable and versatile, Compact 6 radiators are a cost-effective, rapid heating solution for homes and working environments. The Compact 6 2TS is a 200mm high, triple panel, triple convector option ideal for lower temperature heating systems such as heat pumps. Six taps, including the twin tap of 50mm centre-to-centre on the bottom right corner.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 200mm H x 800mm L x 160mm D
  • Heat Output at ΔT 50º C : 2648 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Triple Panel / Triple Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    200
    Length (mm):
    800
    Depth (mm):
    160
    Net Product Weight (kg):
    11.24
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    24
    Towel Gaps:
    N/A
    Wall to Face (mm):
    182 or 204
    Pipe Centres (mm):
    E1: 50 / E2: 894 / E3: 150
    Wall to Pipe Centres (mm):
    74 or 96
    Bracket Centres - Horizontal (mm):
    555
    Bracket Centres - Vertical (mm):
    75
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    2648
    Heat Output Group (BTU):
    2501 – 3000 BTU
    Heat Output (W):
    776
    Heat Output Group (W):
    501 – 1000 Watts
    Water Content (L):
    3.2
