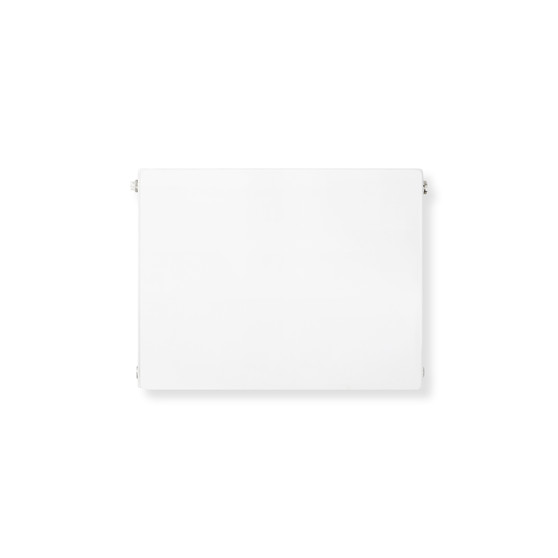

Planal PSF Radiator: for Hampton Towel Rail Traffic White (RAL 9016) 400mm H x 509mm L - Planal-Horizontal-4PSF500W-White-Cutout-01.jpg

Planal PSF Radiator: for Hampton Towel Rail Traffic White (RAL 9016) 400mm H x 509mm L

SKU:
4PSF500

Product Description

Made to Order: please allow up to 12 weeks for delivery


Smooth heating: The ultimate, flat-fronted radiators with minimalist style, ideal for your modern living room, bedroom or office. The Planal PSF is a single panel, single convector, horizontal radiator specifically for use with Hampton Towel Rails. Four taps.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 400mm H x 509mm L x 61mm D
  • Heat Output at ΔT 50º C : 1027 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Single Panel / Single Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    Yes
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    400
    Length (mm):
    509
    Depth (mm):
    61
    Net Product Weight (kg):
    7.66
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    15
    Towel Gaps:
    N/A
    Wall to Face (mm):
    73 / 95
    Pipe Centres (mm):
    E2: 594 / E3: 350
    Wall to Pipe Centres (mm):
    36 / 58
    Bracket Centres - Horizontal (mm):
    (2 brackets) F0: 276
    Bracket Centres - Vertical (mm):
    (2 brackets) I0: 285
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    1027
    Heat Output Group (BTU):
    1001 – 1500 BTU
    Heat Output (W):
    301
    Heat Output Group (W):
    1 – 500 Watts
    Water Content (L):
    1.175
