For prices call us on 01908 272444 or contact your sales representative.



Planal 3PSS Horizontal Radiator: Traffic White (RAL 9016) 300mm H x 1209mm L - Planal-Horizontal-3PSS1200W-White-Lifestyle-01.jpg

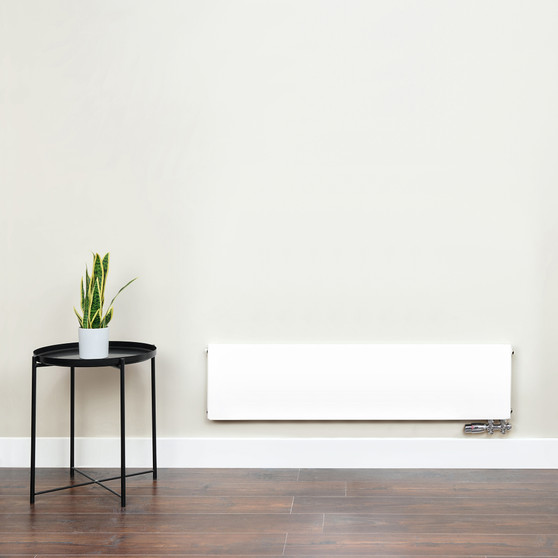

Planal 3PSS Horizontal Radiator: Traffic White (RAL 9016) 300mm H x 1209mm L

SKU:
3PSS1200

Product Description


Smooth heating: The ultimate, flat-fronted radiators with minimalist style, ideal for your modern living room, bedroom or office. The Planal 3PSS Single is a 300mm high, single panel, single convector, horizontal radiator. Six taps, including underside twin tap.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 300mm H x 1209mm L x 61mm D
  • Heat Output at ΔT 50º C : 1945 BTU
  • Max Working Temperature : 95º C / Working Pressure: 10 Bar
  • Warranty : 10 Years

    • Other Details

    Warranty:
    10 Years
    Packaging Description:
    Plastic shrink wrap with cardboard end protection
    Type:
    Single Panel / Single Convector
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    Yes
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    300
    Length (mm):
    1209
    Depth (mm):
    61
    Net Product Weight (kg):
    14.03
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    36
    Towel Gaps:
    N/A
    Wall to Face (mm):
    73 / 84
    Pipe Centres (mm):
    E0: 50 / E2: 1294 / E3: 250
    Wall to Pipe Centres (mm):
    36 / 47
    Bracket Centres - Horizontal (mm):
    (2 brackets) F0: 900
    Bracket Centres - Vertical (mm):
    (2 brackets) I0: 185
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    10
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    1945
    Heat Output Group (BTU):
    1501 – 2000 BTU
    Heat Output (W):
    570
    Heat Output Group (W):
    501 – 1000 Watts
    Water Content (L):
    2.256
