2 Column 750 Horizontal Radiator: Traffic White (RAL 9016) 750mm H x 997mm L - 2-Column-C2070922W-White-Cutout-01.jpg

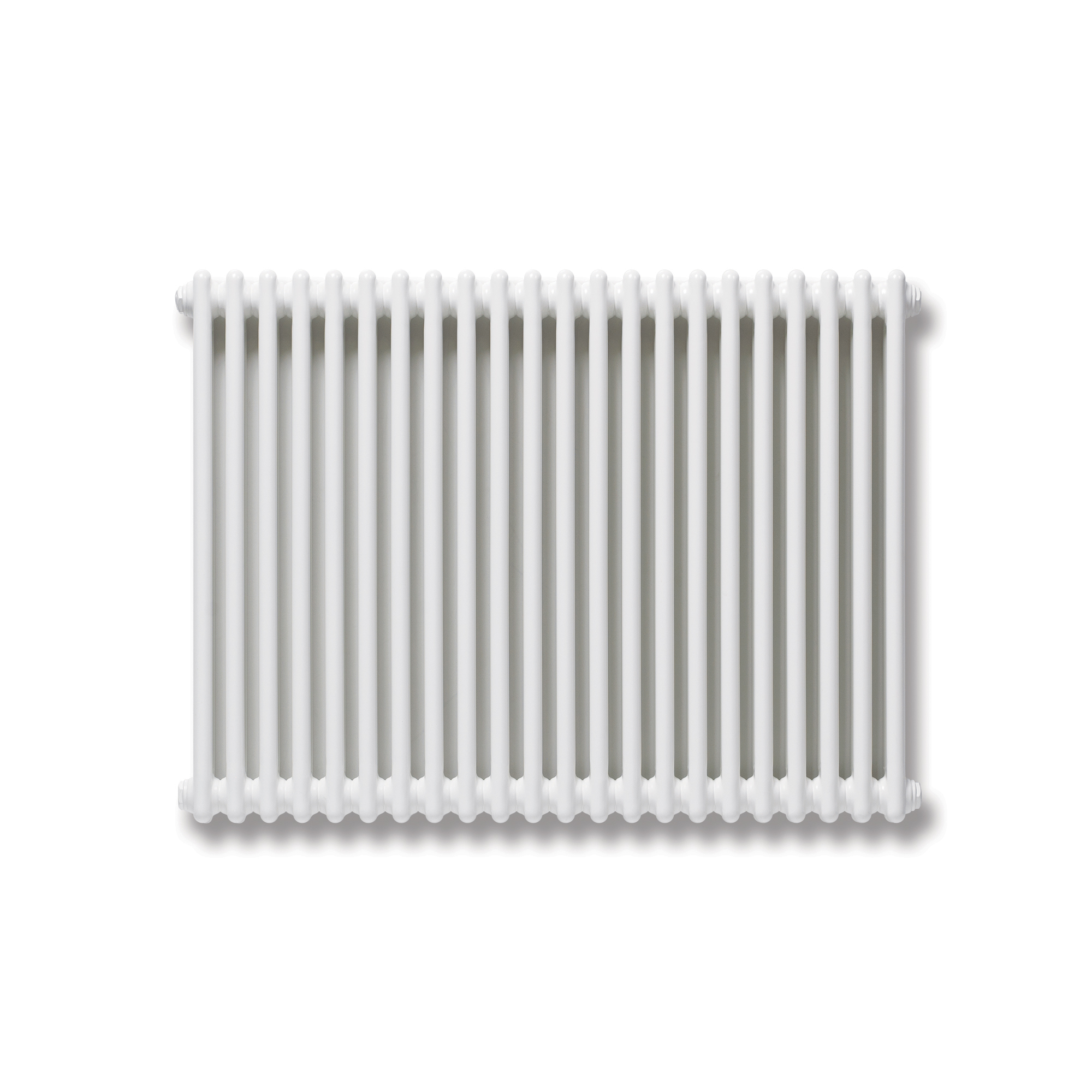

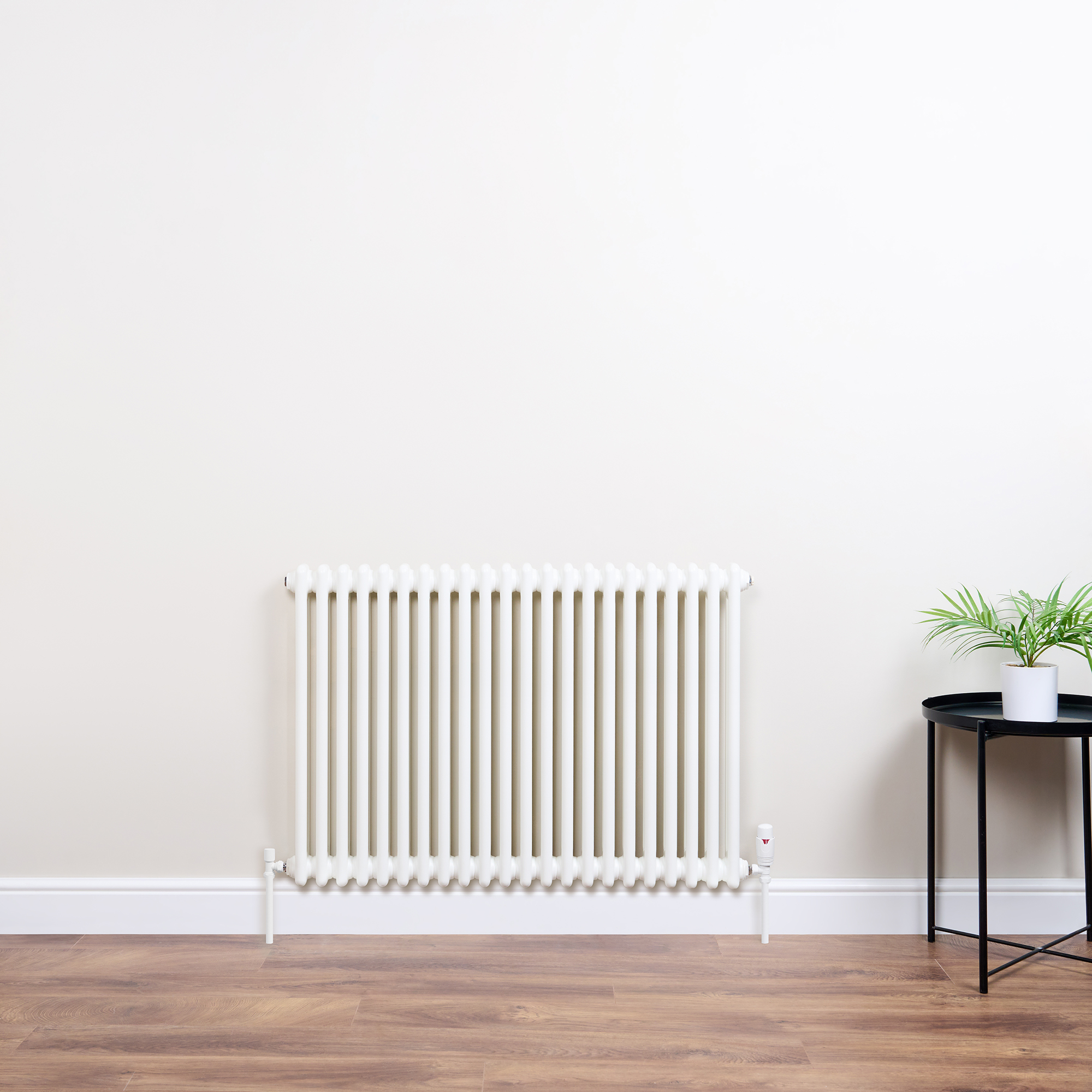

2 Column 750 Horizontal Radiator: Traffic White (RAL 9016) 750mm H x 997mm L

SKU:
C2070922-W

Product Description


Effective Heating: Efficient, reliable and smart enough to look good at home or work, this practical design fits seamlessly in any room. The 2 Column 750 is a 750mm high, mild steel, columnar radiator that brings traditional style up-to-date. (Feet/floor brackets available separately.)
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 750mm H x 997mm L x 69mm D
  • Heat Output at ΔT 50º C : 4132 BTU
  • Max Working Temperature : 95º C / Working Pressure: 6 Bar
  • Warranty : 5 Years

    • Other Details

    Warranty:
    5 Years
    Packaging Description:
    Plastic wrap with cardboard end protection and inner bubble wrap
    Type:
    Double
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    Yes
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    750
    Length (mm):
    997
    Depth (mm):
    69
    Net Product Weight (kg):
    32.99999999999999
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    22
    Towel Gaps:
    N/A
    Wall to Face (mm):
    93
    Pipe Centres (mm):
    E2: 1085 / E3: 690
    Wall to Pipe Centres (mm):
    58
    Bracket Centres - Horizontal (mm):
    (6 brackets) F0 = 842 / F1 = 399 / F2 = 443
    Bracket Centres - Vertical (mm):
    690
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    6
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    4132
    Heat Output Group (BTU):
    4001 – 4500 BTU
    Heat Output (W):
    1210
    Heat Output Group (W):
    1001 – 1500 Watts
    Water Content (L):
    17.417
