For prices call us on 01908 272444 or contact your sales representative.

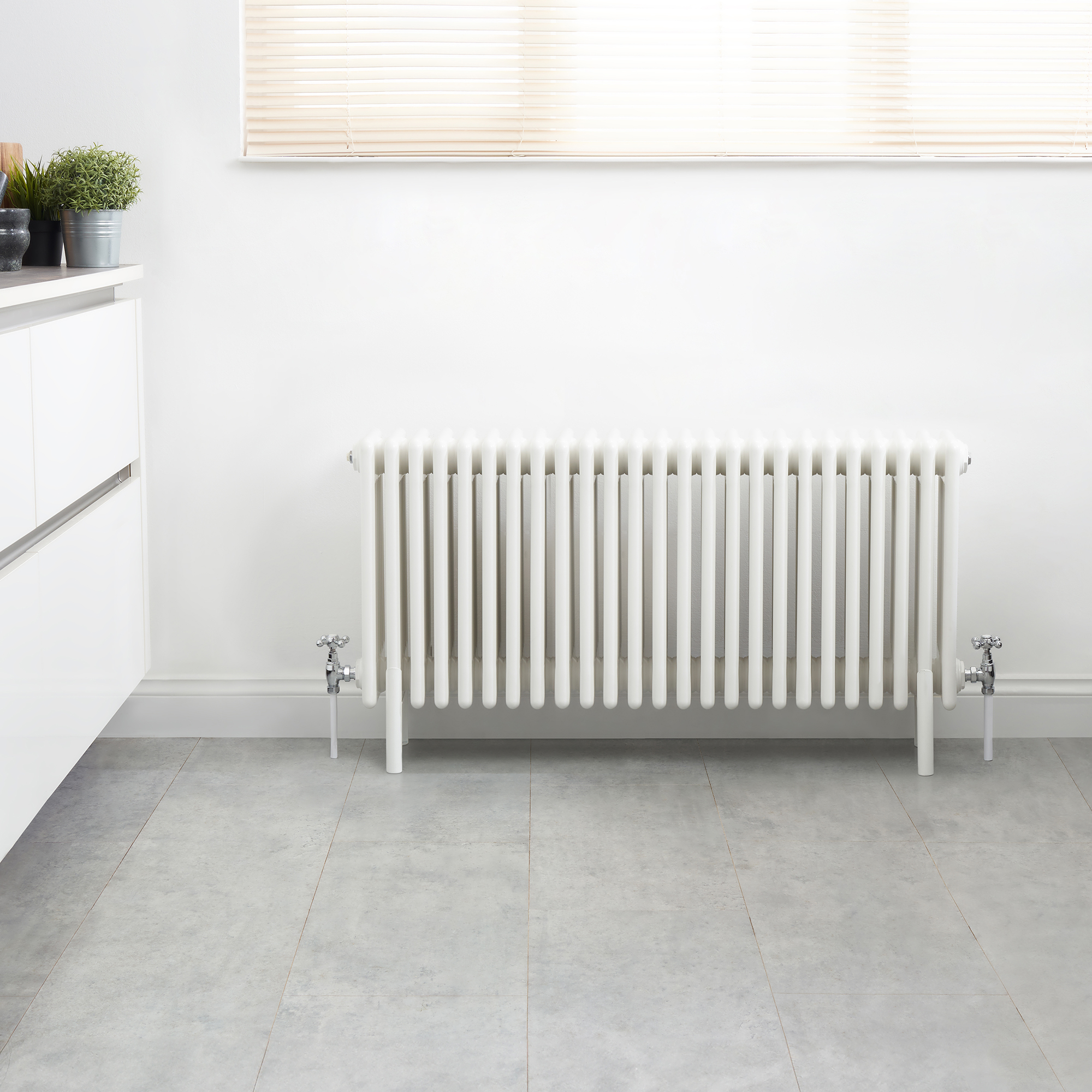

6 Column 500 Horizontal Radiator: Traffic White (RAL 9016) 500mm H x 1130mm L - 6-Column-C6051125W-White-Lifestyle-01.jpg

6 Column 500 Horizontal Radiator: Traffic White (RAL 9016) 500mm H x 1130mm L

SKU:
C6051225-W

Product Description


Warmth with charm: We're getting serious now, with this chunky, charming radiator that's king of the heaters and prince of the period home. The 6 Column 500 is a 500mm high, mild steel, columnar radiator that brings traditional style up-to-date. (Floor mounting only. Feet/floor brackets available separately.)
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 500mm H x 1130mm L x 220mm D
  • Heat Output at ΔT 50º C : 9306 BTU
  • Max Working Temperature : 95º C / Working Pressure: 6 Bar
  • Warranty : 5 Years

    • Other Details

    Warranty:
    5 Years
    Packaging Description:
    Plastic wrap with cardboard end protection and inner bubble wrap
    Type:
    Six
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    Yes
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    500
    Length (mm):
    1130
    Depth (mm):
    220
    Net Product Weight (kg):
    73.9
    Orientation/Mounting Position:
    Horizontal
    Pipes/Sections:
    25
    Towel Gaps:
    N/A
    Wall to Face (mm):
    250
    Pipe Centres (mm):
    E2:1218 / E3: 413
    Wall to Pipe Centres (mm):
    140
    Bracket Centres - Horizontal (mm):
    (6 brackets) F0 = 975 / F1 = 487
    Bracket Centres - Vertical (mm):
    413
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    6
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    9306
    Heat Output Group (BTU):
    9001 – 9500 BTU
    Heat Output (W):
    2725
    Heat Output Group (W):
    2501 – 3000 Watts
    Water Content (L):
    40.313
