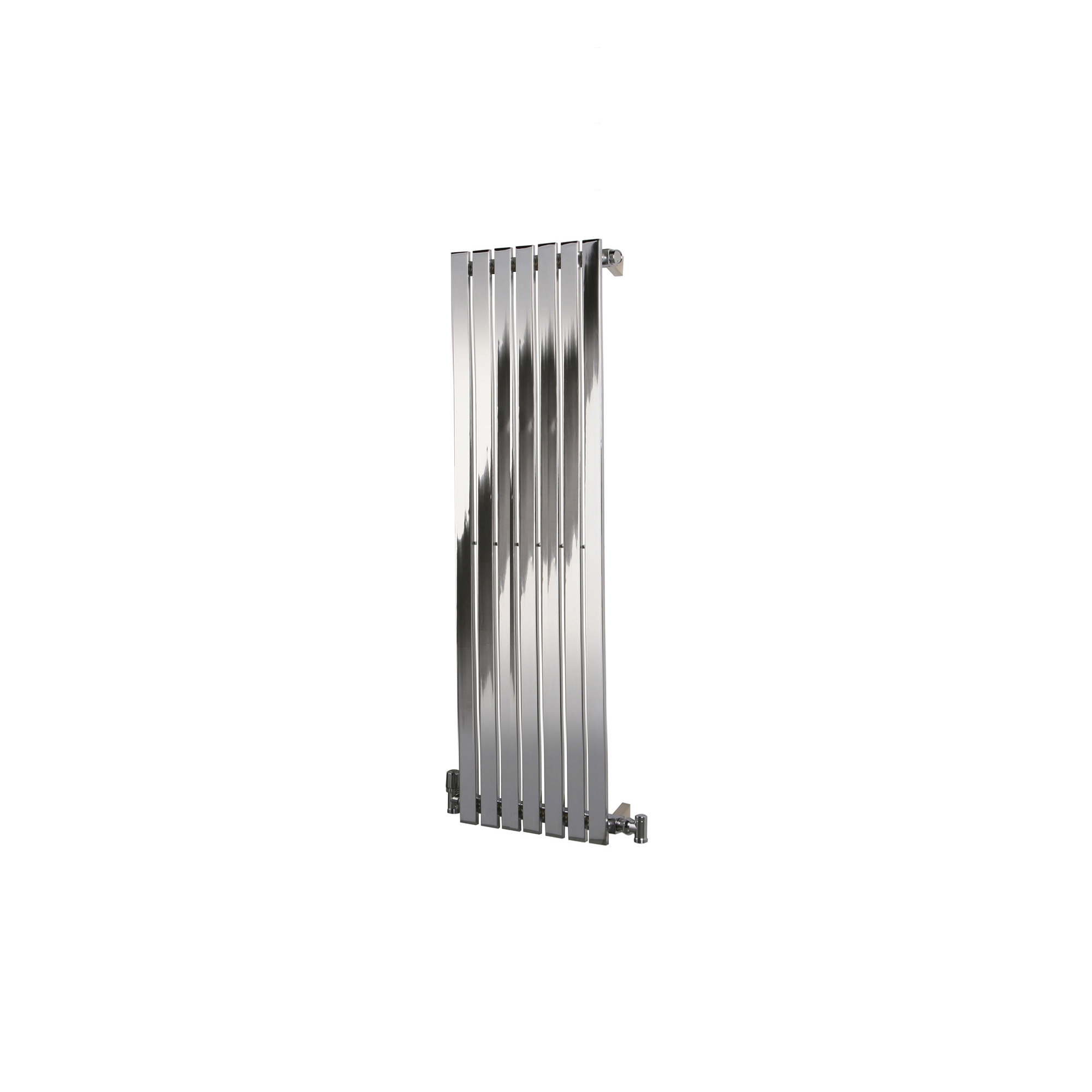

Linear Chrome 1190 Vertical Radiator 1190mm H x 358mm L

SKU:
7LC12

Product Description

Product Discontinued: Available Only While Stocks Last


Feel the heat: A sleek, shimmering design that stands tall to reflect light and radiate heat just the way you want it to. The Linear Chrome 1200 is a mild steel, 1200mm high vertical radiator with flat tubes in a mirror chrome finish.
  • Material / Finish : Mild Steel / Chrome
  • Dimensions : 1190mm H x 358mm L x 60mm D
  • Heat Output at ΔT 50º C : 1777 BTU
  • Max Working Temperature : 95º C / Working Pressure: 6 Bar
  • Warranty : 5 Years

    • Other Details

    Warranty:
    5 Years
    Packaging Description:
    Cardboard Box With Plastic Inner Protection
    Type:
    Single
    Material:
    Mild Steel
    Product Finish:
    Chrome
    Colour:
    Chrome
    Paint Finish:
    N/A
    Custom RAL Colour Available:
    No
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    1190
    Length (mm):
    358
    Depth (mm):
    60
    Orientation/Mounting Position:
    Vertical
    Pipes/Sections:
    7
    Towel Gaps:
    N/A
    Pipe Centres (mm):
    E2: 448
    Wall to Pipe Centres (mm):
    45 - 55
    Bracket Centres - Horizontal (mm):
    (4 brackets) F0: 212
    Bracket Centres - Vertical (mm):
    IO: 1020
    Fuel Type Available:
    Hot Water
    Maximum Working Pressure (Bar):
    6
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    1777
    Heat Output Group (BTU):
    1501 – 2000 BTU
    Heat Output (W):
    521
    Heat Output Group (W):
    501 – 1000 Watts
    Water Content (L):
    3.2
