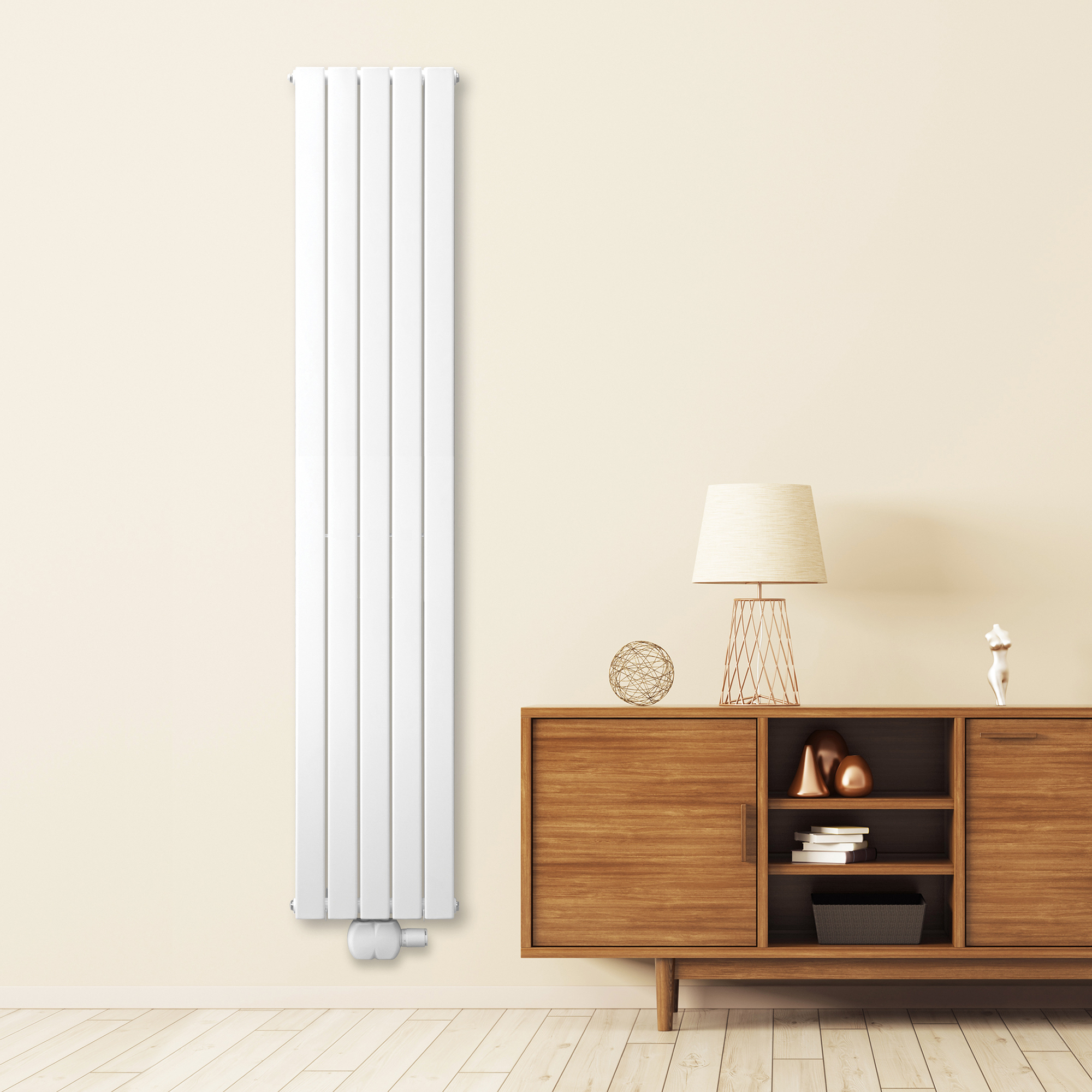

Tian D2000 Vertical Radiator: Traffic White (RAL 9016) 2013mm H x 390mm L

SKU:
ND2005W

Product Description


Timeless elegance: Modern design meets timeless elegance in this versatile radiator with an unusal design and high heat output. The Tian D2000 is a mild steel, 2000mm high vertical radiator with a double set of wide, flat tubes.
  • Material / Finish : Mild Steel / Painted in Semigloss Traffic White (RAL 9016)
  • Dimensions : 2013mm H x 390mm L x 61mm D
  • Heat Output at ΔT 50º C : 4316 BTU
  • Max Working Temperature : 95º C / Working Pressure: 6 Bar
  • Warranty : 5 Years

    • Other Details

    Warranty:
    5 Years
    Packaging Description:
    Cardboard Box With Plastic Inner Protection
    Type:
    Double
    Material:
    Mild Steel
    Product Finish:
    Painted
    Colour:
    Traffic White (RAL 9016)
    Paint Finish:
    Semigloss
    Custom RAL Colour Available:
    Yes
    Custom Micrograin Texture Available:
    Yes
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    2013
    Length (mm):
    390
    Depth (mm):
    61
    Net Product Weight (kg):
    36.6
    Orientation/Mounting Position:
    Vertical
    Pipes/Sections:
    5
    Towel Gaps:
    N/A
    Wall to Face (mm):
    98
    Pipe Centres (mm):
    E0: 50 / E2: 476
    Wall to Pipe Centres (mm):
    66
    Bracket Centres - Horizontal (mm):
    (4 brackets) F0: 189
    Bracket Centres - Vertical (mm):
    I': 1989
    Fuel Type Available:
    Hot Water, Dual Fuel
    Maximum Working Pressure (Bar):
    6
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    4316
    Heat Output Group (BTU):
    4001 – 4500 BTU
    Heat Output (W):
    1265
    Heat Output Group (W):
    1001 – 1500 Watts
    Water Content (L):
    19.538
