For prices call us on 01908 272444 or contact your sales representative.

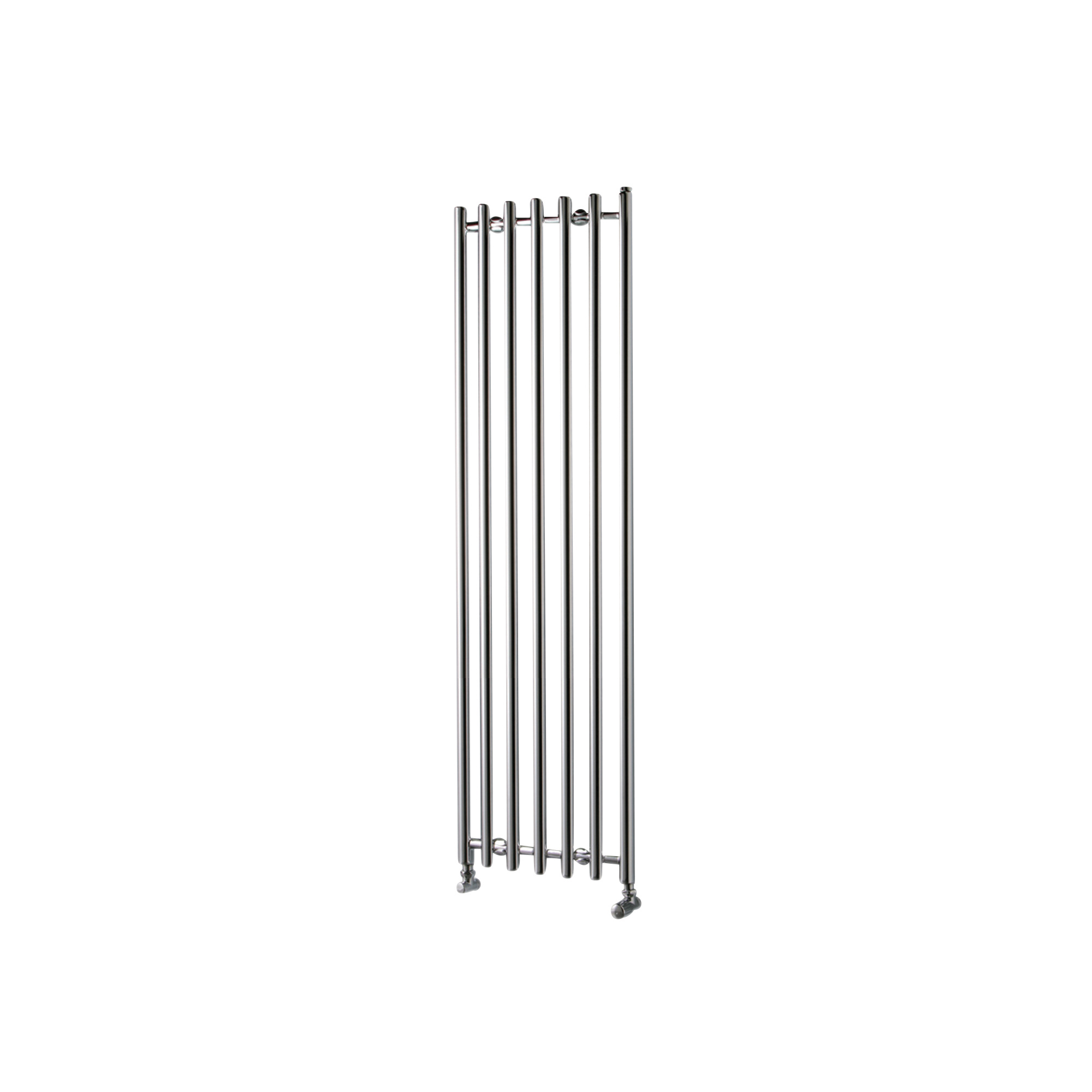

Trojan. Chrome Vertical Radiator: 1300mm H x 390mm L

SKU:
4TC13

Product Description

Product Discontinued: Available Only While Stocks Last


Create a comfort zone: This ultra-modern radiator combines a svelte, arched profile with D-shaped tubes for top-quality heat performance and elegance that will look amazing anywhere. The Trojan Chrome is a mild-steel vertical radiator in two heights and mirror chrome finish.
  • Material / Finish : Mild Steel / Chrome
  • Dimensions : 1300mm H x 390mm L x 60mm D
  • Heat Output at ΔT 50º C : 3173 BTU
  • Max Working Temperature : 95º C / Working Pressure: 6 Bar
  • Warranty : 5 Years

    • Other Details

    Warranty:
    5 Years
    Packaging Description:
    Cardboard Box With Plastic Inner Protection
    Type:
    Single
    Material:
    Mild Steel
    Product Finish:
    Chrome
    Colour:
    Chrome
    Paint Finish:
    N/A
    Custom RAL Colour Available:
    No
    Custom Micrograin Texture Available:
    No
    Custom Crocodile Texture Available:
    No
    Custom Wood Effect Available:
    No
    Custom PVD Finish Available:
    No
    Custom Anodised Finish Available:
    No
    Certifications:
    CE, ISO 9001, UKCA
    Standards:
    BS EN 442-1:2014
    Height (mm):
    1300
    Length (mm):
    390
    Depth (mm):
    60
    Net Product Weight (kg):
    13.89
    Orientation/Mounting Position:
    Vertical
    Pipes/Sections:
    7
    Towel Gaps:
    N/A
    Wall to Face (mm):
    85 - 100
    Pipe Centres (mm):
    E1: 360
    Wall to Pipe Centres (mm):
    45 - 60
    Bracket Centres - Horizontal (mm):
    (4 brackets) F0: 240
    Bracket Centres - Vertical (mm):
    I0: 995
    Fuel Type Available:
    Electric, Hot Water, Dual Fuel
    Maximum Working Pressure (Bar):
    6
    Maximum Working Temperature (ºC):
    95
    System:
    Closed
    Heat Output (BTU):
    3173
    Heat Output Group (BTU):
    3001 – 3500 BTU
    Heat Output (W):
    930
    Heat Output Group (W):
    501 – 1000 Watts
    Water Content (L):
    8.455
